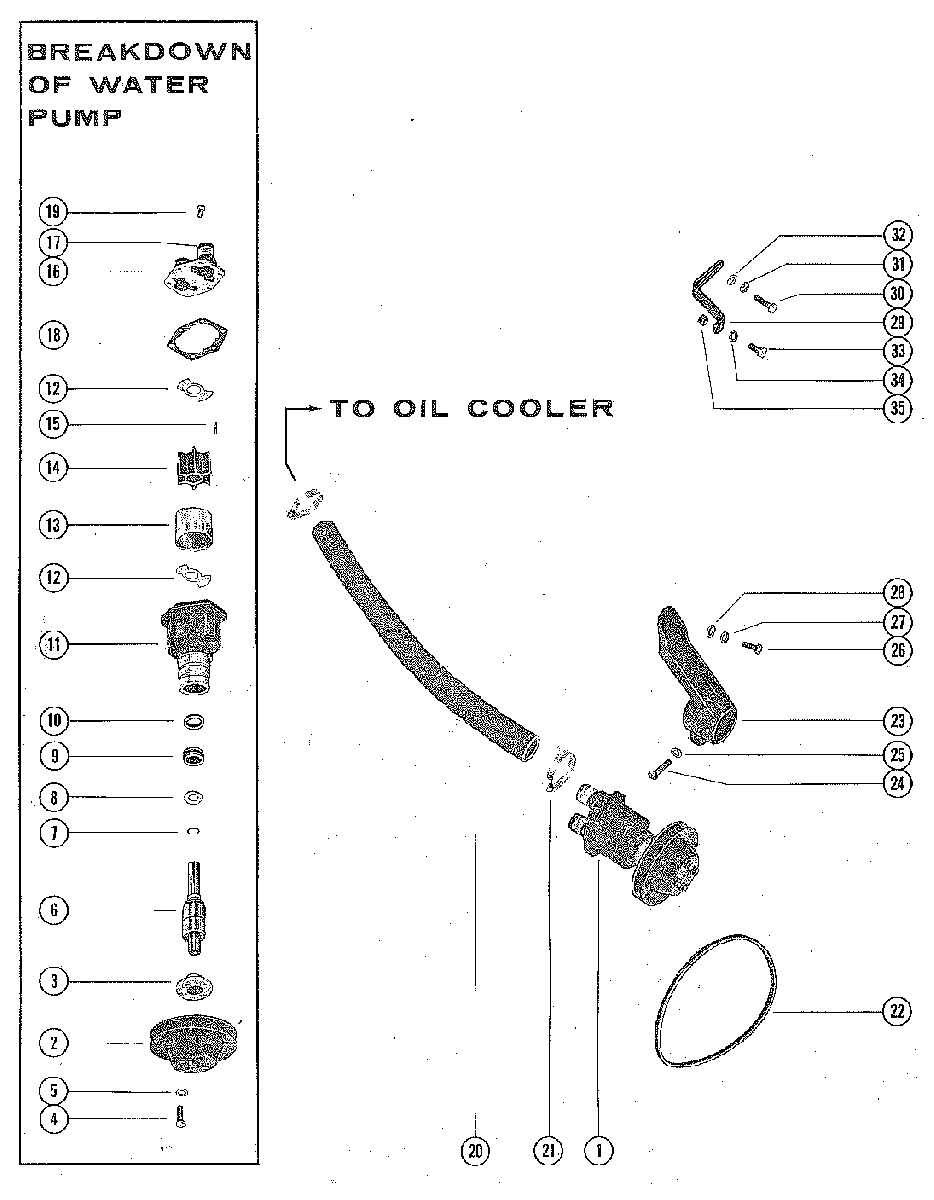

WATER PUMP ASSEMBLY, COMPLETE для Mercruiser - 250 MIE GM 327 V-8 1968-1969 2314301 THRU 2639854
-
№АртикулНазвание
-
146-63450A3 WATER PUMP ASSEMBLY, COMPLETEWATER PUMP ASSEMBLY, COMPLETE
-
252822 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
347530 HUB, WATER PUMP PULLEYHUB, WATER PUMP PULLEY
-
410-47277 SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")SCREW, WATER PUMP PULLEY TO WATER PUMP (3/4")
-
513-39107 LOCKWASHER, WATER PUMP PULLEY SCREWLOCKWASHER, WATER PUMP PULLEY SCREW
-
626-47401 SHAFT AND BEARINGSHAFT AND BEARING
-
753-47657 RING, RETAINING - SHAFT AND BEARINGRING, RETAINING - SHAFT AND BEARING
-
812-47683 WASHER, SHAFT AND BEASRINGWASHER, SHAFT AND BEASRING
-
926-47401 SEAL, MECHANICAL - SHAFT AND BEARINGSEAL, MECHANICAL - SHAFT AND BEARING
-
1026-47531 SEAL, FLOATING - SHAFT AND BEARINGSEAL, FLOATING - SHAFT AND BEARING
-
1146-63450A3 BODY ASSEMBLY, WATER PUMPBODY ASSEMBLY, WATER PUMP
-
1247405 WEAR PLATEWEAR PLATE
-
1347529 INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
1447-47519T IMPELLERIMPELLER
-
1517-47526 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
1693871T COVER ASSEMBLY, WATER PUMPCOVER ASSEMBLY, WATER PUMP
-
1723-47511 SLEEVE, WATER PUMP COVERSLEEVE, WATER PUMP COVER
-
1827-47410 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
1910-28635 SCREW, WATER PUMP COVER TO WATER PUMP BODY (5/8")SCREW, WATER PUMP COVER TO WATER PUMP BODY (5/8")
-
2032-8M0062665 HOSE, WATER PUMP TO OIL COOLER (21 1/2")HOSE, WATER PUMP TO OIL COOLER (21 1/2")
-
2154-815504220 CLAMP, HOSE TO WATER PUMP AND OIL COOLERCLAMP, HOSE TO WATER PUMP AND OIL COOLER
-
2257-48119 BELT, WATER PUMPBELT, WATER PUMP
-
2347488A1 BRACKET, WATER PUMPBRACKET, WATER PUMP
-
2410-34354 SCREW, WATER PUMP BRACKET ATTACHING (1 1/2")SCREW, WATER PUMP BRACKET ATTACHING (1 1/2")
-
2513-35048 LOCKWASHER, WATER PUMP BRACKET SCREWLOCKWASHER, WATER PUMP BRACKET SCREW
-
2610-34353 SCREW, WATER PUMP BRACKET TO ENGINE (1")SCREW, WATER PUMP BRACKET TO ENGINE (1")
-
2713-35048 LOCKWASHER, WATER PUMP BRACKET SCREWLOCKWASHER, WATER PUMP BRACKET SCREW
-
2812-20553 WASHER, WATER PUMP BRACKET SCREWWASHER, WATER PUMP BRACKET SCREW
-
2947544 BRACE, WATER PUMP ADJUSTINGBRACE, WATER PUMP ADJUSTING
-
3010-34353 SCREW, ADJUSTING BRACE TO OIL PAN (1")SCREW, ADJUSTING BRACE TO OIL PAN (1")
-
3113-35048 LOCKWASHER, ADJUSTING BRACE SCREWLOCKWASHER, ADJUSTING BRACE SCREW
-
3212-20553 WASHER, ADJUSTING BRACE SCREWWASHER, ADJUSTING BRACE SCREW
-
3310-35786 SCREW, ADJUSTING BRACE TO BRACKETSCREW, ADJUSTING BRACE TO BRACKET
-
3413-35048 LOCKWASHER, ADJUSTING BRACELOCKWASHER, ADJUSTING BRACE
-
3511-46335 NUT, ADJUSTING BRACE SCREWNUT, ADJUSTING BRACE SCREW
