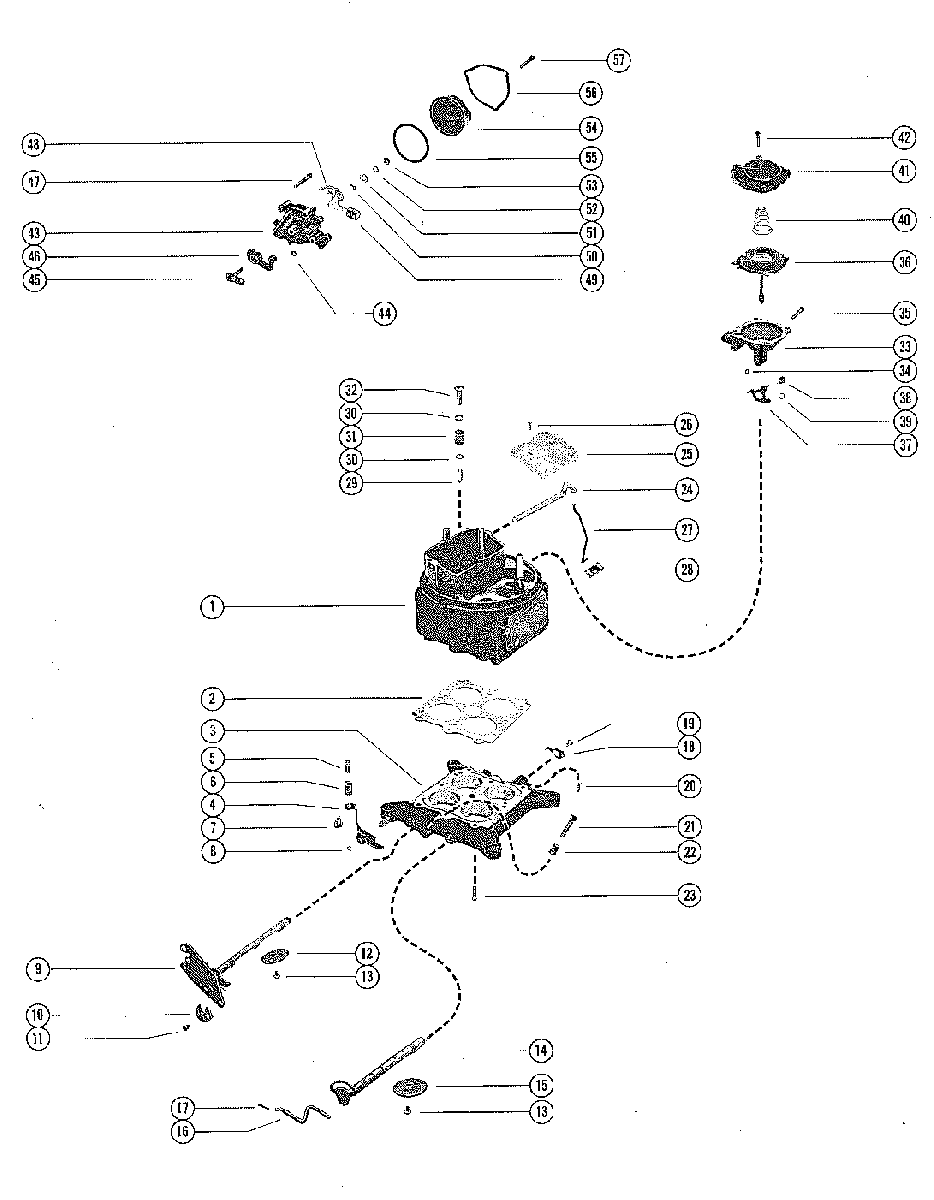

CARBURETOR ASSEMBLY (PAGE 1) для Mercruiser - 255 FORD 351 V-8 1973-1974 3258728 THRU 4175499
-
№АртикулНазвание
-
11356-5169 CARBURETOR ASSEMBLY, COMPLETE (SEE NOTE)CARBURETOR ASSEMBLY, COMPLETE (SEE NOTE)
-
290-8M0143356 GASKET, THROTTLE BODYGASKET, THROTTLE BODY
-
31396-5158 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
41396-4155 LDVER, FUEL PUMP ACTUATINGLDVER, FUEL PUMP ACTUATING
-
51396-4133 SCREW, PUMP LEVER ADJUSTINGSCREW, PUMP LEVER ADJUSTING
-
61396-4105 SPRING, PUMP LEVER ADJUSTING SCREWSPRING, PUMP LEVER ADJUSTING SCREW
-
71396-4089 NUT, PUMP LEVER ADJUSTING SCREWNUT, PUMP LEVER ADJUSTING SCREW
-
890-8M0143356 RETAINER, PUMP LEVERRETAINER, PUMP LEVER
-
9N.S.S. ROD, PRIMARY (NOT SOLD SEPARATELY)ROD, PRIMARY (NOT SOLD SEPARATELY)
-
101396-5166 CAM, FUEL PUMPCAM, FUEL PUMP
-
111396-4135 SCREW, PUMP CAM ATTACHINGSCREW, PUMP CAM ATTACHING
-
121396-5157 VALVE, PRIMARY THROTTLEVALVE, PRIMARY THROTTLE
-
1390-8M0143356 SCREW, THROTTLE VALVE ATTACHINGSCREW, THROTTLE VALVE ATTACHING
-
14N.S.S. ROD, SECONDARY (NOT SOLD SEPARATELY)ROD, SECONDARY (NOT SOLD SEPARATELY)
-
151396-5156 VALVE, SECONDARY THROTTLEVALVE, SECONDARY THROTTLE
-
161396-4146 ROD, SECONDARY CONNECTINGROD, SECONDARY CONNECTING
-
1790-8M0143356 COTTER PIN, CONNECTING RODCOTTER PIN, CONNECTING ROD
-
181396-4144 LEVER, SECONDARY STOPLEVER, SECONDARY STOP
-
191396-4131 SCREW, SECONDARY STOP LEVER ATTACHINGSCREW, SECONDARY STOP LEVER ATTACHING
-
201396-4127 SCREW, SECONDARY STOPSCREW, SECONDARY STOP
-
211396-4123 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
221396-4102 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
231396-4128 SCREW, THROTTLE BOTY ATTACHINGSCREW, THROTTLE BOTY ATTACHING
-
241396-4643 CHOKE SHAFT AND LEVER ASSEMBLYCHOKE SHAFT AND LEVER ASSEMBLY
-
251396-4116 VALVE, CHOKEVALVE, CHOKE
-
2690-8M0143356 SCREW, CHOKE VALVE TO CHOKE SHAFTSCREW, CHOKE VALVE TO CHOKE SHAFT
-
271396-4145 LINK, CHOKELINK, CHOKE
-
2890-8M0143356 SEAL, CHOKE LINKSEAL, CHOKE LINK
-
2990-8M0143356 VALVE, PUMP DISCHARGEVALVE, PUMP DISCHARGE
-
3090-8M0143356 GASKET, DISCHARGE NOZZLEGASKET, DISCHARGE NOZZLE
-
3190-8M0143356 NOZZLE, PUMP DISCHARGENOZZLE, PUMP DISCHARGE
-
321396-4138 SCREW, DISCHARGE NOZZLESCREW, DISCHARGE NOZZLE
-
331396-5167 HOUSING, SECONDARY DIAPHRAGMHOUSING, SECONDARY DIAPHRAGM
-
3490-8M0143356 GASKET, SECONDARY DIAPHRAGM HOUSINGGASKET, SECONDARY DIAPHRAGM HOUSING
-
351396-4129 SCREW, SECONDARY DIAPHRAGM HOUSING ATTACHINGSCREW, SECONDARY DIAPHRAGM HOUSING ATTACHING
-
3690-8M0143356 DIAPHRAGM ASSEMBLY, SECONDARYDIAPHRAGM ASSEMBLY, SECONDARY
-
371396-4154 LEVER, SECONDARY DIAPHGRAGMLEVER, SECONDARY DIAPHGRAGM
-
381396-4131 SCREW, ADJUSTING - SECONDARY DIAPHRAGM LEVERSCREW, ADJUSTING - SECONDARY DIAPHRAGM LEVER
-
3990-8M0143356 RETAINER, SECONDARY DIAPHRAGM LEVERRETAINER, SECONDARY DIAPHRAGM LEVER
-
401396-5165 SPRING, RETURN - SECONDARY DIAPHRAGMSPRING, RETURN - SECONDARY DIAPHRAGM
-
411396-4094 COVER, SECONDARY DIAPAHRAGM HOUSINGCOVER, SECONDARY DIAPAHRAGM HOUSING
-
421396-4124 SCREW, SECONDARY DIAPHRAGM COVER ATTACHINGSCREW, SECONDARY DIAPHRAGM COVER ATTACHING
-
431396-4649 HOUSING ASSEMBLY, CHOKEHOUSING ASSEMBLY, CHOKE
-
4490-8M0143356 GASKET, CHOKE HOUSINGGASKET, CHOKE HOUSING
-
451396-4119 SHAFT ASSEMBLY, CHOKE HOUSINGSHAFT ASSEMBLY, CHOKE HOUSING
-
461396-4118 LEVER, PICK-UP - FAST IDLELEVER, PICK-UP - FAST IDLE
-
471396-4130 SCREW, CHOKE HOUSING ATTACHINGSCREW, CHOKE HOUSING ATTACHING
-
481396-4120 LEVER, CHOKE THERMOSTATLEVER, CHOKE THERMOSTAT
-
491396-4121 LINK AND PISTON ASSEMBLYLINK AND PISTON ASSEMBLY
-
5090-8M0143356 RETAINER, CHOKE LEVERRETAINER, CHOKE LEVER
-
511396-4142 SPACER, CHOKE LEVERSPACER, CHOKE LEVER
-
521396-4147 LOCKWASHER, CHOKE LEVERLOCKWASHER, CHOKE LEVER
-
531396-4141 NUT, CHOKE LEVERNUT, CHOKE LEVER
-
541396-4148 HOUSING ASSEMBLY, THERMOSTATHOUSING ASSEMBLY, THERMOSTAT
-
5590-8M0143356 GASKET, THERMOSTAT HOUSINGGASKET, THERMOSTAT HOUSING
-
561396-4149 CLAMP, THERMOSTAT HOUSINGCLAMP, THERMOSTAT HOUSING
-
571396-4122 SCREW, THERMOSTAT HOUSING ATTACHINGSCREW, THERMOSTAT HOUSING ATTACHING
