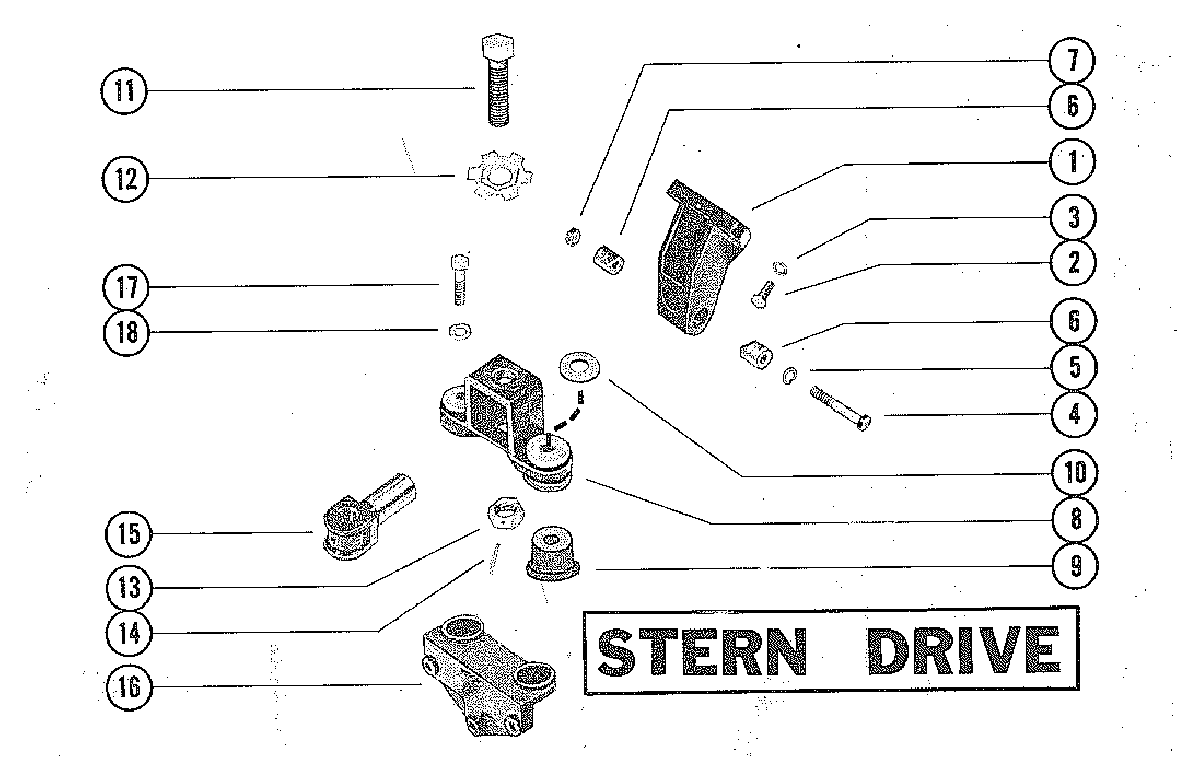

ENGINE MOUNTING для Mercruiser - 270 MIE GM 350 V-8 1969-1972 2851074 THRU 3077735
-
№АртикулНазвание
-
148709 BRACKET, MOUNTING (FRONT)BRACKET, MOUNTING (FRONT)
-
210-37612 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 1/4")SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 1/4")
-
313-35048 LOCKWASHER , MOUNTING BRACKET SCREWLOCKWASHER , MOUNTING BRACKET SCREW
-
410-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
-
513-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREWLOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
-
654-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
711-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREWNUT, CLAMP ADJUSTING TRUNNION SCREW
-
852139A4 BRACKET ASSEMBLY, MOUNTING - FRONTBRACKET ASSEMBLY, MOUNTING - FRONT
-
952753 MOUNT, MOUNTING BRACKETMOUNT, MOUNTING BRACKET
-
1012-48611 WASHER, MOUNTING BRACKETWASHER, MOUNTING BRACKET
-
1110-52156 SCREW, ADJUSTING TRUNNION (4 1/2")SCREW, ADJUSTING TRUNNION (4 1/2")
-
1214-48467 TAB WASHER, ADJUSTING TRUNNION SCREWTAB WASHER, ADJUSTING TRUNNION SCREW
-
1311-47525 NUT, JAM - ADJUSTING TRUNNION SCREWNUT, JAM - ADJUSTING TRUNNION SCREW
-
1417-22116 PIN, ROLL - JAM NUTPIN, ROLL - JAM NUT
-
1547518 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
1647986 BRACKET, MOUNTING - ENGINEBRACKET, MOUNTING - ENGINE
-
1710-48254 SCREW, MOUNTING BRACKET ATTACHING (2 1/8")SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
-
1813-31848 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
Все узлы модели:
- CARBURETOR ASSEMBLY, COMPLETE
- CYLINDER BLOCK, PISTONS AND CRANKSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR ASSEMBLY, COMPLETE
- • ENGINE MOUNTING
- EXHAUST KIT
- EXHAUST MANIFOLD ASSEMBLY, PORT
- FLYWHEEL HOUSING AND OIL COOLER
- FUEL PUMP, FUEL FILTER AND CARBURETOR
- INTAKE MANIFOLD AND OIL PUMP
- REMOTE OIL FILTER
- REVERSE LOCK VALVE ASSEMBLY AND SHIFT LEVER
- STARTER MOTOR AND ALTERNATOR
- TRANSMISSION ASSEMBLY (INBOARD)
- TRANSMISSION ASSEMBLY (STERN DRIVE)
- WATER PUMP ASSEMBLY, COMPLETE
- WIRING HARNESS, SWITCH BOX AND IGNITION COIL
