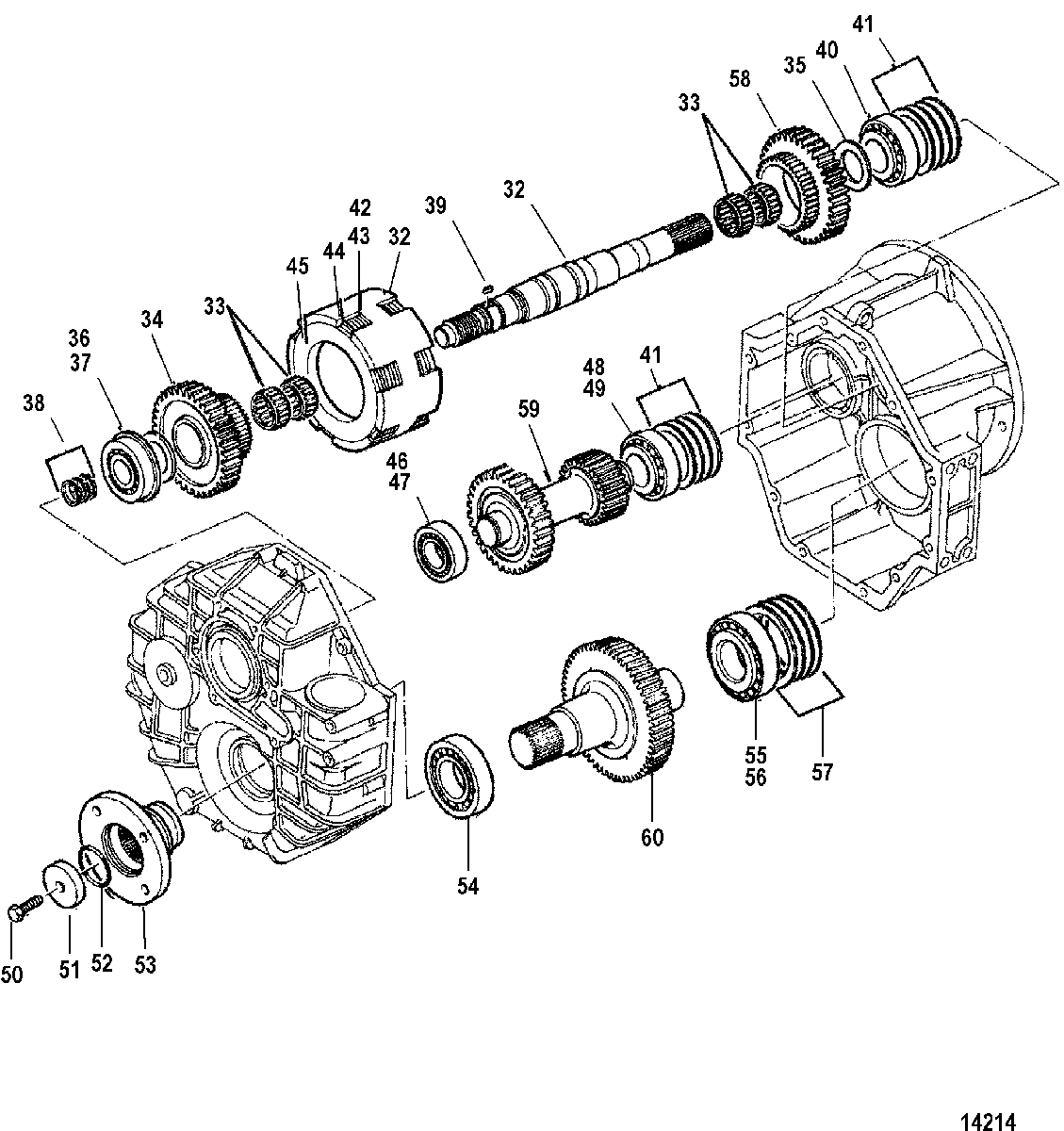

Transmission (Down Angle)(Hurth 630) для Mercruiser - 350 MAG MPI HORIZON MIE 0L302200 THRU 0M299999
-
№АртикулНазвание
-
-863744T2 TRANSMISSION, (1.5:1 Ratio)TRANSMISSION, (1.5:1 Ratio)
-
-863744T3 TRANSMISSION, (2.0:1 Ratio)TRANSMISSION, (2.0:1 Ratio)
-
-863744T4 TRANSMISSION, (2.5:1 Ratio)TRANSMISSION, (2.5:1 Ratio)
-
32813306 SHAFT, InputSHAFT, Input
-
3331-813307 BEARING, RollerBEARING, Roller
-
3443-813308 GEARGEAR
-
3512-813309 WASHERWASHER
-
3631-852066 BEARING (INNER)BEARING (INNER)
-
3731-852066 BEARING, Tapered Roller (OUTER)BEARING, Tapered Roller (OUTER)
-
3853-813312 RINGRING
-
3928-813313 KEYKEY
-
4030-813314 BEARINGBEARING
-
4115-813315 SHIM, (.10 mm) (.10 MM)SHIM, (.10 mm) (.10 MM)
-
4115-813316 SHIM, (.15 mm)SHIM, (.15 mm)
-
4115-813317 SHIM, (.20 mm)SHIM, (.20 mm)
-
4115-813318 SHIM, (.50 mm)SHIM, (.50 mm)
-
42813319 DISCDISC
-
43813320 DISCDISC
-
4453-813321 RINGRING
-
45813322 PRESSURE DISCPRESSURE DISC
-
4631-813323 BEARING, Tapered Roller (INNER)BEARING, Tapered Roller (INNER)
-
4731-813324 BEARING, Tapered Roller (OUTER)BEARING, Tapered Roller (OUTER)
-
4831-813325 BEARING, Tapered Roller (INNER)BEARING, Tapered Roller (INNER)
-
4931-813326 BEARING, Tapered Roller (OUTER)BEARING, Tapered Roller (OUTER)
-
5010-813327 SCREWSCREW
-
5123-813328 SPACERSPACER
-
5225-813329 O-RINGO-RING
-
53813330 FLANGE, OutputFLANGE, Output
-
5431-813331 BEARING, Tapered RollerBEARING, Tapered Roller
-
5531-813332 BEARING, Tapered Roller (INNER)BEARING, Tapered Roller (INNER)
-
5631-813333 BEARING, Tapered Roller (OUTER)BEARING, Tapered Roller (OUTER)
-
5715-813334 SHIM, (.10 mm)SHIM, (.10 mm)
-
5715-813335 SHIM, (.15 mm)SHIM, (.15 mm)
-
5715-813336 SHIM, (.30 mm)SHIM, (.30 mm)
-
5715-813337 SHIM, (.50 mm)SHIM, (.50 mm)
-
5843-813338 GEAR
(NO LONGER AVAILABLE)(1.5:1 RATIO)GEAR
(NO LONGER AVAILABLE)(1.5:1 RATIO) -
5843-813341 GEAR
(NO LONGER AVAILABLE)(2.0:1 RATIO)GEAR
(NO LONGER AVAILABLE)(2.0:1 RATIO) -
5843-813344 GEAR
(2.5:1 RATIO)GEAR
(2.5:1 RATIO) -
59813339 SHAFT, Intermediate
(NO LONGER AVAILABLE)(1.5:1 RATIO)SHAFT, Intermediate
(NO LONGER AVAILABLE)(1.5:1 RATIO) -
59813342 SHAFT, Intermediate
(NO LONGER AVAILABLE)(2.0:1 RATIO)SHAFT, Intermediate
(NO LONGER AVAILABLE)(2.0:1 RATIO) -
59813345 SHAFT, Intermediate
(2.5:1 RATIO)SHAFT, Intermediate
(2.5:1 RATIO) -
60813340 SHAFT, Output
(NO LONGER AVAILABLE)(1.5:1 RATIO)SHAFT, Output
(NO LONGER AVAILABLE)(1.5:1 RATIO) -
60813343 SHAFT, Output
(NO LONGER AVAILABLE)(2.0:1 RATIO)SHAFT, Output
(NO LONGER AVAILABLE)(2.0:1 RATIO) -
60813346 SHAFT, Output
(NO LONGER AVAILABLE)(2.5:1 RATIO)SHAFT, Output
(NO LONGER AVAILABLE)(2.5:1 RATIO)
