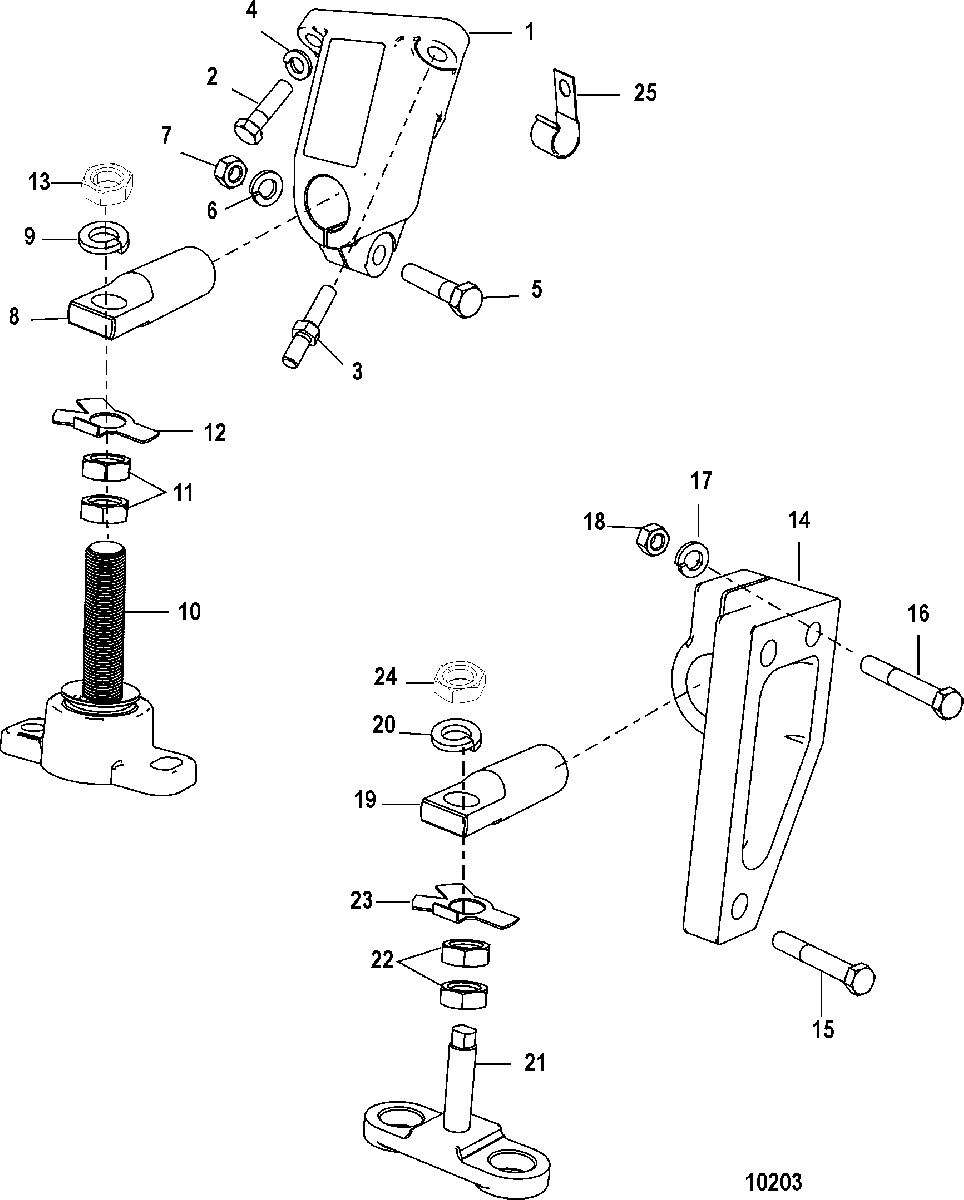

Transmission and Engine Mounting(BORG-WARNER 5000) для Mercruiser - 350 MAG MPI HORIZON MIE 0W390000 THRU 0W689999
-
№АртикулНазвание
-
171128A2 BRACKET, FrontBRACKET, Front
-
210-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
316-8M2004610 STUD, (.375-16 x 2.130)STUD, (.375-16 x 2.130)
-
413-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
510-37269 SCREW, (.437-14 x 2.00)SCREW, (.437-14 x 2.00)
-
613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
711-82670814 NUT, (.437-14)NUT, (.437-14)
-
866166A4 TRUNNIONTRUNNION
-
913-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
1066284A2 BASE ASSEMBLY, Engine EndBASE ASSEMBLY, Engine End
-
1111-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
1214-66658 TAB WASHER, TabTAB WASHER, Tab
-
1311-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
14805496T BRACKET
(Port)(Down Angle Transmission) SN# 0W393270 & BelowBRACKET
(Port)(Down Angle Transmission) SN# 0W393270 & Below -
14807725T BRACKET
(Port)(Down Angle Transmission) SN# 0W393271 & UpBRACKET
(Port)(Down Angle Transmission) SN# 0W393271 & Up -
14807724T BRACKET
(Port)(V-Drive Transmission)BRACKET
(Port)(V-Drive Transmission) -
14805496T1 BRACKET
(Starboard)(Down Angle Transmission) SN# 0W393270 & BelowBRACKET
(Starboard)(Down Angle Transmission) SN# 0W393270 & Below -
14807724T BRACKET
(Starboard)(Down Angle Transmission) SN# 0W393271 & UpBRACKET
(Starboard)(Down Angle Transmission) SN# 0W393271 & Up -
14807725T BRACKET
(Starboard)(V-Drive Transmission)BRACKET
(Starboard)(V-Drive Transmission) -
1510-4009760 SCREW, (M12 x 60)SCREW, (M12 x 60)
-
1610-57357 SCREW, (.437-13 x 2.250)
(Down Angle Transmission) SN# 0W393270 & BelowSCREW, (.437-13 x 2.250)
(Down Angle Transmission) SN# 0W393270 & Below -
1610-47724 SCREW, (.437-14 x 3.00)
(Down Angle Transmission) SN# 0W393271 & UpSCREW, (.437-14 x 3.00)
(Down Angle Transmission) SN# 0W393271 & Up -
1610-47724 SCREW, (.437-14 x 3.00)
(V-Drive Transmission)SCREW, (.437-14 x 3.00)
(V-Drive Transmission) -
1713-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1811-82670814 NUT, (.437-14)NUT, (.437-14)
-
1966166A4 TRUNNIONTRUNNION
-
2013-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
21816326A2 BASE ASSEMBLY, Transmission EndBASE ASSEMBLY, Transmission End
-
2211-816331 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2314-66658 TAB WASHER, TabTAB WASHER, Tab
-
2411-20739 NUT, (.750-16), JamNUT, (.750-16), Jam
-
2554-78945 J CLAMP, Harness SupportJ CLAMP, Harness Support
