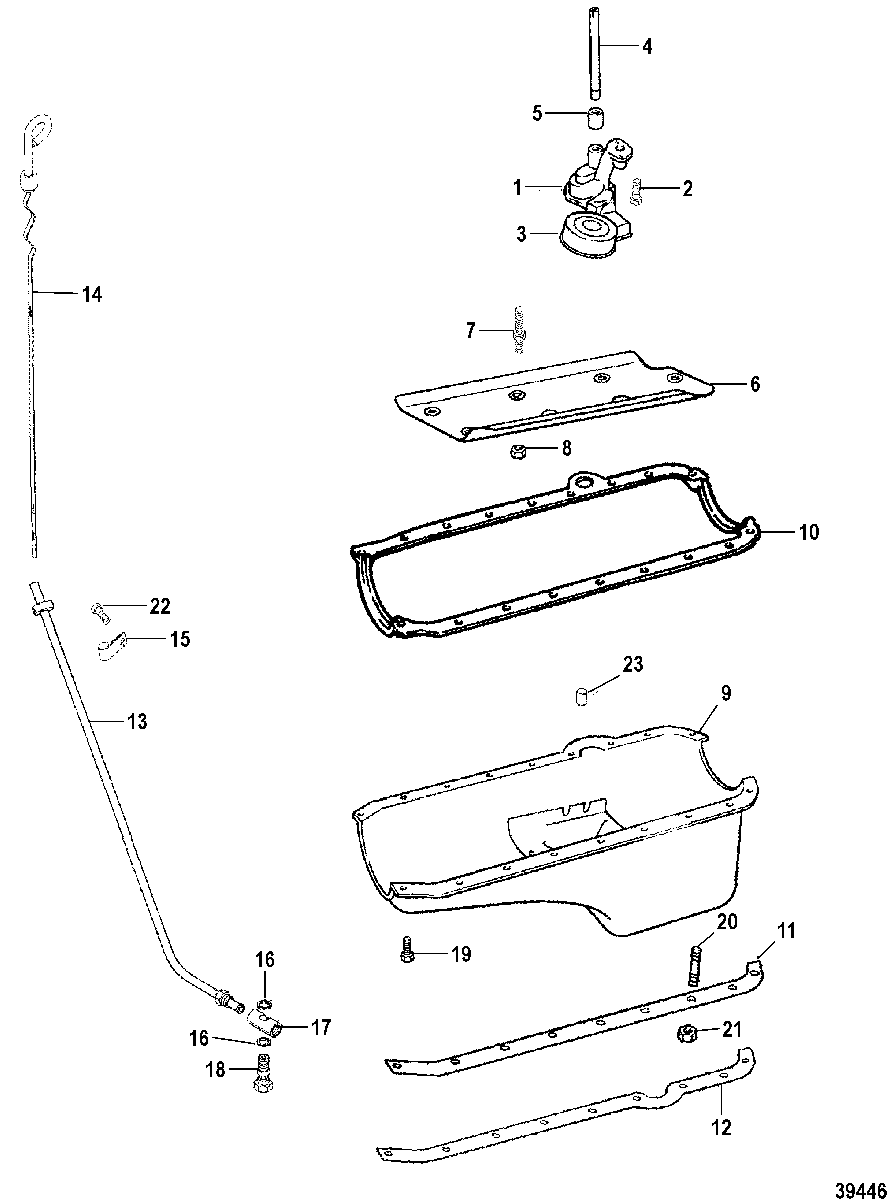

Oil Pan and Oil Pump для Mercruiser - 350 MAG. MPI MIE (GEN+) GM 350 V-8 1998 0L002008 THRU 0L302199
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-17346 SCREWSCREW
-
3809909 SCREEN, Oil Pump Pick UpSCREEN, Oil Pump Pick Up
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 DEFLECTOR, OilDEFLECTOR, Oil
-
716-850090 STUD, (.437-14/.375-16 x 3.360)STUD, (.437-14/.375-16 x 3.360)
-
811-845602 NUT, (.375-16)NUT, (.375-16)
-
9805930A1 PAN ASSEMBLY, OilPAN ASSEMBLY, Oil
-
1027-138651 GASKET, Oil PanGASKET, Oil Pan
-
1114257 REINFORCEMENT (PORT)REINFORCEMENT (PORT)
-
1214256 REINFORCEMENT (STARBOARD)REINFORCEMENT (STARBOARD)
-
13805384T TUBETUBE
-
14861942T2 DIPSTICK
(IN-LINE & DOWN ANGLE TRANSMISSION)DIPSTICK
(IN-LINE & DOWN ANGLE TRANSMISSION) -
14861942T3 DIPSTICK
(V-DRIVE TRANSMISSION)DIPSTICK
(V-DRIVE TRANSMISSION) -
1554-8054441 CLIPCLIP
-
1627-8M0077608 GASKET, DrainGASKET, Drain
-
17821504 FITTING, BanjoFITTING, Banjo
-
18807497 BOLT, (M12)BOLT, (M12)
-
1910-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
2016-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
2111-11971 NUT, (.312-18)NUT, (.312-18)
-
2210-8M0040582 SCREWSCREW
-
2319-93654 PLUGPLUG
-
-27-75611A98 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
