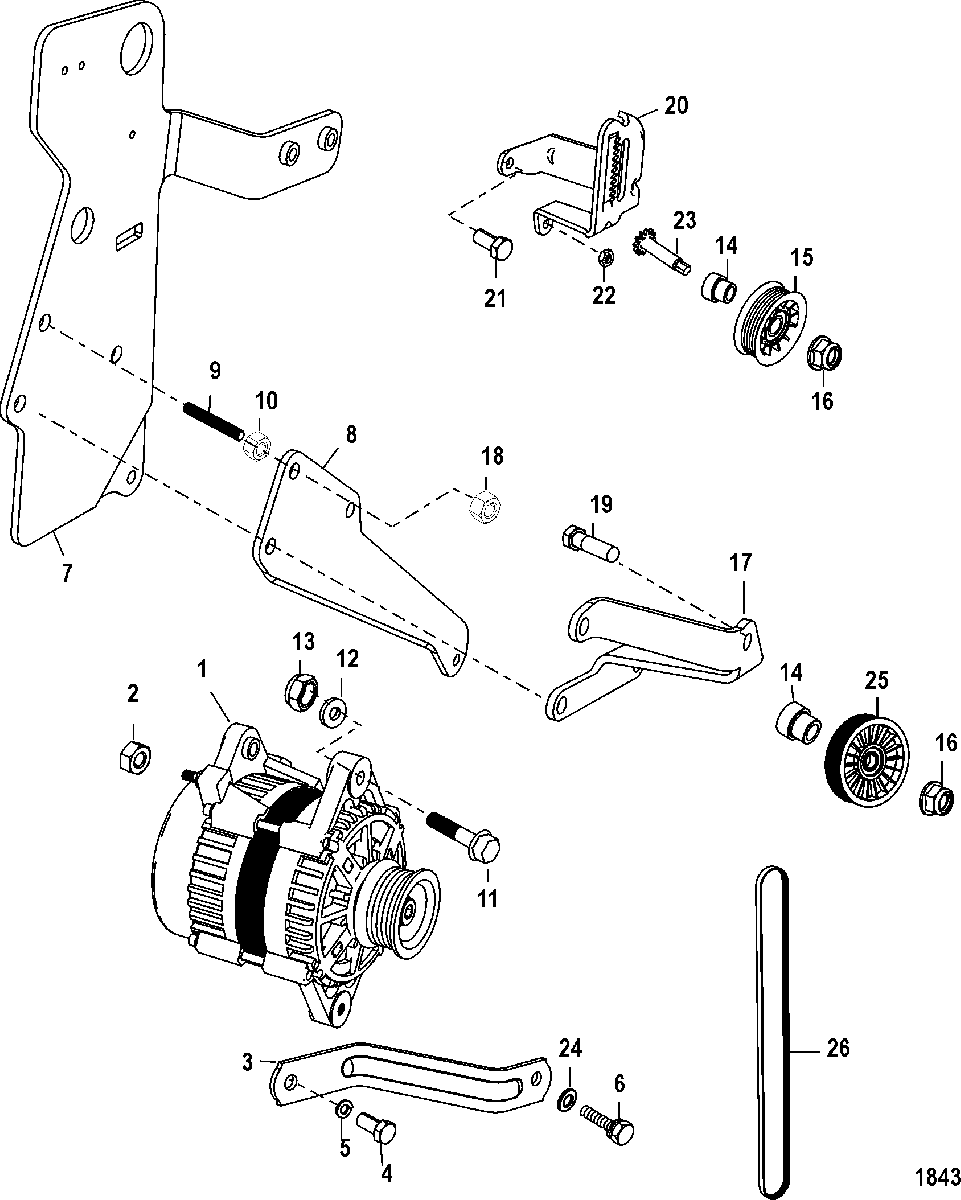

ALTERNATOR AND BRACKETS для Mercruiser - 350 MAG MPI MIE 0M317000 THRU 0M398371
-
№АртикулНазвание
-
1863077T ALTERNATOR ASSEMBLY, Black (65 Amp)(50mm Pulley)
(Service Complete Assy)ALTERNATOR ASSEMBLY, Black (65 Amp)(50mm Pulley)
(Service Complete Assy) -
211-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3807750T BRACEBRACE
-
410-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
513-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
610-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
78645581 BRACKET, Alternator and lifting Eye
(Inline) (Standard Cooling)BRACKET, Alternator and lifting Eye
(Inline) (Standard Cooling) -
7864558 BRACKET, Alternator and lifting Eye
(Inline) (Closed Cooling)BRACKET, Alternator and lifting Eye
(Inline) (Closed Cooling) -
7863646 BRACKET, Alternator and lifting Eye
(V-Drive)(Standard Cooling)BRACKET, Alternator and lifting Eye
(V-Drive)(Standard Cooling) -
78636461 BRACKET, Alternator and lifting Eye
(V-Drive)(Closed Cooling)BRACKET, Alternator and lifting Eye
(V-Drive)(Closed Cooling) -
8862058T BRACE, AlternatorBRACE, Alternator
-
916-862615 STUD, (.375-16 x 2.25)STUD, (.375-16 x 2.25)
-
1011-32219 NUT, (.375-16)
(Standard Cooling)NUT, (.375-16)
(Standard Cooling) -
1110-828213 SCREW, (.312-18 x 1.500) Hex Flange
(Closed Cooling)SCREW, (.312-18 x 1.500) Hex Flange
(Closed Cooling) -
1212-57792 WASHERWASHER
-
1311-26484 NUT, (5/16-18)NUT, (5/16-18)
-
14865193 BUSHINGBUSHING
-
15807757T PULLEY ASSEMBLY, Idler - Black ( 3 In. Dia. )PULLEY ASSEMBLY, Idler - Black ( 3 In. Dia. )
-
1611-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
17807753T1 BRACKET, IdlerBRACKET, Idler
-
1811-32219 NUT, (.375-16)NUT, (.375-16)
-
1910-816601 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
20807767T BRACKET, Idler AdjustmentBRACKET, Idler Adjustment
-
2110-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
2211-29250 NUT, (.312-24)NUT, (.312-24)
-
2343-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
2412-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
25864625T PULLEY ( 4-1/4 In. Dia )PULLEY ( 4-1/4 In. Dia )
-
2657-865615Q05 BELT, Serpentine, Serpentine
(Standard Cooling)BELT, Serpentine, Serpentine
(Standard Cooling) -
2657-865615Q10 BELT, Serpentine, Serpentine
(Closed Cooling)BELT, Serpentine, Serpentine
(Closed Cooling)
