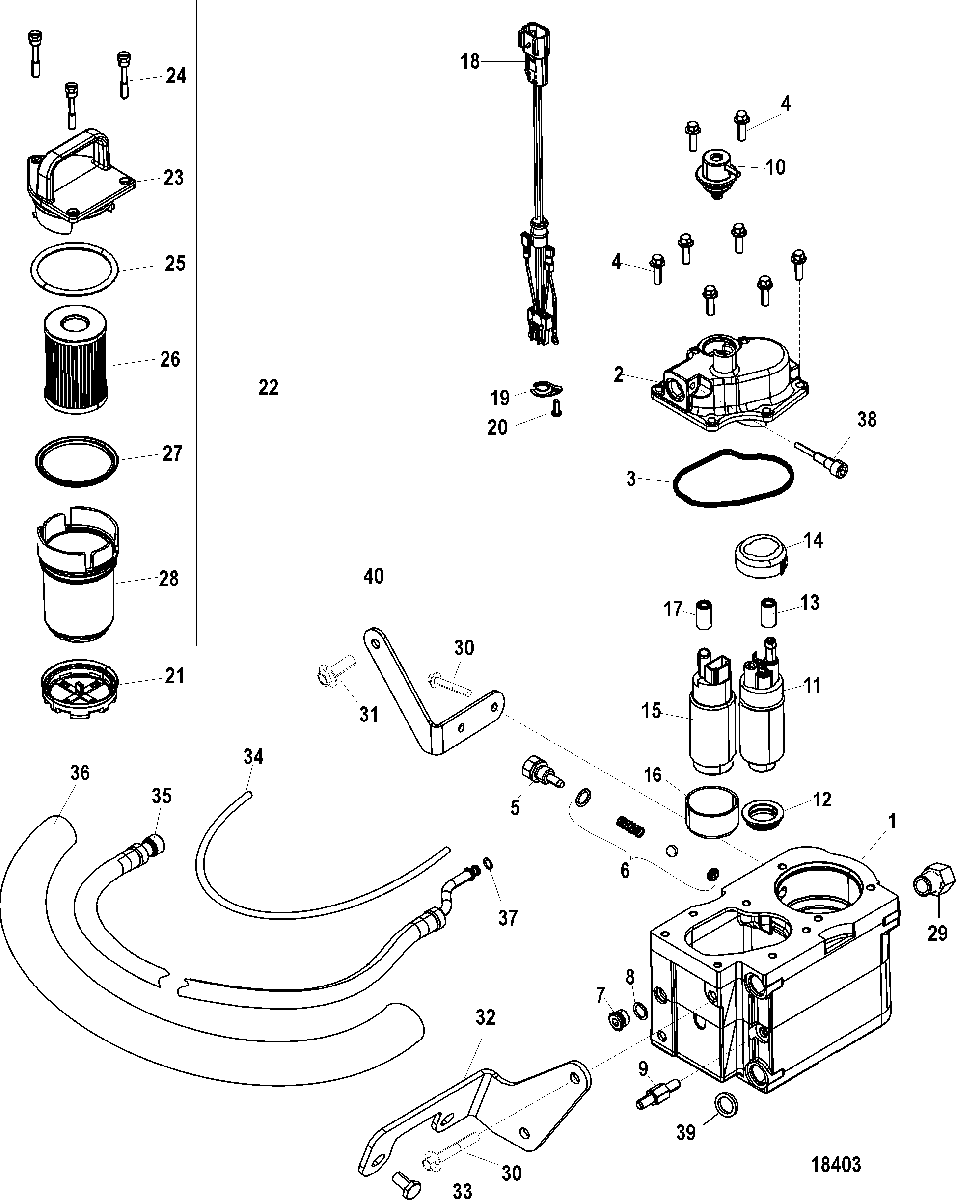

Fuel Supply Module для Mercruiser - 350 MAG MPI MIE 0W690000 THRU 1A089999
-
№АртикулНазвание
-
-864650A05 MODULE KIT, Fuel Pump, CompleteMODULE KIT, Fuel Pump, Complete
-
1892664T01 HOUSING, Fuel ModuleHOUSING, Fuel Module
-
28M0130861 COVER, Fuel Module HousingCOVER, Fuel Module Housing
-
326-892683 SEALSEAL
-
410-892684 SCREWSCREW
-
5892670A01 CHECK VALVE KITCHECK VALVE KIT
-
6NSS NOT SOLD SEPARATE, CHECK VALVENOT SOLD SEPARATE, CHECK VALVE
-
7NSS NOT SOLD SEPARATE, PLUGNOT SOLD SEPARATE, PLUG
-
8NSS NOT SOLD SEPARATE, SEALNOT SOLD SEPARATE, SEAL
-
916-865326 STUD, (M8 x 30)STUD, (M8 x 30)
-
10892681 REGULATORREGULATOR
-
11866170A01 PUMP ASSEMBLY, Fuel - Low PressurePUMP ASSEMBLY, Fuel - Low Pressure
-
12NSS NOT SOLD SEPARATE, SEALNOT SOLD SEPARATE, SEAL
-
13NSS NOT SOLD SEPARATE, SEALNOT SOLD SEPARATE, SEAL
-
14NSS NOT SOLD SEPARATE, ISOLATOR, Lift PumpNOT SOLD SEPARATE, ISOLATOR, Lift Pump
-
15866169T01 PUMP ASSEMBLY, Fuel - High PressurePUMP ASSEMBLY, Fuel - High Pressure
-
16NSS NOT SOLD SEPARATE, ISOLATORNOT SOLD SEPARATE, ISOLATOR
-
17NSS NOT SOLD SEPARATE, SEALNOT SOLD SEPARATE, SEAL
-
1884-8M0056175 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
19NSS NOT SOLD SEPARATE, RETAINERNOT SOLD SEPARATE, RETAINER
-
20NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
-
2135-892665 FILTERFILTER
-
22892687A02 CARTRIDGE ASSEMBLY, Fuel FilterCARTRIDGE ASSEMBLY, Fuel Filter
-
23NSS NOT SOLD SEPARATE, CAP, Fuel Filter CartridgeNOT SOLD SEPARATE, CAP, Fuel Filter Cartridge
-
24NSS NOT SOLD SEPARATE, SCREWNOT SOLD SEPARATE, SCREW
-
25NSS NOT SOLD SEPARATE, SEALNOT SOLD SEPARATE, SEAL
-
2635-8M0093688 FILTERFILTER
-
27NSS NOT SOLD SEPARATE, SEALNOT SOLD SEPARATE, SEAL
-
28NSS NOT SOLD SEPARATE, CUP, Fuel Filter CartridgeNOT SOLD SEPARATE, CUP, Fuel Filter Cartridge
-
2922-88517 FITTING, ReducingFITTING, Reducing
-
3010-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
3110-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
32864458 BRACKETBRACKET
-
3310-40001195 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
3432-8M0063567 HOSE, (58.00 Inches Bulk)HOSE, (58.00 Inches Bulk)
-
3532-865257A03 HOSE, FuelHOSE, Fuel
-
36NSS NOT SOLD SEPARATE, Insulator SleeveNOT SOLD SEPARATE, Insulator Sleeve
-
3726-863151 SEAL, Quad RingSEAL, Quad Ring
-
3810-866114 SCREW, (.250-28) SpecialSCREW, (.250-28) Special
-
3925-865363 O-RINGO-RING
-
40864459 BRACKETBRACKET
