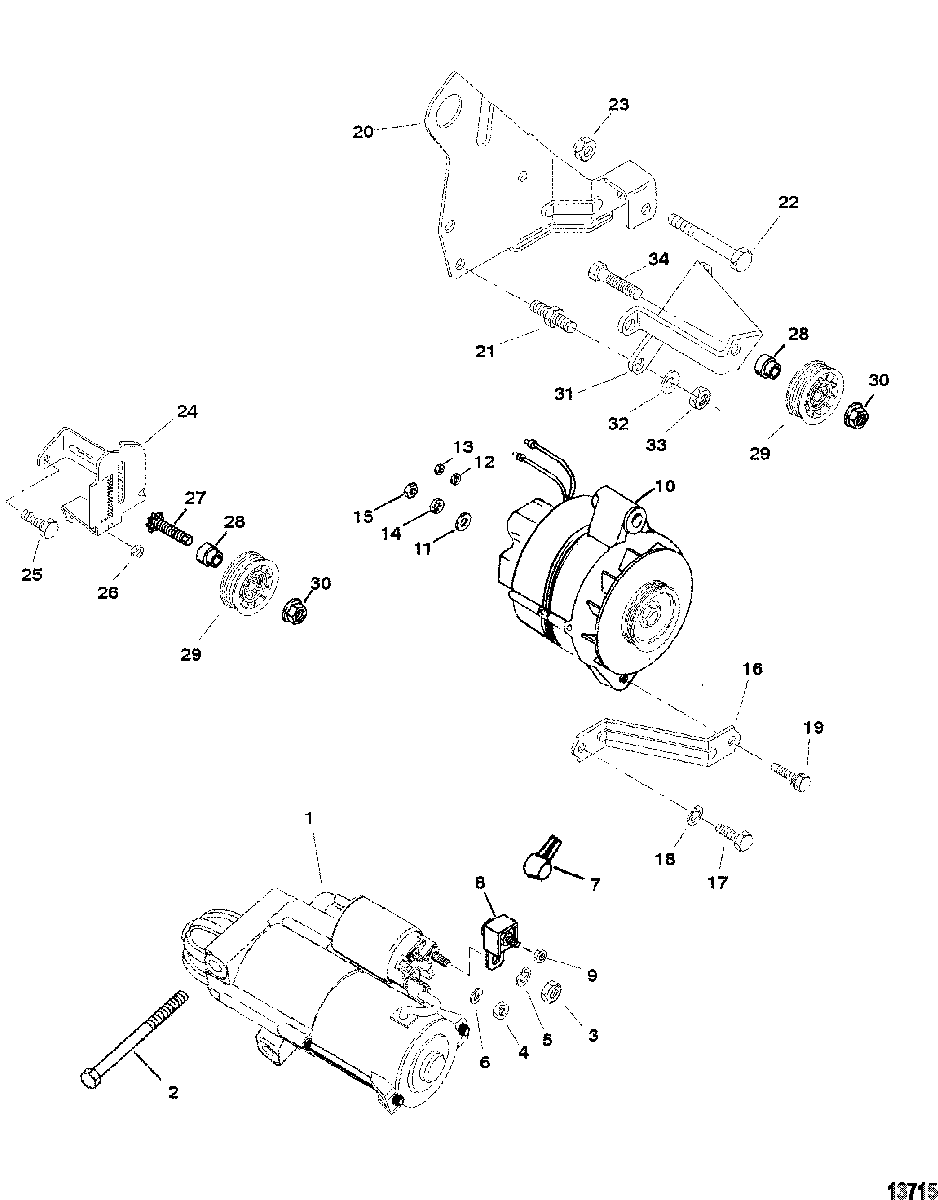

Alternator And Starter(Mando) для Mercruiser - 350 MAG MPI SKI (GEN+) GM 350 V-8 1998 AND UP 0L002600 THRU 0M310009

№

Артикул

Название
1

50-863007A1 STARTER MOTOR ASSEMBLY
(Component Parts Not Available At Time Of Printing)

STARTER MOTOR ASSEMBLY
(Component Parts Not Available At Time Of Printing)

28 580 ₽
2

10-8053432 SCREW, (.375-16 x 4.33)

SCREW, (.375-16 x 4.33)

1 070 ₽
3

11-806949 NUT, (M8-1.5)

NUT, (M8-1.5)

250 ₽
4

11-400211 NUT, (M5) Stainless Steel

NUT, (M5) Stainless Steel

210 ₽
5

13-39107 LOCKWASHER, (.312-24)

LOCKWASHER, (.312-24)

120 ₽
6

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel

60 ₽
7

85-79695T BOOT, Insulator - Black

BOOT, Insulator - Black

510 ₽
8

88-79023A91 FUSE ASSEMBLY, 90 Ampere

FUSE ASSEMBLY, 90 Ampere

3 040 ₽
9

11-21825 NUT, (.250-28)

NUT, (.250-28)

130 ₽
10

807653T ALTERNATOR ASSEMBLY
(See "Alternator (Mando)" For Breakdown)

ALTERNATOR ASSEMBLY
(See "Alternator (Mando)" For Breakdown)

48 340 ₽
11

12-96457 WASHER, Phenolic (.27 x .81 x .062)

WASHER, Phenolic (.27 x .81 x .062)

130 ₽
12

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel

60 ₽
13

11-79989 NUT, (#10-24) Stainless Steel

NUT, (#10-24) Stainless Steel

180 ₽
14

13-26992 LOCKWASHER, (.250) Stainless Steel

LOCKWASHER, (.250) Stainless Steel

70 ₽
15

11-94330 NUT, (.250-20) Brass

NUT, (.250-20) Brass

120 ₽
16

807750T BRACE

BRACE

3 510 ₽
17

10-98261 SCREW, (.375-16 x .750)

SCREW, (.375-16 x .750)

100 ₽
18

13-35048 LOCKWASHER, (.375)

LOCKWASHER, (.375)

120 ₽
19

10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)

SCREW AND LOCKWASHER, (.312-18 x .875)

330 ₽
20

860370T1 BRACKET

BRACKET

7 990 ₽
21

16-860102 STUD, (.375-16 x 1.730)

STUD, (.375-16 x 1.730)

1 520 ₽
22

10-56743 SCREW, (.375-24 x 3.125)

SCREW, (.375-24 x 3.125)

560 ₽
23

11-23161 NUT, (.375-24)

NUT, (.375-24)

150 ₽
24

807767T BRACKET, Idler Adjustment

BRACKET, Idler Adjustment

6 790 ₽
25

10-98261 SCREW, (.375-16 x .750)

SCREW, (.375-16 x .750)

100 ₽
26

11-29250 NUT, (.312-24)

NUT, (.312-24)

180 ₽
27

43-8M0113182 PINION STUD, (.437-20) Stainless Steel

PINION STUD, (.437-20) Stainless Steel

2 010 ₽
28

865193 BUSHING

BUSHING

460 ₽
29

807757T PULLEY ASSEMBLY, Idler - Black

PULLEY ASSEMBLY, Idler - Black

5 890 ₽
30

11-859135 NUT, (.437-20)

NUT, (.437-20)

430 ₽
31

807753T1 BRACKET, Idler

BRACKET, Idler

5 290 ₽
32

12-73729 WASHER, (.390 x .546 x .190)

WASHER, (.390 x .546 x .190)

1 700 ₽
33

11-32219 NUT, (.375-16)

NUT, (.375-16)

180 ₽
34

10-816601 SCREW, (.437-20 x 1.500)

SCREW, (.437-20 x 1.500)

440 ₽
