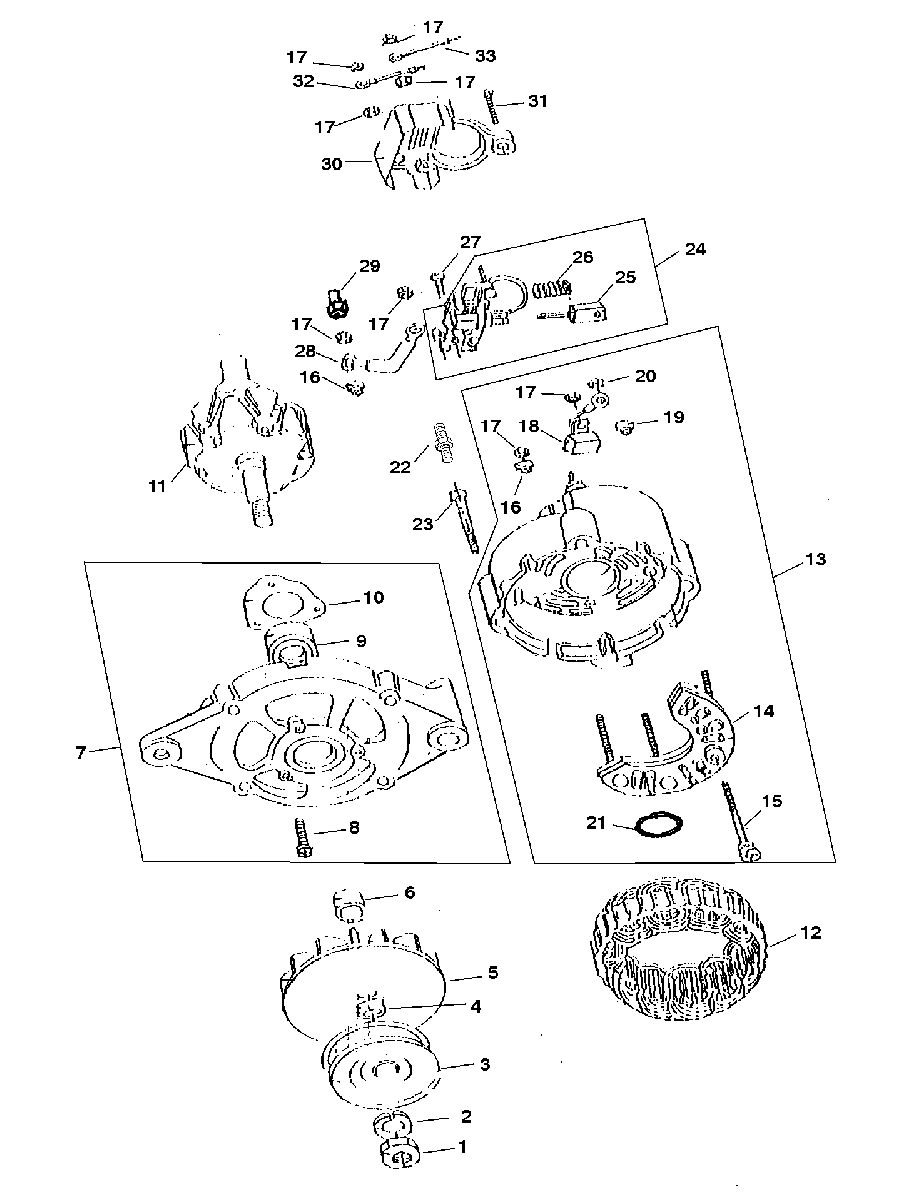

ALTERNATOR (MANDO) для Mercruiser - 350 MAG MPI SKI GM 350 V-8 1995-1996 0F350583 THRU 0F799999
-
№АртикулНазвание
-
-805884T ALTERNATOR ASSEMBLYALTERNATOR ASSEMBLY
-
111-809136 NUTNUT
-
213-809137 LOCKWASHERLOCKWASHER
-
3809134 PULLEYPULLEY
-
423-809135 SPACERSPACER
-
5809139 FAN ASSEMBLYFAN ASSEMBLY
-
623-809140 SPACERSPACER
-
7809151 FRONT BRACKET ASSEMBLYFRONT BRACKET ASSEMBLY
-
810-809154 SCREWSCREW
-
930-809153 BALL BEARINGBALL BEARING
-
10809152 RETAINERRETAINER
-
11809150 ROTORROTOR
-
12809133T STATORSTATOR
-
13809155 REAR BRACKET ASSEMBLYREAR BRACKET ASSEMBLY
-
14809162 RECTIFIERRECTIFIER
-
1510-809160 SET SCREWSET SCREW
-
16809146 MOLDMOLD
-
1711-809143 NUTNUT
-
18809161 CONDENSERCONDENSER
-
19809158 MOLDMOLD
-
2011-809157 NUTNUT
-
2125-809156 O-RINGO-RING
-
2210-809159 BOLTBOLT
-
2310-809138 THRU BOLTTHRU BOLT
-
24811883T REGULATOR ASSEMBLYREGULATOR ASSEMBLY
-
25811884 BRUSHBRUSH
-
2624-811885 SPRINGSPRING
-
2710-809141 SCREWSCREW
-
28809142 TERMINALTERMINAL
-
29809149 INSULATOR CAPINSULATOR CAP
-
30809144 COVERCOVER
-
3110-809145 SET SCREWSET SCREW
-
3284-809148 LEAD WIRELEAD WIRE
-
3384-809147 LEAD WIRELEAD WIRE
