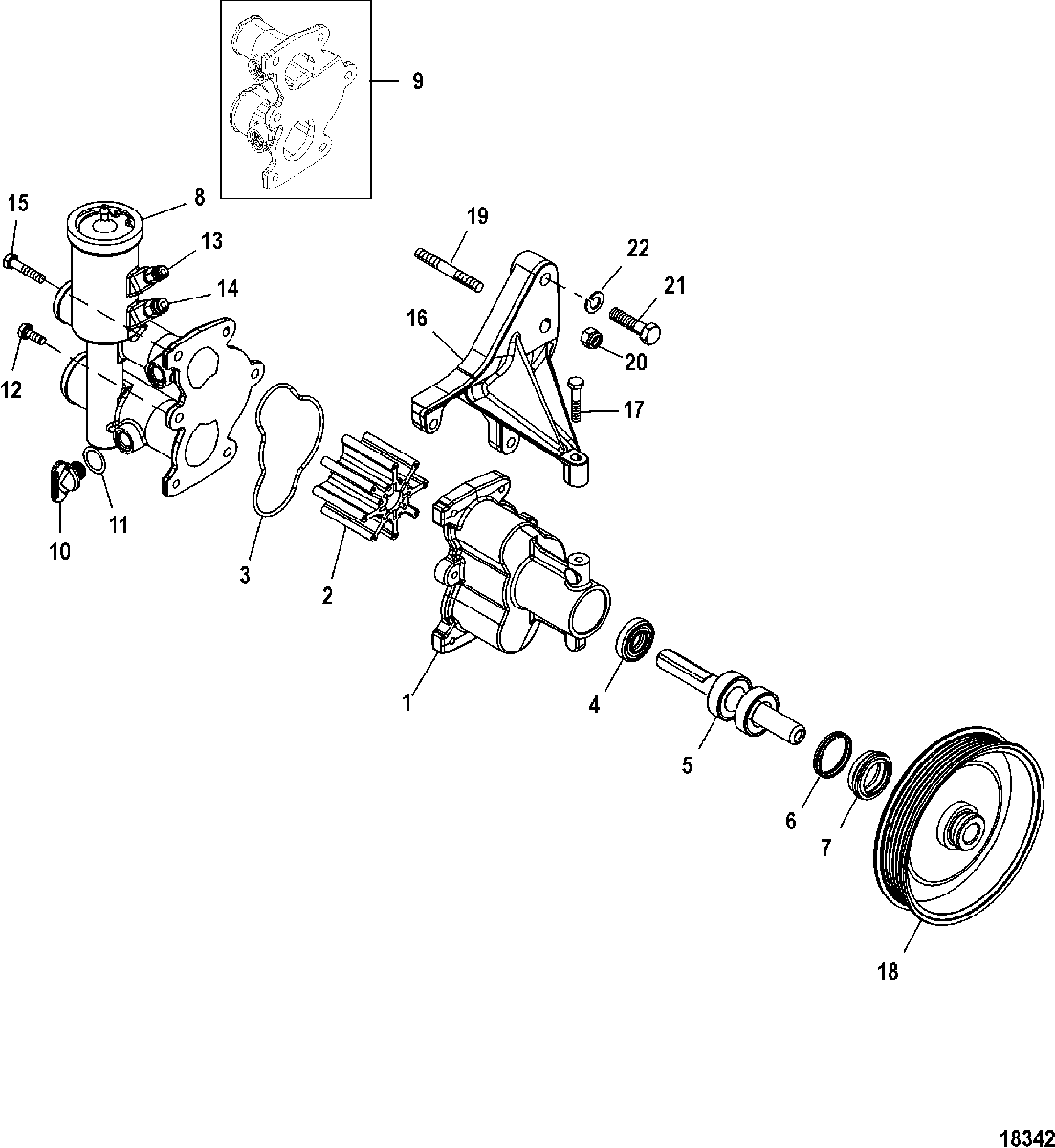

Sea Water Pump Assembly для Mercruiser - 350 MAG MPI SKI 0M300000 THRU 0M316999

№

Артикул

Название
-

46-8M0137216 PUMP KIT, Sea Water
(Without Air Fittings)

PUMP KIT, Sea Water
(Without Air Fittings)

63 910 ₽
-

46-8M0137217 PUMP KIT, Sea Water
(With Air Fittings)

PUMP KIT, Sea Water
(With Air Fittings)

103 480 ₽
1

8M0118062 HOUSING ASSEMBLY, Impeller

HOUSING ASSEMBLY, Impeller

44 490 ₽
2

47-8M0104229 IMPELLER

IMPELLER

5 060 ₽
3

25-841807 O-RING, (3.500 x .103) (Also included with Reference 8 and 9)

O-RING, (3.500 x .103) (Also included with Reference 8 and 9)

500 ₽
4

26-8M2001645 SEAL, Oil

SEAL, Oil

630 ₽
5

8M0050018 DRIVESHAFT ASSEMBLY

DRIVESHAFT ASSEMBLY

9 070 ₽
6

862039 TOLERANCE RING

TOLERANCE RING

2 360 ₽
7

26-862040 SEAL, Lip

SEAL, Lip

660 ₽
8

863674A05 COVER KIT, Impeller Housing
(With Air Fittings)

COVER KIT, Impeller Housing
(With Air Fittings)

46 730 ₽
9

862776A01 COVER KIT, Impeller Housing
(Without Air Fittings)

COVER KIT, Impeller Housing
(Without Air Fittings)

11 620 ₽
10

22-8M0119211 PLUG KIT, (.500-13) Royal Blue

PLUG KIT, (.500-13) Royal Blue

820 ₽
11

25-32509 O-RING, (.489 x .070)

O-RING, (.489 x .070)

150 ₽
12

10-4000328 SCREW, (M6 x 16)

SCREW, (M6 x 16)

270 ₽
13

22-8M0082319 FITTING, Gray - Straight, Male Air
(.1562)(Component of 46-862914T11)

FITTING, Gray - Straight, Male Air
(.1562)(Component of 46-862914T11)

980 ₽
14

22-8M0082320 FITTING, Orange - Straight, Male Air
(.1875)(Component of 46-862914T11)

FITTING, Orange - Straight, Male Air
(.1875)(Component of 46-862914T11)

980 ₽
15

10-4000331 SCREW, (M6 x 30)

SCREW, (M6 x 30)

230 ₽
16

865143T01 BRACKET, Sea Water Pump

BRACKET, Sea Water Pump

7 850 ₽
17

10-4000331 SCREW, (M6 x 30)

SCREW, (M6 x 30)

230 ₽
18

862351T PULLEY

PULLEY

8 890 ₽
19

16-863853 STUD

STUD

260 ₽
20

11-82671112 NUT, (.375-16)

NUT, (.375-16)

230 ₽
21

10-32132 SCREW, (.375-16 x 1.750)

SCREW, (.375-16 x 1.750)

200 ₽
22

13-35048 LOCKWASHER, (.375)

LOCKWASHER, (.375)

120 ₽
