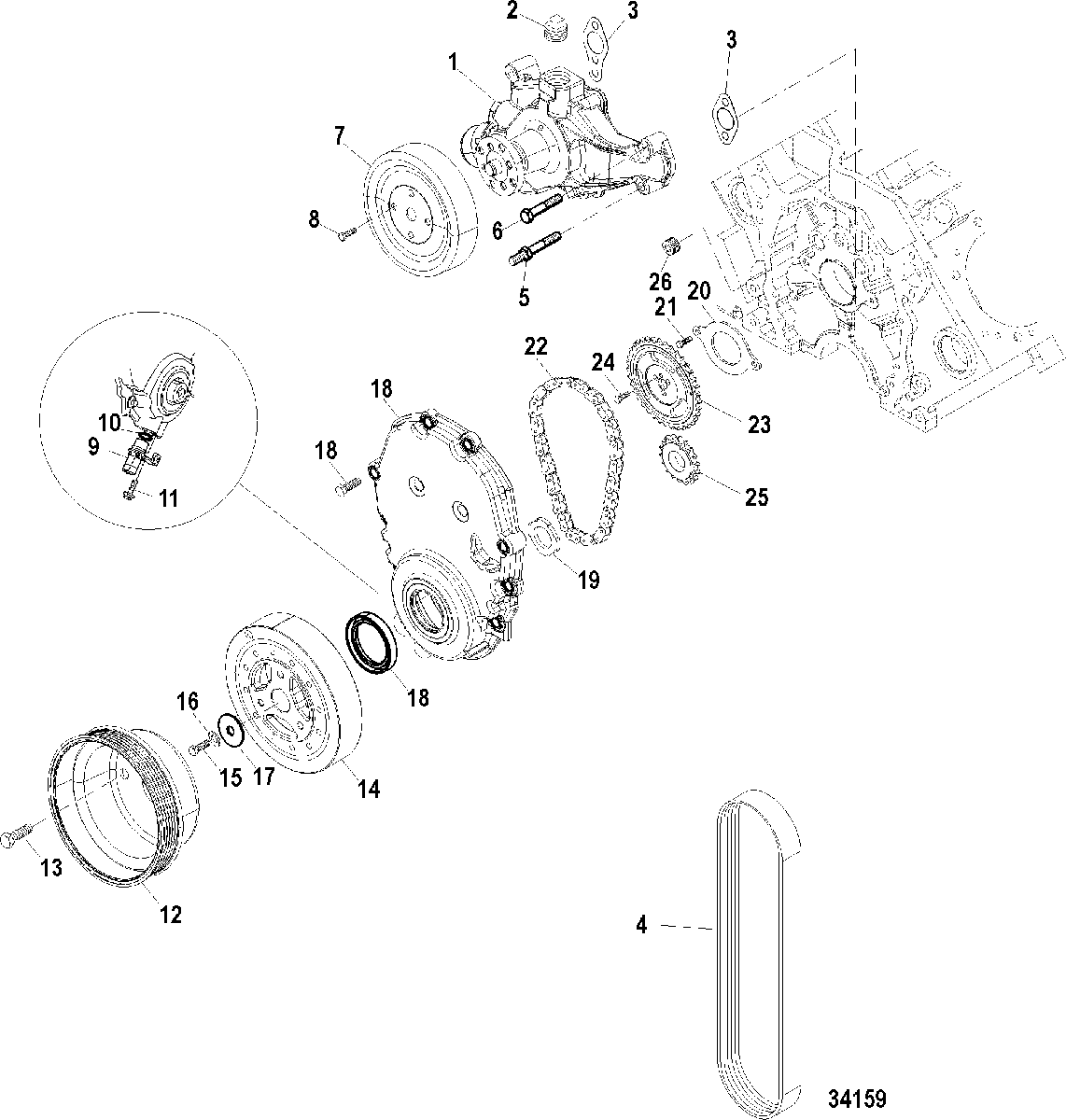

Front Cover and Circulating Pump для Mercruiser - 383 MAG STROKER INBOARD 1G300000 & Up
-
№АртикулНазвание
-
146-8M0113734 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
222-428611 FITTING, Pipe - Brass (.750-14), PipeFITTING, Pipe - Brass (.750-14), Pipe
-
327-34897 GASKET, Water PumpGASKET, Water Pump
-
457-865615Q03 BELT, Serpentine
BravoBELT, Serpentine
Bravo -
457-865615Q05 BELT, Serpentine
InboardBELT, Serpentine
Inboard -
516-8M0076418 STUDSTUD
-
610-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
610-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
7807729T PULLEY, Water PumpPULLEY, Water Pump
-
810-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
9864297T01 SENSOR ASSEMBLY, Crankshaft PositionSENSOR ASSEMBLY, Crankshaft Position
-
1025-885192 O-RINGO-RING
-
1110-884018001 SCREWSCREW
-
12807730T PULLEY, CrankshaftPULLEY, Crankshaft
-
1310-34352 SCREW, (.375-24 x .875)SCREW, (.375-24 x .875)
-
14863397 HARMONIC BALANCERHARMONIC BALANCER
-
1510-8M2021674 SCREW, (.437-20 x 2.50)SCREW, (.437-20 x 2.50)
-
1613-39131 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1712-71458 WASHERWASHER
-
18863396001 TIMING COVER ASSEMBLY, Screws, Grommets, Oil Seal, and Gasket are Not Sold SeperatelyTIMING COVER ASSEMBLY, Screws, Grommets, Oil Seal, and Gasket are Not Sold Seperately
-
19863398 RELUCTOR WHEELRELUCTOR WHEEL
-
20845941 RETAINER, CamshaftRETAINER, Camshaft
-
2110-845943 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
2217161T CHAIN, TimingCHAIN, Timing
-
2343-8116591 SPROCKET, CamshaftSPROCKET, Camshaft
-
2410-8M0043993 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
2543-17160 SPROCKET, CrankshaftSPROCKET, Crankshaft
-
2619-816565 PLUG, Cup (.468)PLUG, Cup (.468)
-
-27-861246A05 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
