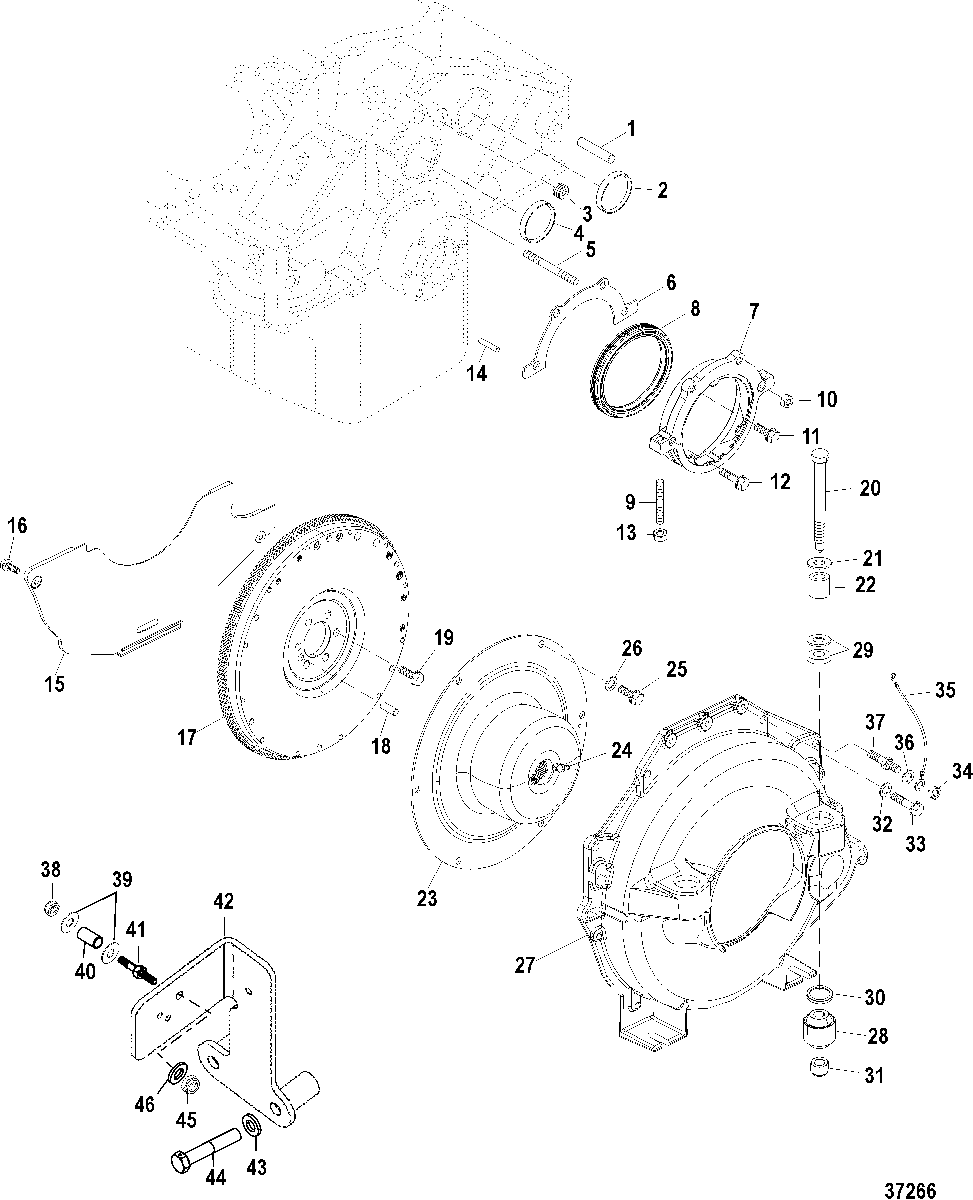

Flywheel Housing для Mercruiser - 383 STROKER SCORPION BRAVO All & Up

-
№АртикулНазвание
-
117-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing LocationPIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
-
219-34270 EXPANSION PLUG, (1.625), Engine Core HoleEXPANSION PLUG, (1.625), Engine Core Hole
-
322-32561 PLUG, (.250-18 x .41), Oil GalleyPLUG, (.250-18 x .41), Oil Galley
-
422-72640 PLUG, Expansion, Camshaft Bearing HolePLUG, Expansion, Camshaft Bearing Hole
-
516-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
-
627-881715 GASKET, Crankshaft Oil Seal HousingGASKET, Crankshaft Oil Seal Housing
-
7852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil SealHOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
-
826-852941 SEAL, Crankshaft OilSEAL, Crankshaft Oil
-
916-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1011-8M0098315 NUTNUT
-
1110-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
1210-8M0064241 BOLT, (.250-20 x 1.750)BOLT, (.250-20 x 1.750)
-
1311-11971 NUT, (.312-18)NUT, (.312-18)
-
1417-14263 PIN, Dowel, Oil Seal Housing LocatingPIN, Dowel, Oil Seal Housing Locating
-
15807260A2 COVER KIT, FlywheelCOVER KIT, Flywheel
-
NS11-807296 NUT, (.250-20)NUT, (.250-20)
-
1610-76596 SCREW, (.250-20 x 1.250)SCREW, (.250-20 x 1.250)
-
17222-8M0047213 FLYWHEELFLYWHEEL
-
1817-43504 PIN, Dowel, FlywheelPIN, Dowel, Flywheel
-
1910-845757 SCREW, (.437-20 x 1.00)SCREW, (.437-20 x 1.00)
-
2010-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
-
2112-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
2223-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
238M0098796 COUPLER ASSEMBLY, Engine - Long Steel HubCOUPLER ASSEMBLY, Engine - Long Steel Hub
-
2422-74036 FITTING, GreaseFITTING, Grease
-
2510-863480 SCREW, (.375-16 x 1.125)SCREW, (.375-16 x 1.125)
-
2612-20572 WASHER, (.390 x .750 x .093)WASHER, (.390 x .750 x .093)
-
27865657A04 HOUSING ASSEMBLY, FlywheelHOUSING ASSEMBLY, Flywheel
-
28865330A02 MOUNT KIT, RubberMOUNT KIT, Rubber
-
2912-892619A01 SHIM KITSHIM KIT
-
3023-99322 SPACERSPACER
-
3111-863332 NUT, (.500-20) AluminumNUT, (.500-20) Aluminum
-
3212-20572 WASHER, (.390 x .750 x .093)WASHER, (.390 x .750 x .093)
-
3310-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
3310-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
3411-32219 NUT, (.375-16)NUT, (.375-16)
-
3584-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) BlackCABLE ASSEMBLY, Ground (13.00 Inches) Black
-
3613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3716-861316 STUDSTUD
-
3811-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
3912-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
4023-31866 SPACER, (.256 x .313 x .625)SPACER, (.256 x .313 x .625)
-
4116-8M0113178 STUD, (.250-28 x 2.00)STUD, (.250-28 x 2.00)
-
42841261T BRACKETBRACKET
-
4312-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
4410-358701 SCREW, (.375-16 x 2.00)SCREW, (.375-16 x 2.00)
-
4511-35888 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
4612-846673 WASHER, (.265 x .500 x .060) Stainless SteelWASHER, (.265 x .500 x .060) Stainless Steel
-
-27-807670A02 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
-
-879147R55 LONGBLOCK ASSEMBLYLONGBLOCK ASSEMBLY
