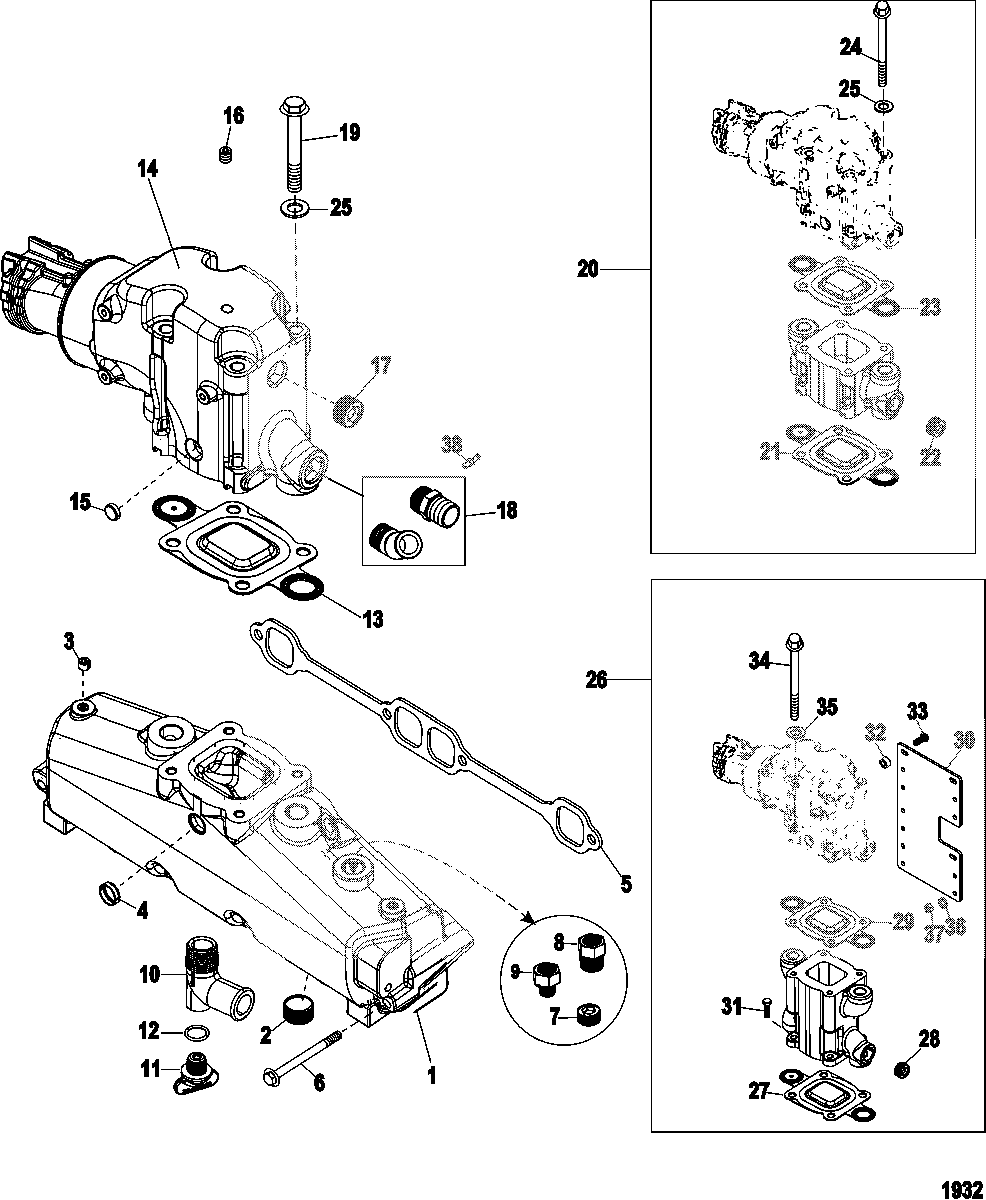

Exhaust Manifold and Elbow для Mercruiser - 5.7L CARB MIE 0M317000 THRU 0W090899
-
№АртикулНазвание
-
1865735A02 MANIFOLD ASSEMBLY, ExhaustMANIFOLD ASSEMBLY, Exhaust
-
222-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
322-390721 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
419-864689 PLUG, Expansion, ExpansionPLUG, Expansion, Expansion
-
527-33395 GASKETGASKET
-
610-53728 SCREW, (.375-16 x 4.75)SCREW, (.375-16 x 4.75)
-
722-384071 PLUG, Pipe (.500) (12-14)(Port)
(Early Models)PLUG, Pipe (.500) (12-14)(Port)
(Early Models) -
722-12524 PLUG, (.375-18 x .475) Brass, Port
(Late Models)PLUG, (.375-18 x .475) Brass, Port
(Late Models) -
822-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
(Early Models)CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare)
(Early Models) -
922-93190 FITTING, (.375 NPTF x .50 Inverted Flare)
(Late Models)FITTING, (.375 NPTF x .50 Inverted Flare)
(Late Models) -
922-63835 ELBOW, 45 Degree
SN# 0M393952 & UpELBOW, 45 Degree
SN# 0M393952 & Up -
1022-862210A01 ELBOW KIT, DrainELBOW KIT, Drain
-
1122-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
1225-62706 O-RING, (.426 x .070)O-RING, (.426 x .070)
-
1327-864850A02 GASKET, Elbow(Restrictor)GASKET, Elbow(Restrictor)
-
14864591T02 ELBOW ASSEMBLY, ExhaustELBOW ASSEMBLY, Exhaust
-
1519-864689 PLUG, Expansion, ExpansionPLUG, Expansion, Expansion
-
1622-73379 PLUG, (.250-18)PLUG, (.250-18)
-
1722-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
1822-865159 FITTING, (45 Degree)
(Rear Facing Elbows)(Starboard)FITTING, (45 Degree)
(Rear Facing Elbows)(Starboard) -
1822-864623A1 FITTING ASSEMBLY, Barb (With Tapped Fitting)
(Rear Facing Elbows)(Port)FITTING ASSEMBLY, Barb (With Tapped Fitting)
(Rear Facing Elbows)(Port) -
1822-865159 FITTING, (45 Degree)
(Forward Facing Elbows)FITTING, (45 Degree)
(Forward Facing Elbows) -
1910-864665 SCREW, (.375-16 x 7.50)SCREW, (.375-16 x 7.50)
-
20864306A5 RISER EXTENSION KIT (3 Inch Cold Riser)
SN# 0M389999 & BelowRISER EXTENSION KIT (3 Inch Cold Riser)
SN# 0M389999 & Below -
20864929A3 RISER EXTENSION KIT (3 Inch Warm Riser)
SN# 0M390000 & UpRISER EXTENSION KIT (3 Inch Warm Riser)
SN# 0M390000 & Up -
2127-864850A02 GASKET, RestrictorGASKET, Restrictor
-
2222-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
2327-864547A02 GASKET, Full FlowGASKET, Full Flow
-
2410-864702 BOLT, (.375-16 x 10.500)BOLT, (.375-16 x 10.500)
-
2512-34714 WASHERWASHER
-
26864908A07 RISER EXTENSION KIT (6 Inch Cold Riser)
SN# 0M389999 & BelowRISER EXTENSION KIT (6 Inch Cold Riser)
SN# 0M389999 & Below -
26864908A1 RISER EXTENSION KIT (6 Inch Warm Riser)
SN# 0M390000 & UpRISER EXTENSION KIT (6 Inch Warm Riser)
SN# 0M390000 & Up -
2727-864850A02 GASKET, RestrictorGASKET, Restrictor
-
2822-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
2927-864547A02 GASKET, Full FlowGASKET, Full Flow
-
30818598T BRACKET, RiserBRACKET, Riser
-
3110-865982005 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3223-806981 SPACERSPACER
-
3310-28667 SCREW, (.250-20 x 1.00) Stainless SteelSCREW, (.250-20 x 1.00) Stainless Steel
-
3410-864665 SCREW, (.375-16 x 7.50)SCREW, (.375-16 x 7.50)
-
3512-34714 WASHERWASHER
-
3612-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3711-64015 NUT, (.250-20)NUT, (.250-20)
-
3822-16604 FITTING, Straight (.125-27), BarbFITTING, Straight (.125-27), Barb
-
-8M0088397 LONGBLOCK ASSEMBLYLONGBLOCK ASSEMBLY
-
-27-861246A05 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
