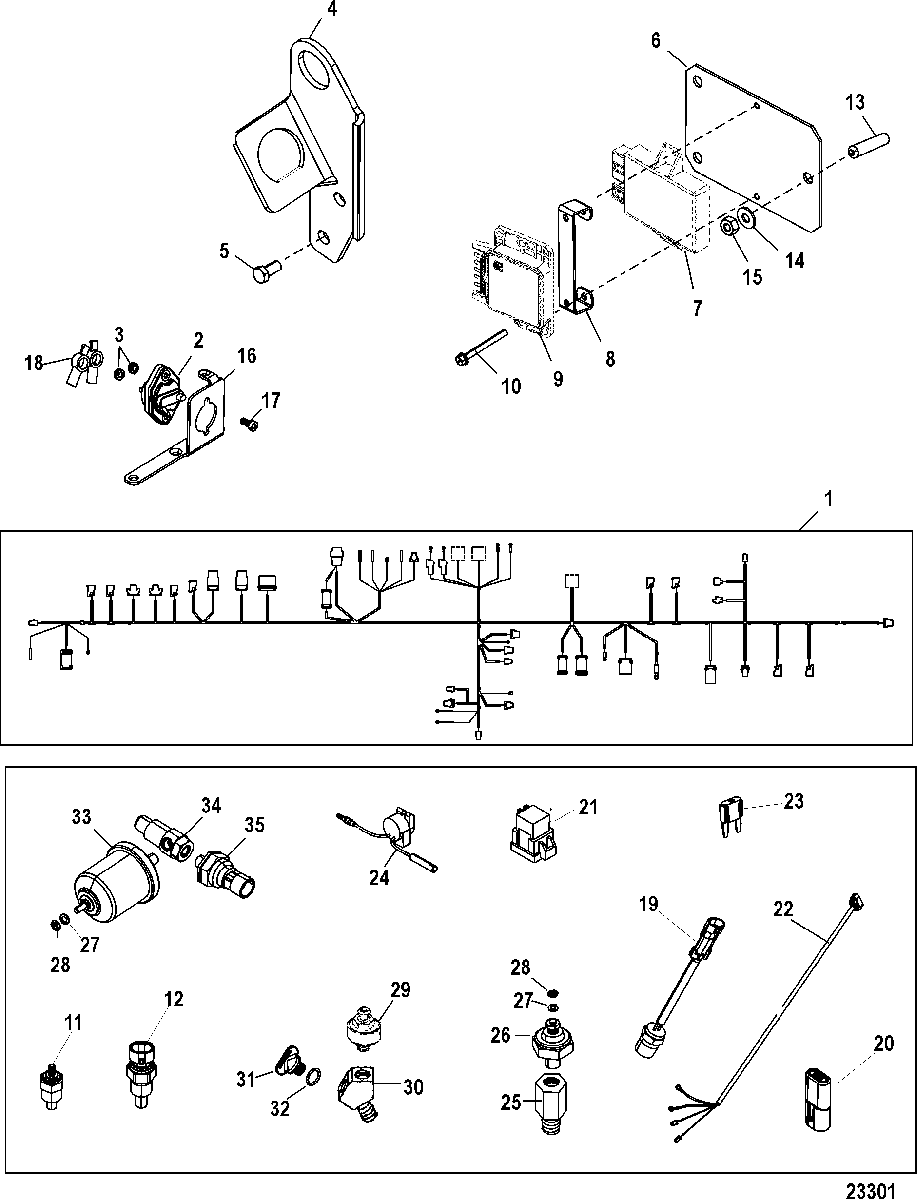

Electrical Components для Mercruiser - 5.7L CARB SKI 0W694844 & Up
-
№АртикулНазвание
-
184-862164T04 HARNESS ASSEMBLY, 2 BarrelHARNESS ASSEMBLY, 2 Barrel
-
184-879194071 HARNESS ASSEMBLY, 4 BarrelHARNESS ASSEMBLY, 4 Barrel
-
288-11178A01 BREAKER, Circuit - 50 Ampere, Flag Reset
SN# 2A173702 & BelowBREAKER, Circuit - 50 Ampere, Flag Reset
SN# 2A173702 & Below -
288-11178A01 BREAKER, Circuit - 50 Ampere, Button Reset
SN# 2A173703 & UpBREAKER, Circuit - 50 Ampere, Button Reset
SN# 2A173703 & Up -
311-826709106 NUT, (#10-32) Stainless Steel
SN# 2A173702 & BelowNUT, (#10-32) Stainless Steel
SN# 2A173702 & Below -
311-68219 NUT, (#10-32) Stainless Steel
SN# 2A173703 & UpNUT, (#10-32) Stainless Steel
SN# 2A173703 & Up -
4899719T02 BRACKET, Harness Mounting/Lifting EyeBRACKET, Harness Mounting/Lifting Eye
-
510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
6861516 BRACKETBRACKET
-
7861543T02 ICM MODULE, Ignition Control Module, 2 BarrelICM MODULE, Ignition Control Module, 2 Barrel
-
7879194073 MODULE, ICM - 4 BarrelMODULE, ICM - 4 Barrel
-
8861517 BRACKETBRACKET
-
9806611T MODULE, Knock ControlMODULE, Knock Control
-
1010-41408 SCREW, (#10-32 x 1.50)SCREW, (#10-32 x 1.50)
-
11806490T SENDERSENDER
-
1149734 SENDER
(Dual Station)SENDER
(Dual Station) -
12805218T SENSORSENSOR
-
1310-24323 SET SCREW, (.250-20 x 1.25)SET SCREW, (.250-20 x 1.25)
-
1412-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1511-64015 NUT, (.250-20)NUT, (.250-20)
-
16899719T01 BRACKETBRACKET
-
1710-830861 SCREW, (#8-32 x .625)
SN# 2A173702 & BelowSCREW, (#8-32 x .625)
SN# 2A173702 & Below -
1710-45862 SCREW, (#10-32 x .875)
SN# 2A173703 & UpSCREW, (#10-32 x .875)
SN# 2A173703 & Up -
1885-89919 BOOT, Insulator - BlackBOOT, Insulator - Black
-
1987-866089 THERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key StartTHERMAL SWITCH, (Normally Open 130-110 degrees), Turn Key Start
-
2083-865913A01 DIODE ASSEMBLYDIODE ASSEMBLY
-
21882751 RELAYRELAY
-
2284-866734T01 HARNESS ASSEMBLY, TransmissionHARNESS ASSEMBLY, Transmission
-
2388-832969T15 FUSE, Mini - Blue - 15 AmpereFUSE, Mini - Blue - 15 Ampere
-
2388-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
24816492A6 ALARM KITALARM KIT
-
2522-32974 FITTING, (.125-27) AdaptorFITTING, (.125-27) Adaptor
-
2687-805605A1 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
2713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
29806612T SENSOR, KnockSENSOR, Knock
-
3022-8067051 FITTING, DualFITTING, Dual
-
3122-8M0119211 PLUG KIT, (.500-13) Royal Blue
(5.0L Alpha)PLUG KIT, (.500-13) Royal Blue
(5.0L Alpha) -
3225-62706 O-RING, (.426 x .070)
(5.0L Alpha)O-RING, (.426 x .070)
(5.0L Alpha) -
338M0068784 SENDER ASSEMBLYSENDER ASSEMBLY
-
3337293T SENDER ASSEMBLY
(Dual Station)SENDER ASSEMBLY
(Dual Station) -
3422-864669 FITTINGFITTING
-
3587-8M0070108 SWITCH, Oil PressureSWITCH, Oil Pressure
