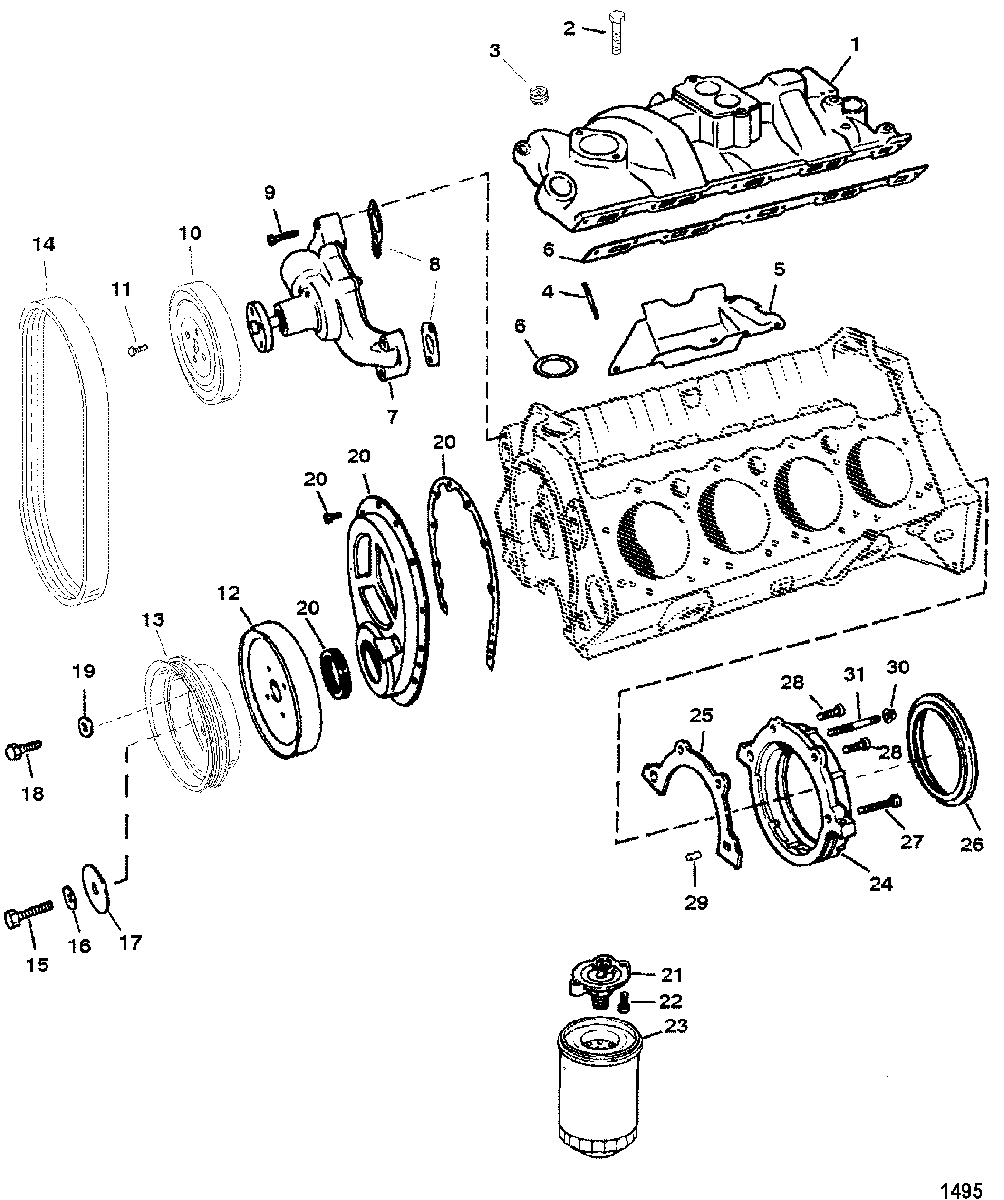

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1997 0K040004 THRU 0K999999
-
№АртикулНазвание
-
117619 MANIFOLD, IntakeMANIFOLD, Intake
-
210-11976 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
210-852939 BOLT, (3/8-16 x 1.5 In.)BOLT, (3/8-16 x 1.5 In.)
-
322-12524 PLUG, (.375)PLUG, (.375)
-
4NSS NOT SOLD SEPARATE, STUD (GM#10229247)NOT SOLD SEPARATE, STUD (GM#10229247)
-
572647 GUARDGUARD
-
627-17145 GASKET SET, Intake Manifold
(Use RTV Silicone Sealant for end gasket - See Service Manual)GASKET SET, Intake Manifold
(Use RTV Silicone Sealant for end gasket - See Service Manual) -
746-8M0113734 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
827-34897 GASKET, Water PumpGASKET, Water Pump
-
910-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
910-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
916-8M0076418 STUD, (.312-24/.375-16 x 2.5625)STUD, (.312-24/.375-16 x 2.5625)
-
10807729T PULLEY, Water PumpPULLEY, Water Pump
-
1110-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
12809892T BALANCER, HarmonicBALANCER, Harmonic
-
13807730T PULLEY, CrankshaftPULLEY, Crankshaft
-
1457-807755Q04 BELT, SerpentineBELT, Serpentine
-
1510-8M2021674 SCREW, (.437-20 x 2.50)SCREW, (.437-20 x 2.50)
-
1613-39131 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1712-35332001 WASHERWASHER
-
1810-34352 SCREW, (.375-24 x .875)SCREW, (.375-24 x .875)
-
1912-34714 WASHERWASHER
-
20835005 COVER ASSEMBLY, Timing
(SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.)COVER ASSEMBLY, Timing
(SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.) -
2171920 VALVE ASSEMBLY, FilterVALVE ASSEMBLY, Filter
-
2210-54786 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2335-866340Q03 FILTER, OilFILTER, Oil
-
24852940 HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
-
2527-881715 GASKETGASKET
-
2626-852941 SEAL, Oil (REAR)SEAL, Oil (REAR)
-
2710-8M0064241 BOLT, (.250-20 x 1.750)BOLT, (.250-20 x 1.750)
-
2810-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
2917-14263 PIN, DowelPIN, Dowel
-
3011-8M0098315 NUT, (.250-20)NUT, (.250-20)
-
3116-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
-
-27-806871A96 GASKET SET, Overhaul
CONTENTS INDICATED BY FOOTNOTE 16.GASKET SET, Overhaul
CONTENTS INDICATED BY FOOTNOTE 16.
