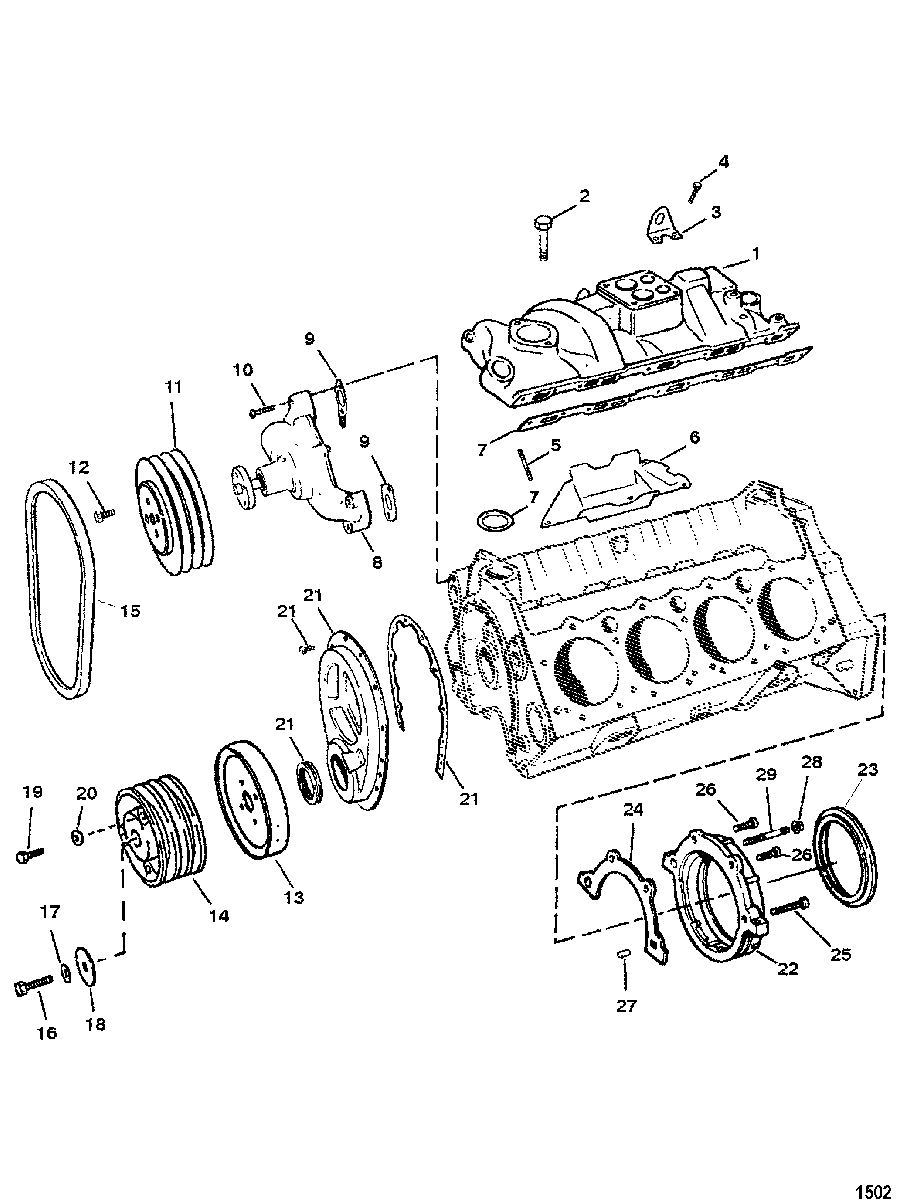

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7L MIE GM 350 V-8 1996 0F622100 THRU 0F622150
-
№АртикулНазвание
-
117620 INTAKE MANIFOLDINTAKE MANIFOLD
-
210-11976 BOLTBOLT
-
210-802655 BOLTBOLT
-
354-47512 EYE-LIFTINGEYE-LIFTING
-
410-34354 SCREWSCREW
-
5NSS STUD (GM #3959544)STUD (GM #3959544)
-
672647 GUARDGUARD
-
727-17145 GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual)GASKET SET
(Use RTV Silicone Sealant for end gasket - See Service Manual) -
846-8M0113734 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
927-34897 GASKETGASKET
-
1010-32132 SCREW (1-3/4 IN.)SCREW (1-3/4 IN.)
-
1010-47688 SCREW (2-3/4 IN.)SCREW (2-3/4 IN.)
-
1010-52200 SCREW (1-1/2 IN.)SCREW (1-1/2 IN.)
-
1119692T01 PULLEYPULLEY
-
1210-47277 SCREWSCREW
-
13809892T BALANCER-HARMONICBALANCER-HARMONIC
-
1490081A1 PULLEYPULLEY
-
1557-48120Q1 BELT (46 IN.)BELT (46 IN.)
-
1610-8M2021674 BOLT (2 IN.)BOLT (2 IN.)
-
1713-39131 LOCKWASHERLOCKWASHER
-
1812-35332001 WASHERWASHER
-
1910-53833 BOLTBOLT
-
2012-34714 WASHERWASHER
-
21835005 COVER
(SCREWS, GROMMETS, OIL SEAL, AND GASKETS NOT SOLD SEPARATELY)COVER
(SCREWS, GROMMETS, OIL SEAL, AND GASKETS NOT SOLD SEPARATELY) -
2214239 RETAINERRETAINER
-
2326-8M0077606 OIL SEALOIL SEAL
-
2427-881715 GASKETGASKET
-
2510-8M0064241 BOLTBOLT
-
2610-14242 BOLTBOLT
-
2717-14263 DOWEL PINDOWEL PIN
-
2811-8M0098315 NUTNUT
-
2916-14827 STUDSTUD
-
-27-806871A96 GASKET SET-OVERHAULGASKET SET-OVERHAUL
