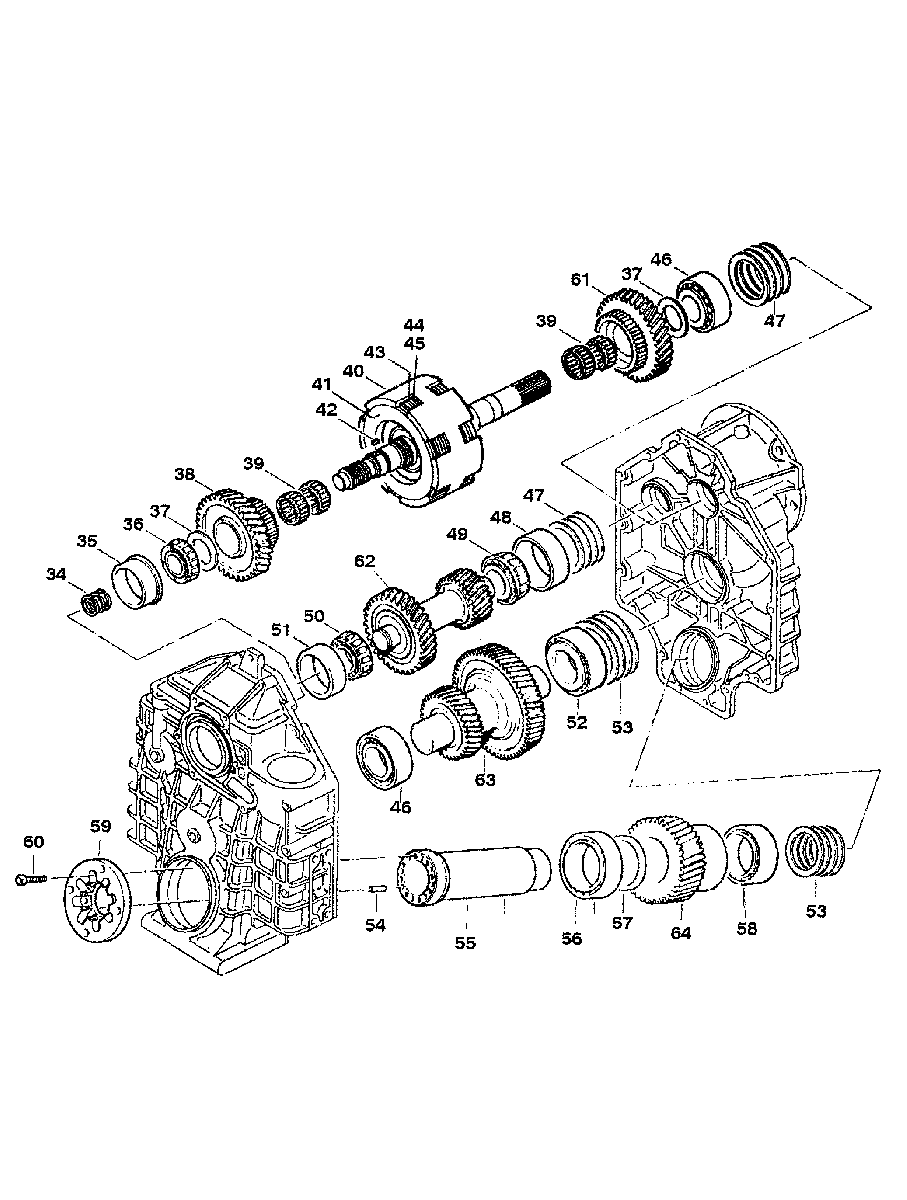

TRANSMISSION (V-DRIVE)(HURTH 630) для Mercruiser - 5.7L MIE GM 350 V-8 1996 0F746100 THRU 0K040306
-
№АртикулНазвание
-
-863745T2 TRANSMISSION ASSEMBLY
(1.5:1 RATIO)TRANSMISSION ASSEMBLY
(1.5:1 RATIO) -
-863745T3 TRANSMISSION ASSEMBLY
(2.0:1 RATIO)TRANSMISSION ASSEMBLY
(2.0:1 RATIO) -
-863745T4 TRANSMISSION ASSEMBLY
(2.5:1 RATIO)TRANSMISSION ASSEMBLY
(2.5:1 RATIO) -
3453-813312 SNAP RINGSNAP RING
-
3531-811970 TAPERED ROLLER BEARING CUPTAPERED ROLLER BEARING CUP
-
3631-811969 TAPERED ROLLER BEARING CONETAPERED ROLLER BEARING CONE
-
3712-811967 WASHERWASHER
-
3843-813308 GEARGEAR
-
3931-813307 ROLLER BEARINGROLLER BEARING
-
40813306 INPUT SHAFTINPUT SHAFT
-
41813322 PRESSURE DISCPRESSURE DISC
-
4228-813313 KEYKEY
-
4353-813321 SNAP RINGSNAP RING
-
44813319 INNER CLUTCH DISCINNER CLUTCH DISC
-
45813320 OUTER CLUTCH DISCOUTER CLUTCH DISC
-
4630-811968 BALL BEARINGBALL BEARING
-
4715-813315 SHIM
(.10MM)SHIM
(.10MM) -
4715-813316 SHIM
(.15MM)SHIM
(.15MM) -
4715-813317 SHIM
(.20MM)SHIM
(.20MM) -
4715-813318 SHIM
(.50MM)SHIM
(.50MM) -
4831-811979 TAPERED ROLLER BEARING CUPTAPERED ROLLER BEARING CUP
-
4931-811978 TAPERED ROLLER BEARING CONETAPERED ROLLER BEARING CONE
-
5031-811971 TAPERED ROLLER BEARING CONETAPERED ROLLER BEARING CONE
-
5131-811977 TAPERED ROLLER BEARING CUPTAPERED ROLLER BEARING CUP
-
5231-811972 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
5315-811973 SHIM
(.10MM)SHIM
(.10MM) -
5315-811974 SHIM
(.15MM)SHIM
(.15MM) -
5315-811975 SHIM
(.30MM)SHIM
(.30MM) -
5315-811976 SHIM
(.50MM)SHIM
(.50MM) -
5417-811984 DOWEL PINDOWEL PIN
-
55811980 OUTPUT SHAFTOUTPUT SHAFT
-
5631-811985 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
5712-811981 WASHERWASHER
-
5831-811986 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
59811982 OUTPUT FLANGEOUTPUT FLANGE
-
6010-811983 SCREWSCREW
-
6143-811987 GEAR
1.5:1 RATIOGEAR
1.5:1 RATIO -
62811951 REVERSING SHAFT
1.5:1 RATIOREVERSING SHAFT
1.5:1 RATIO -
63811952 INTERMEDIATE SHAFT
1.5:1 RATIOINTERMEDIATE SHAFT
1.5:1 RATIO -
6443-811950 GEAR
1.5:1 RATIOGEAR
1.5:1 RATIO -
6143-811949 GEAR
2.0:1 RATIOGEAR
2.0:1 RATIO -
62811947 REVERSING SHAFT
2.0:1 RATIOREVERSING SHAFT
2.0:1 RATIO -
63811948 INTERMEDIATE SHAFT
2.0:1 RATIOINTERMEDIATE SHAFT
2.0:1 RATIO -
6443-811950 GEAR
2.0:1 RATIOGEAR
2.0:1 RATIO -
6143-811949 GEAR
2.5:1 RATIOGEAR
2.5:1 RATIO -
62811947 REVERSING SHAFT
2.5:1 RATIOREVERSING SHAFT
2.5:1 RATIO -
63811946 INTERMEDIATE SHAFT
2.5:1 RATIOINTERMEDIATE SHAFT
2.5:1 RATIO -
6443-811945 GEAR
2.5:1 RATIOGEAR
2.5:1 RATIO
