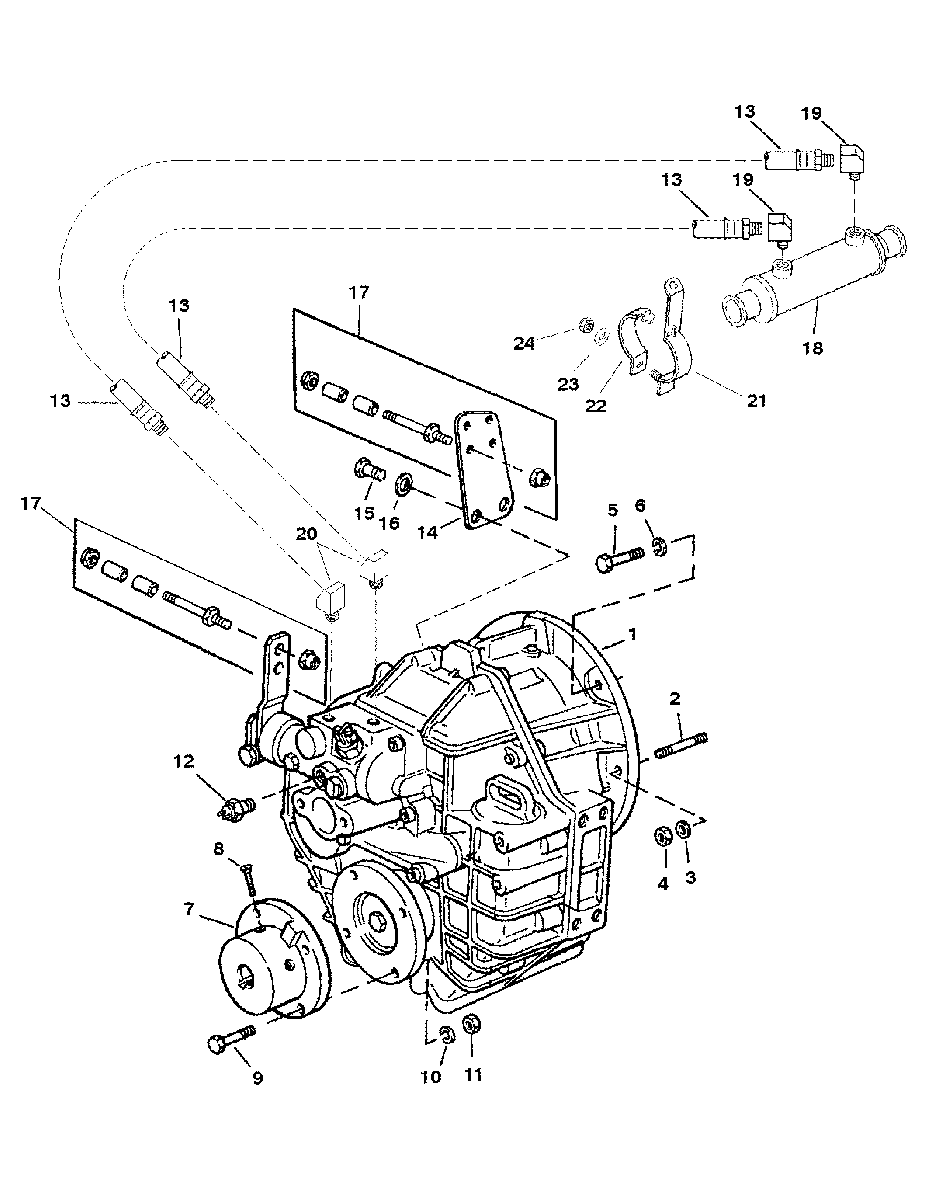

TRANSMISSION AND RELATED PARTS (HURTH 630) для Mercruiser - 5.7L MIE GM 350 V-8 1997 0K040307 THRU 0K999999
-
№АртикулНазвание
-
1863744T2 TRANSMISSION
(1.5:1 RATIO) IN-LINE TRANSMISSIONTRANSMISSION
(1.5:1 RATIO) IN-LINE TRANSMISSION -
1863744T3 TRANSMISSION
(2.0:1 RATIO) IN-LINE TRANSMISSIONTRANSMISSION
(2.0:1 RATIO) IN-LINE TRANSMISSION -
1863744T4 TRANSMISSION
(2.5:1 RATIO) IN-LINE TRANSMISSIONTRANSMISSION
(2.5:1 RATIO) IN-LINE TRANSMISSION -
1863745T2 TRANSMISSION
(1.5:1 RATIO) V-DRIVE TRANSMISSIONTRANSMISSION
(1.5:1 RATIO) V-DRIVE TRANSMISSION -
1863745T3 TRANSMISSION
(2.0:1 RATIO) V-DRIVE TRANSMISSIONTRANSMISSION
(2.0:1 RATIO) V-DRIVE TRANSMISSION -
1863745T4 TRANSMISSION
(2.5:1 RATIO) V-DRIVE TRANSMISSIONTRANSMISSION
(2.5:1 RATIO) V-DRIVE TRANSMISSION -
216-805259 STUDSTUD
-
312-22248 WASHERWASHER
-
411-34933 NUT (7/16-20)NUT (7/16-20)
-
510-47462 SCREW (7/16-14 X 1-1/4 IN.)SCREW (7/16-14 X 1-1/4 IN.)
-
613-32993 LOCKWASHER (7/16 IN.)LOCKWASHER (7/16 IN.)
-
787917A1 FLANGE ASSEMBLY (4 X 1 IN.)FLANGE ASSEMBLY (4 X 1 IN.)
-
779476A1 FLANGE ASSEMBLY (5 X 1 IN.)FLANGE ASSEMBLY (5 X 1 IN.)
-
779476A2 FLANGE ASSEMBLY (5 X 1-1/8 IN.)FLANGE ASSEMBLY (5 X 1-1/8 IN.)
-
779476A3 FLANGE ASSEMBLY (5 X 1-1/4 IN.)FLANGE ASSEMBLY (5 X 1-1/4 IN.)
-
779476A4 FLANGE ASSEMBLY (5 X 1-3/8 IN.)FLANGE ASSEMBLY (5 X 1-3/8 IN.)
-
779476A5 FLANGE ASSEMBLY (5 X 1-1/2 IN.)FLANGE ASSEMBLY (5 X 1-1/2 IN.)
-
779476A6 FLANGE ASSEMBLY (5 X 1-3/4 IN.)FLANGE ASSEMBLY (5 X 1-3/4 IN.)
-
779476A7 FLANGE ASSEMBLY (5 X 2 IN.)FLANGE ASSEMBLY (5 X 2 IN.)
-
810-60171 SCREW-FLANGE (3/8-16 X 1-1/4 IN.)SCREW-FLANGE (3/8-16 X 1-1/4 IN.)
-
810-60169 SCREW-FLANGE (3/8-16 X 3/4 IN.)SCREW-FLANGE (3/8-16 X 3/4 IN.)
-
910-68101 SCREW (3/8-16 X 1-1/4 IN.)
4 IN. FLANGESCREW (3/8-16 X 1-1/4 IN.)
4 IN. FLANGE -
1013-35048 LOCKWASHER (3/8 IN.)
4 IN. FLANGELOCKWASHER (3/8 IN.)
4 IN. FLANGE -
1111-32219 NUT (3/8-16)
4 IN. FLANGENUT (3/8-16)
4 IN. FLANGE -
910-805159 SCREW-FLANGE (7/16-20 X 1-1/2 IN.)
5 IN. FLANGESCREW-FLANGE (7/16-20 X 1-1/2 IN.)
5 IN. FLANGE -
1013-32993 LOCKWASHER (7/16 IN.)
5 IN. FLANGELOCKWASHER (7/16 IN.)
5 IN. FLANGE -
1111-22024 NUT (7/16-20)
5 IN. FLANGENUT (7/16-20)
5 IN. FLANGE -
1287-88031 SWITCH-TEMPERATURESWITCH-TEMPERATURE
-
1332-4751613 HOSE-OILHOSE-OIL
-
14806238 BRACKET-SHIFT LINKAGEBRACKET-SHIFT LINKAGE
-
1510-40001124 SCREW (M8 X 14)SCREW (M8 X 14)
-
1613-400247 LOCKWASHER (M8)LOCKWASHER (M8)
-
1716-97477A3 STUD KITSTUD KIT
-
1863832A1 COOLER-OILCOOLER-OIL
-
1922-47629 ELBOW (90 DEG.)ELBOW (90 DEG.)
-
2022-63835 ELBOW (45 DEG.)ELBOW (45 DEG.)
-
21807402T1 BRACKETBRACKET
-
22807445T CLAMPCLAMP
-
2312-35462 WASHERWASHER
-
2411-8267088 NUT (1/4-20)NUT (1/4-20)
