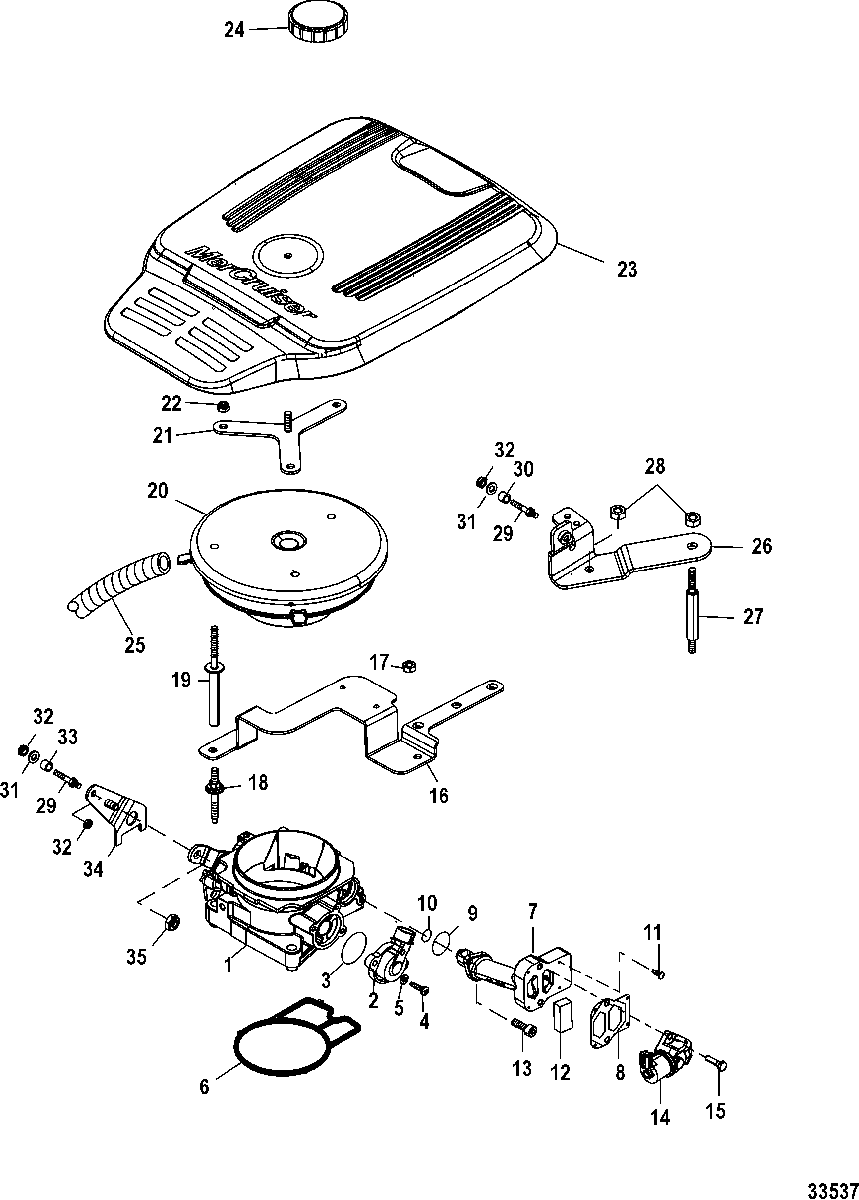

Throttle Body, Mechanical для Mercruiser - 5.7L MPI HORIZON MIE 1A090000 THRU 1A092168
-
№АртикулНазвание
-
18M0096994 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
28M0097035 SENSOR, TPSSENSOR, TPS
-
3NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
4NSS NOT SOLD SEPARATE, SCREW KIT, TPSNOT SOLD SEPARATE, SCREW KIT, TPS
-
5NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
627-8M4502066 GASKET, Throttle BodyGASKET, Throttle Body
-
7866295A02 IAC ADAPTOR KITIAC ADAPTOR KIT
-
8NSS NOT SOLD SEPARATE, GasketNOT SOLD SEPARATE, Gasket
-
925-863006 O-RINGO-RING
-
1025-808547 O-RINGO-RING
-
11NSS NOT SOLD SEPARATE, Screw-DriveNOT SOLD SEPARATE, Screw-Drive
-
1235-8M2001030 FILTERFILTER
-
1310-4008612 SCREW, (M4 x 12)SCREW, (M4 x 12)
-
14862998 VALVE, Idle AirVALVE, Idle Air
-
1510-4008820 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
16863647T BRACKETBRACKET
-
1711-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1816-8M0088142 STUDSTUD
-
1916-864338 STUD, SpecialSTUD, Special
-
20863416T FLAME ARRESTORFLAME ARRESTOR
-
21863423 BRACKET, Cover MountBRACKET, Cover Mount
-
2211-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
23879288T67 COVER, Silver, EngineCOVER, Silver, Engine
-
2411-863701 KNOB, Engine CoverKNOB, Engine Cover
-
2532-8M0086022 HOSE, (16.50 Inches Bulk), BreatherHOSE, (16.50 Inches Bulk), Breather
-
26863420T BRACKET, Throttle AnchorBRACKET, Throttle Anchor
-
2716-863439 STUDSTUD
-
2811-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2916-97477A3 STUD KIT, Throttle AnchorSTUD KIT, Throttle Anchor
-
3023-31866 SPACER, (.256 x .313 x .625)SPACER, (.256 x .313 x .625)
-
3023-11284 SPACER, (.62 Diameter)SPACER, (.62 Diameter)
-
3112-20533 WASHERWASHER
-
3211-8267139 NUT, (.250-28)NUT, (.250-28)
-
33NSS NOT SOLD SEPARATE, SpacerNOT SOLD SEPARATE, Spacer
-
34863417 BRACKET, ThrottleBRACKET, Throttle
-
3511-8267138 NUT, (.25-20)NUT, (.25-20)
