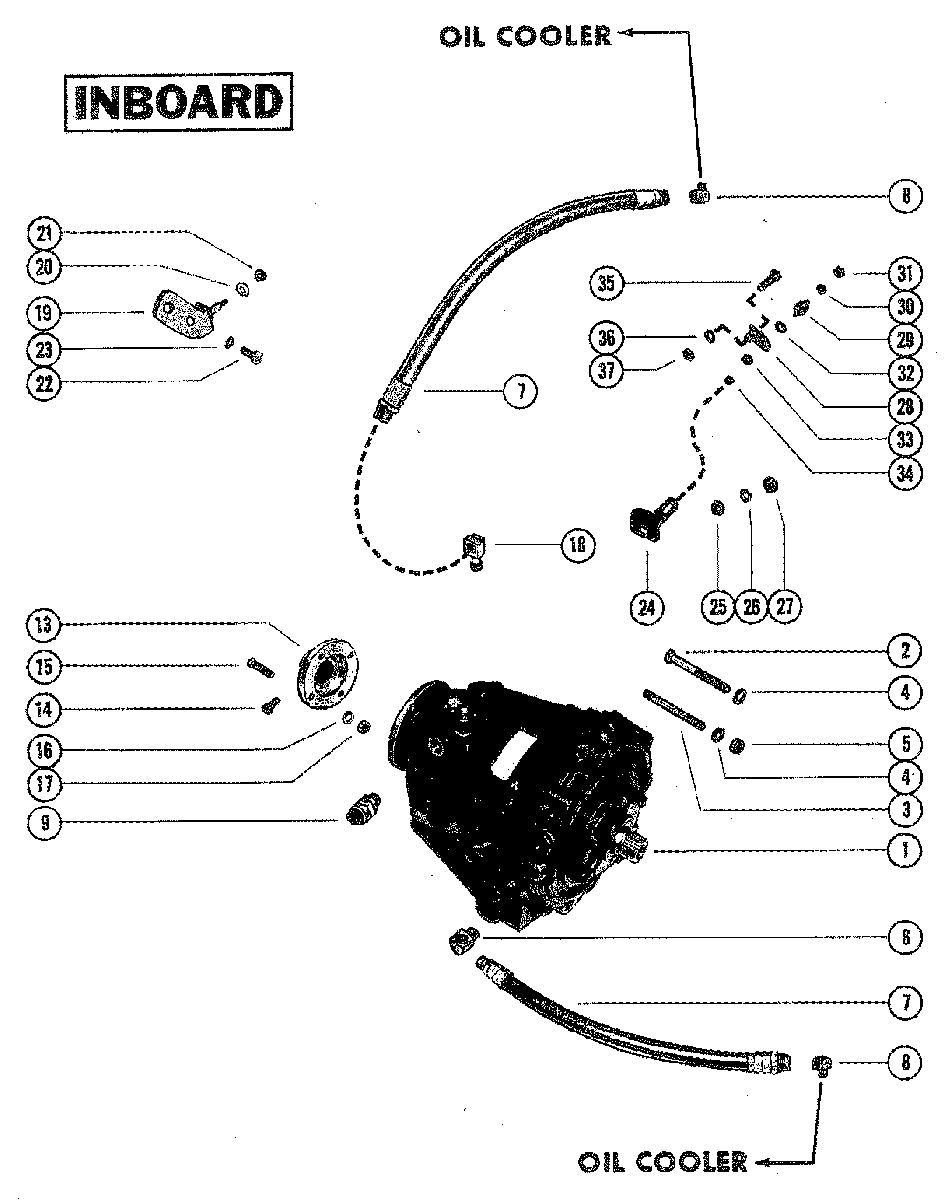

TRANSMISSION AND RELATED PARTS (INBOARD) для Mercruiser - 898 (2 BBL.) GM 305 V-8 1977-1982 4762210 THRU 6218461
-
№АртикулНазвание
-
147805A7 TRANSMISSION (DIRECT DRIVE)TRANSMISSION (DIRECT DRIVE)
-
147806R07 TRANSMISSION (1.523:1 REDUCTION)TRANSMISSION (1.523:1 REDUCTION)
-
147807A7 TRANSMISSION (1.909:1 REDUCTION)TRANSMISSION (1.909:1 REDUCTION)
-
147808R07 TRANSMISSION (2.57:1 REDUCTION)TRANSMISSION (2.57:1 REDUCTION)
-
147809A7 TRANSMISSION (2.909:1 REDUCTION)TRANSMISSION (2.909:1 REDUCTION)
-
210-47724 SCREW, TRANSMISSION TO ENGINE (3")SCREW, TRANSMISSION TO ENGINE (3")
-
210-60179 SCREW, TRANSMISSION TO ENGINE (3 1/2")SCREW, TRANSMISSION TO ENGINE (3 1/2")
-
316-57921 STUD, TRANSMISSION TO ENGINE (4")STUD, TRANSMISSION TO ENGINE (4")
-
413-32993 LOCKWASHER, TRANSMISSION SCREW AND STUDLOCKWASHER, TRANSMISSION SCREW AND STUD
-
511-22024 NUT, TRANSMISSION STUDNUT, TRANSMISSION STUD
-
622-47629 ELBOW, HOSE TO TRANSMISSION (90 DEGREE)ELBOW, HOSE TO TRANSMISSION (90 DEGREE)
-
622-63835 ELBOW, HOSE TO TRANSMISSION (45 DEGREE)ELBOW, HOSE TO TRANSMISSION (45 DEGREE)
-
732-475166 HOSE, TRANSMISSION TO OIL COOLER (28")HOSE, TRANSMISSION TO OIL COOLER (28")
-
732-4751612 HOSE, TRANSMISSION TO OIL COOLER (20")HOSE, TRANSMISSION TO OIL COOLER (20")
-
732-475169 HOSE, TRANSMISSION TO OIL COOLER (37")HOSE, TRANSMISSION TO OIL COOLER (37")
-
822-47629 ELBOW, HOSE TO OIL COOLERELBOW, HOSE TO OIL COOLER
-
947613 SWITCH, NEUTRAL SAFETYSWITCH, NEUTRAL SAFETY
-
1084-73125A1 HARNESS, NEUTRAL SAFETY SWITCHHARNESS, NEUTRAL SAFETY SWITCH
-
1113-26996 LOCKWASHER, HARNESS ATTACHINGLOCKWASHER, HARNESS ATTACHING
-
1211-68219 NUT, HARNESS ATTACHINGNUT, HARNESS ATTACHING
-
1387917A1 FLANGGE ASSEMBLY (1")SEE NOTE AFLANGGE ASSEMBLY (1")SEE NOTE A
-
1387917A2 FLANGE ASSEMBLY (1 1/8")FLANGE ASSEMBLY (1 1/8")
-
1387917A3 FLANGE ASSEMBLY (1 1/4")FLANGE ASSEMBLY (1 1/4")
-
1348384A1 FLANGE ASSEMBLY (1 3/8")FLANGE ASSEMBLY (1 3/8")
-
1387917A5 FLANGE ASSEMBLY 1 1/2")FLANGE ASSEMBLY 1 1/2")
-
1379476A1 FLANGE ASSEMBLY (1")SEE NOTE BFLANGE ASSEMBLY (1")SEE NOTE B
-
1379476A2 FLANGE ASSEMBLY (1 1/8")FLANGE ASSEMBLY (1 1/8")
-
1379476A3 FLANGE ASSEMBLY (1 1/4")FLANGE ASSEMBLY (1 1/4")
-
1379476A4 FLANGE ASSEMBLY (1 3/8")FLANGE ASSEMBLY (1 3/8")
-
1379476A5 FLANGE ASSEMBLY (1 1/2")FLANGE ASSEMBLY (1 1/2")
-
1410-60168 SCREW, FLANGE TO PROPELLER SHAFT (1 1/2)SCREW, FLANGE TO PROPELLER SHAFT (1 1/2)
-
1410-60171 SCREW, FLANGE TO PROPELLER SHAFT (1 1/4")SCREW, FLANGE TO PROPELLER SHAFT (1 1/4")
-
1410-60171 SCREW, FLANGE TO PROPELLER SHAFT (1")SCREW, FLANGE TO PROPELLER SHAFT (1")
-
1410-60169 SCREW, FLANGE TO PROPELLER SHAFT (3/4")SCREW, FLANGE TO PROPELLER SHAFT (3/4")
-
1510-37909 SCREW, FLANGE TO TRANSMISSION (1 1/8")SCREW, FLANGE TO TRANSMISSION (1 1/8")
-
1613-35048 LOCKWASHER, TRANSMISSION FLANGE SCREWLOCKWASHER, TRANSMISSION FLANGE SCREW
-
1711-46335 NUT, TRANSMISSION FLANGE SCREWNUT, TRANSMISSION FLANGE SCREW
-
1510-60106 SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")SCREW, TRANSMISSION FLANGE TO PROPELLER FLANGE (1 1/4")
-
1613-32993 LOCKWASHER, FLANGE SCREWLOCKWASHER, FLANGE SCREW
-
1711-22024 NUT, FLANGE SCREWNUT, FLANGE SCREW
-
1822-47629 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
-
1822-63824 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
-
1963815A1 BRACKET, SHIFT CABLEBRACKET, SHIFT CABLE
-
2012-56681 WASHER, SHIFT CABLE TO BRACKET STUDWASHER, SHIFT CABLE TO BRACKET STUD
-
2111-46438 NUT, SHIFT CABLE TO BRACKET STUD (10-32)NUT, SHIFT CABLE TO BRACKET STUD (10-32)
-
2210-65746 SCREW, BRACKET TO TRANSMISSION (3/4")SCREW, BRACKET TO TRANSMISSION (3/4")
-
2313-26992 LOCKWASHER, BRACKET SCREWLOCKWASHER, BRACKET SCREW
-
2448515 LEVER, SHIFT - TRANSMISSIONLEVER, SHIFT - TRANSMISSION
-
2512-20722 WASHER, SHIFT LEVERWASHER, SHIFT LEVER
-
2613-26993 LOCKWASHER, SHIFT LEVERLOCKWASHER, SHIFT LEVER
-
2711-22053 NUT, SHIFT LEVERNUT, SHIFT LEVER
-
2848652 ADAPTOR, SHIFT CABLEADAPTOR, SHIFT CABLE
-
2916-48680 STUD, SHIFT CABLE ADAPTORSTUD, SHIFT CABLE ADAPTOR
-
3012-20533 WASHER, SHIFT CABLE ADAPTORWASHER, SHIFT CABLE ADAPTOR
-
3111-20184 NUT, SHIFT CABLE ADAPTORNUT, SHIFT CABLE ADAPTOR
-
3213-29402 WAVE WASHER, SHIFT CABLEWAVE WASHER, SHIFT CABLE
-
3312-56681 WASHER, SHIFT CABLE ADAPTORWASHER, SHIFT CABLE ADAPTOR
-
3411-46438 NUT, SHIFT CABLE ADAPTOR STUDNUT, SHIFT CABLE ADAPTOR STUD
-
3510-20639 SCREW, SHIFT CABLE TO ADAPTORSCREW, SHIFT CABLE TO ADAPTOR
-
3612-22753 WASHER, SHIFT CABLE SCREWWASHER, SHIFT CABLE SCREW
-
3711-29250 NUT, SHIFT CABLE SCREWNUT, SHIFT CABLE SCREW
