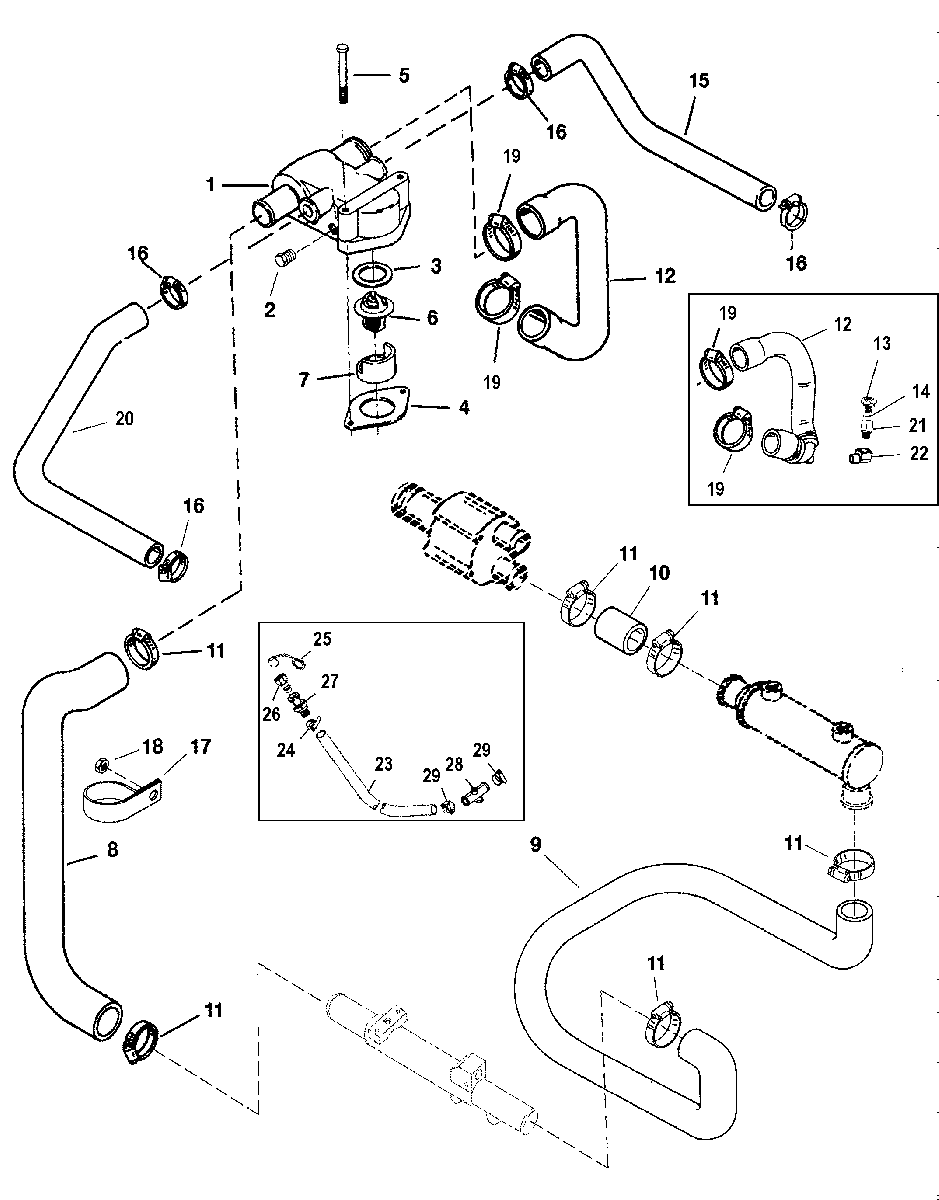

STANDARD COOLING SYSTEM для Mercruiser - BLACK SCORPION 350 MAG SKI (GEN+) V-8 1997-2001 0K040001 THRU 0M391599
-
№АртикулНазвание
-
1860256A4 HOUSING ASSEMBLY-THERMOSTATHOUSING ASSEMBLY-THERMOSTAT
-
222-32803 PLUG-PIPE (3/8 IN.)PLUG-PIPE (3/8 IN.)
-
327-806871 GASKET-THERMOSTATGASKET-THERMOSTAT
-
427-530451 GASKETGASKET
-
510-47688 SCREW (3/8-16 X 2-3/4 IN.)SCREW (3/8-16 X 2-3/4 IN.)
-
68M0109441 THERMOSTAT (160 DEG.)THERMOSTAT (160 DEG.)
-
723-806922 SLEEVESLEEVE
-
832-808033 HOSE-THERMOSTAT HOUSING TO FUEL COOLERHOSE-THERMOSTAT HOUSING TO FUEL COOLER
-
932-808032 HOSE-FUEL COOLER TO TRANSMISSION OIL COOLERHOSE-FUEL COOLER TO TRANSMISSION OIL COOLER
-
1032-866331 HOSE-TRANSMISSION OIL COOLER TO SEA WATER PUMP
(Cut to 4 IN.)HOSE-TRANSMISSION OIL COOLER TO SEA WATER PUMP
(Cut to 4 IN.) -
1154-815504222 CLAMP-HOSE
(1.98 Dia.)CLAMP-HOSE
(1.98 Dia.) -
1232-861590A05 HOSE-THERMOSTAT HOUSING TO WATER PUMP
(Use W/O Drain Plug)HOSE-THERMOSTAT HOUSING TO WATER PUMP
(Use W/O Drain Plug) -
1232-861590A05 HOSE-THERMOSTAT HOUSING TO WATER PUMP
(Use W/ Drain Plug)HOSE-THERMOSTAT HOUSING TO WATER PUMP
(Use W/ Drain Plug) -
1322-8M0119211 DRAIN PLUGDRAIN PLUG
-
1425-62706 O RINGO RING
-
1532-807697 HOSE-THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLDHOSE-THERMOSTAT HOUSING TO STARBOARD EXHAUST MANIFOLD
-
1654-815504216 CLAMP-HOSE
(1.56 Dia.)CLAMP-HOSE
(1.56 Dia.) -
1754-816398 CLIPCLIP
-
1811-29250 NUT (5/16-24)NUT (5/16-24)
-
1954-815504232 CLAMP
(2.50 Dia.)CLAMP
(2.50 Dia.) -
2032-8066351 HOSE-THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLDHOSE-THERMOSTAT HOUSING TO PORT EXHAUST MANIFOLD
-
2122-860088 FITTINGFITTING
-
2222-46982 FITTING (90 Degree)FITTING (90 Degree)
-
2332-8M0062634 HOSE (Cut to 39 IN.)
(6.2L)HOSE (Cut to 39 IN.)
(6.2L) -
2454-815504512 CLAMP (1.30 Dia.)
(6.2L)CLAMP (1.30 Dia.)
(6.2L) -
2519-858240 DUST CAP
(6.2L)DUST CAP
(6.2L) -
2622-857175 PLUG-QUICK CONNECT
(6.2L)PLUG-QUICK CONNECT
(6.2L) -
2722-861406 SOCKET-QUICK CONNECT
(6.2L)SOCKET-QUICK CONNECT
(6.2L) -
2822-862993 Y-FITTING
(6.2L)Y-FITTING
(6.2L) -
2954-815504520 CLAMP (1.75 Dia.)
(6.2L)CLAMP (1.75 Dia.)
(6.2L) -
-19-8M0074364 COVER-HOSE CLAMP ENDCOVER-HOSE CLAMP END
-
-27-807670A96 GASKET SET-ENGINE OVERHAULGASKET SET-ENGINE OVERHAUL
