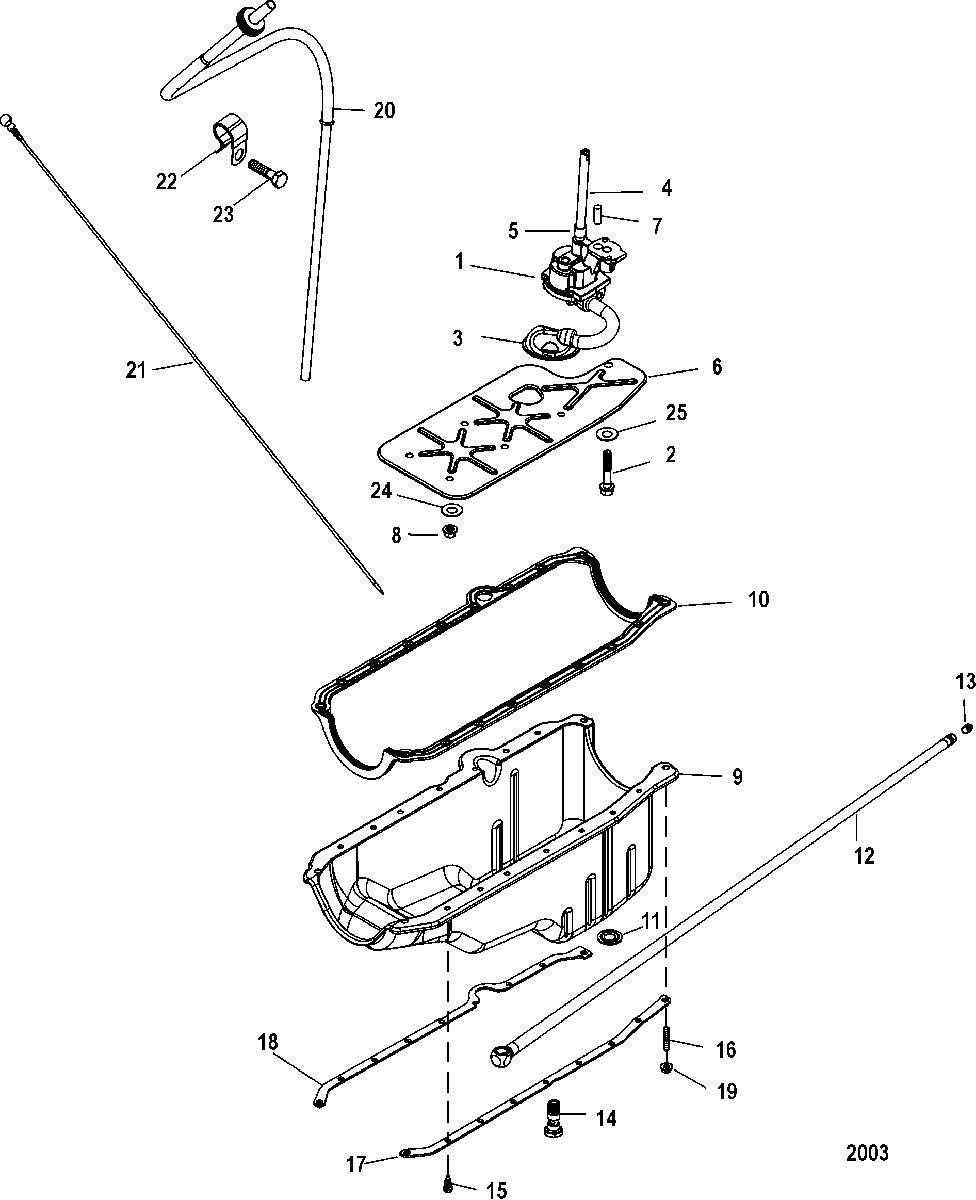

Oil Pan And Oil Pump для Mercruiser - BLACK SCORPION MX 6.2L MPI 0M391750 THRU 0W689999
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLYPUMP ASSEMBLY
-
210-17346 SCREW, Oil PumpSCREW, Oil Pump
-
3809909 SCREEN, Oil Pump Pick-UpSCREEN, Oil Pump Pick-Up
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 DEFLECTOR, OilDEFLECTOR, Oil
-
717-843378 PIN, Dowel (1/4 In. Diameter), Alignment, Oil PumpPIN, Dowel (1/4 In. Diameter), Alignment, Oil Pump
-
811-845602 NUT, (.375-16)NUT, (.375-16)
-
9809910 PAN, OilPAN, Oil
-
1027-138651 GASKET, Oil PanGASKET, Oil Pan
-
1127-8M0077608 GASKET, DrainGASKET, Drain
-
1232-805505A1 HOSE ASSEMBLYHOSE ASSEMBLY
-
1322-805506 PLUG, Oil Drain HosePLUG, Oil Drain Hose
-
14807497 BOLT, Banjo (M12)BOLT, Banjo (M12)
-
1510-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1616-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1714257 REINFORCEMENT
(Port)REINFORCEMENT
(Port) -
1814256 REINFORCEMENT
(Starboard)REINFORCEMENT
(Starboard) -
1911-11971 NUT, (.312-18)NUT, (.312-18)
-
20860274A2 TUBE ASSEMBLYTUBE ASSEMBLY
-
21861942T7 DIPSTICKDIPSTICK
-
2254-805625 CLIP, Dipsitck TubeCLIP, Dipsitck Tube
-
2310-8M0040582 SCREWSCREW
-
2412-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2512-27339 WASHERWASHER
-
NS10-809911001 SCREW, Oil Drain (M12 x 1.75)SCREW, Oil Drain (M12 x 1.75)
