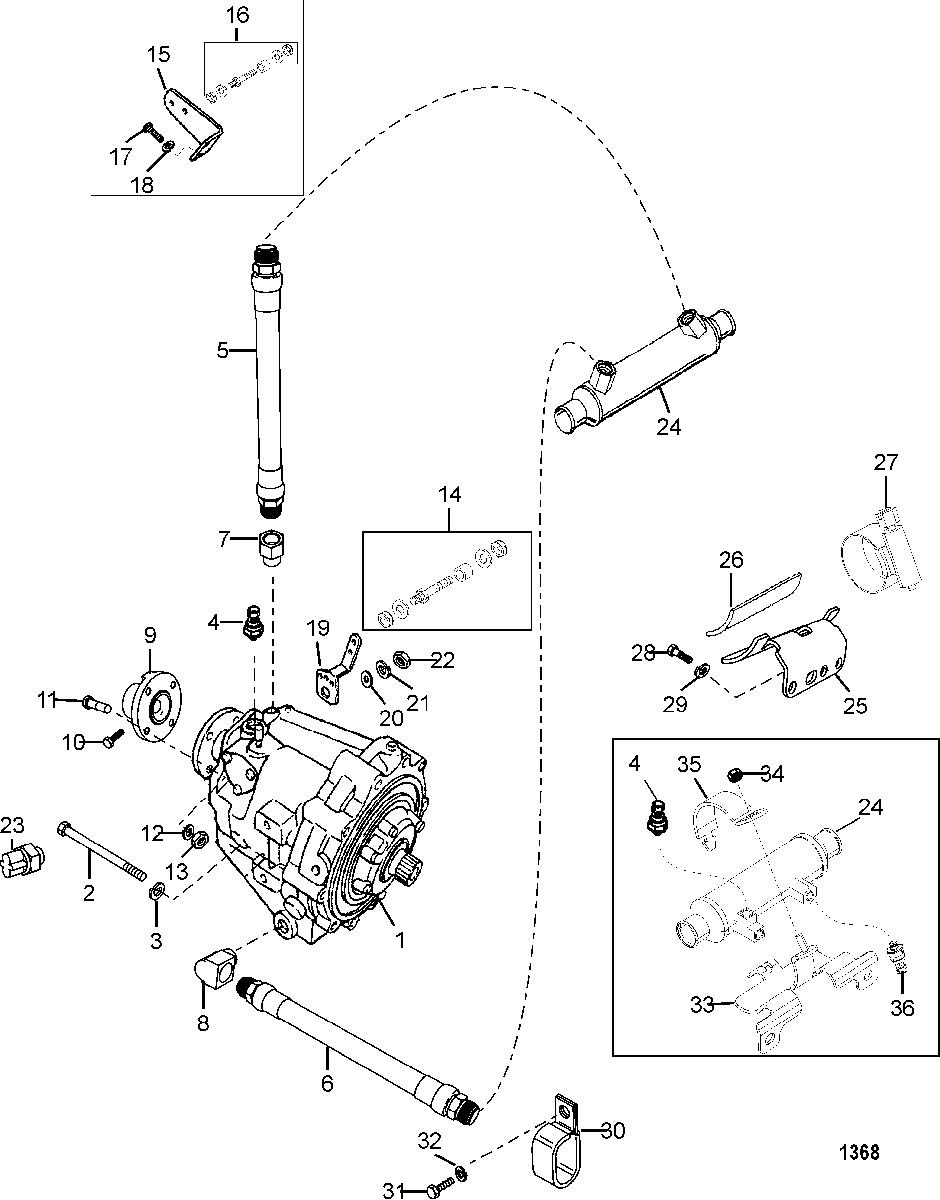

Transmission And Related Parts(Borg-Warner 71C And 72C) для Mercruiser - MX 6.2L MPI HORIZON MIE 0M310000 THRU 0M316999
-
№АртикулНазвание
-
147805A7 TRANSMISSION ASSEMBLY
(71C) (1.1:1)TRANSMISSION ASSEMBLY
(71C) (1.1:1) -
147810A19 TRANSMISSION
(72C) (1.1:1)TRANSMISSION
(72C) (1.1:1) -
160961A6 TRANSMISSION
(72C V-Drive) (2.5:1 Left Hand Rotation)TRANSMISSION
(72C V-Drive) (2.5:1 Left Hand Rotation) -
160961A8 TRANSMISSION
(72C V-Drive) (2.5:1 Right Hand Rotation)TRANSMISSION
(72C V-Drive) (2.5:1 Right Hand Rotation) -
210-60179 SCREW, (.437-14 x 3.500)SCREW, (.437-14 x 3.500)
-
313-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
487-88031 SWITCH ASSEMBLY, TemperatureSWITCH ASSEMBLY, Temperature
-
532-8054781 HOSE, (19.50), Oil
(In Line Transmission) SN# 0M313034 & BelowHOSE, (19.50), Oil
(In Line Transmission) SN# 0M313034 & Below -
532-8054782 HOSE, (23.00 Inches), Oil
(In Line Transmission) SN# 0M313035 & UpHOSE, (23.00 Inches), Oil
(In Line Transmission) SN# 0M313035 & Up -
532-475169 HOSE ASSEMBLY, (37.00 Inches), Oil
(V-Drive Transmission)HOSE ASSEMBLY, (37.00 Inches), Oil
(V-Drive Transmission) -
632-475166 HOSE ASSEMBLY, (30.00 Inches), Oil
(In Line Transmission) SN# 0M313034 & BelowHOSE ASSEMBLY, (30.00 Inches), Oil
(In Line Transmission) SN# 0M313034 & Below -
632-8054781 HOSE, (19.50), Oil
(In Line Transmission) SN# 0M313035 & UpHOSE, (19.50), Oil
(In Line Transmission) SN# 0M313035 & Up -
632-4751613 HOSE, (49.00 Inches), Oil
(V-Drive Transmission)HOSE, (49.00 Inches), Oil
(V-Drive Transmission) -
722-88517 FITTING, Reducing, StraightFITTING, Reducing, Straight
-
722-63835 ELBOW, 45 DegreeELBOW, 45 Degree
-
822-47629 ELBOW, 90 DegreeELBOW, 90 Degree
-
987917A1 FLANGE ASSEMBLY, (4.00 x 1.00)FLANGE ASSEMBLY, (4.00 x 1.00)
-
979476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
979476A2 FLANGE ASSEMBLY, (5.00 x 1.125)FLANGE ASSEMBLY, (5.00 x 1.125)
-
979476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
979476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
979476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
979476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
979476A7 FLANGE ASSEMBLY, (5.00 x 2.00)FLANGE ASSEMBLY, (5.00 x 2.00)
-
1010-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1010-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1110-68101 SCREW, (.375-16 x 1.375)
(4.00 Inch Flange)SCREW, (.375-16 x 1.375)
(4.00 Inch Flange) -
1110-805159 SCREW, (.437-20 x 1.500)
(5.00 Inch Flange)SCREW, (.437-20 x 1.500)
(5.00 Inch Flange) -
1213-35048 LOCKWASHER, (.375)
(4.00 Inch Flange)LOCKWASHER, (.375)
(4.00 Inch Flange) -
1213-32993 LOCKWASHER, (.437)
(5.00 Inch Flange)LOCKWASHER, (.437)
(5.00 Inch Flange) -
1311-32219 NUT, (.375-16)
(4.00 Inch Flange)NUT, (.375-16)
(4.00 Inch Flange) -
1311-22024 NUT, (.437-14)
(5.00 Inch Flange)NUT, (.437-14)
(5.00 Inch Flange) -
1416-97477A3 STUD KITSTUD KIT
-
1518351A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1616-97477A3 STUD KITSTUD KIT
-
1710-54615 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1943325 LEVERLEVER
-
2012-20722 WASHER, (.328 x .625 x .060)WASHER, (.328 x .625 x .060)
-
2113-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2211-22053 NUT, (.312-24)NUT, (.312-24)
-
2347613 SWITCH, Neutral SafetySWITCH, Neutral Safety
-
24863832T01 COOLER, Transmission Oil
(In Line 1.1:1) SN# 0M313034 & BelowCOOLER, Transmission Oil
(In Line 1.1:1) SN# 0M313034 & Below -
24863842T02 COOLER, Transmission Oil
(In Line 1.1:1) SN# 0M313035 & UpCOOLER, Transmission Oil
(In Line 1.1:1) SN# 0M313035 & Up -
24863832T01 COOLER, Transmission Oil
(72C V-Drive)COOLER, Transmission Oil
(72C V-Drive) -
25805546A2 BRACKET, Transmission Oil CoolerBRACKET, Transmission Oil Cooler
-
26772233 PADPAD
-
2754-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
2810-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
2913-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3054-97521 CLAMP, Double Hose
(V-Drive Transmission)CLAMP, Double Hose
(V-Drive Transmission) -
3110-92913 SCREW, (.437-14 x .750)
(V-Drive Transmission)SCREW, (.437-14 x .750)
(V-Drive Transmission) -
3213-32993 LOCKWASHER, (.437)
(V-Drive Transmission)LOCKWASHER, (.437)
(V-Drive Transmission) -
33863850 BRACKET, CoolerBRACKET, Cooler
-
3411-8267088 NUT, (.250-20)NUT, (.250-20)
-
35807445T CLAMP, CoolerCLAMP, Cooler
-
368M6000623 SENSOR, PressureSENSOR, Pressure
