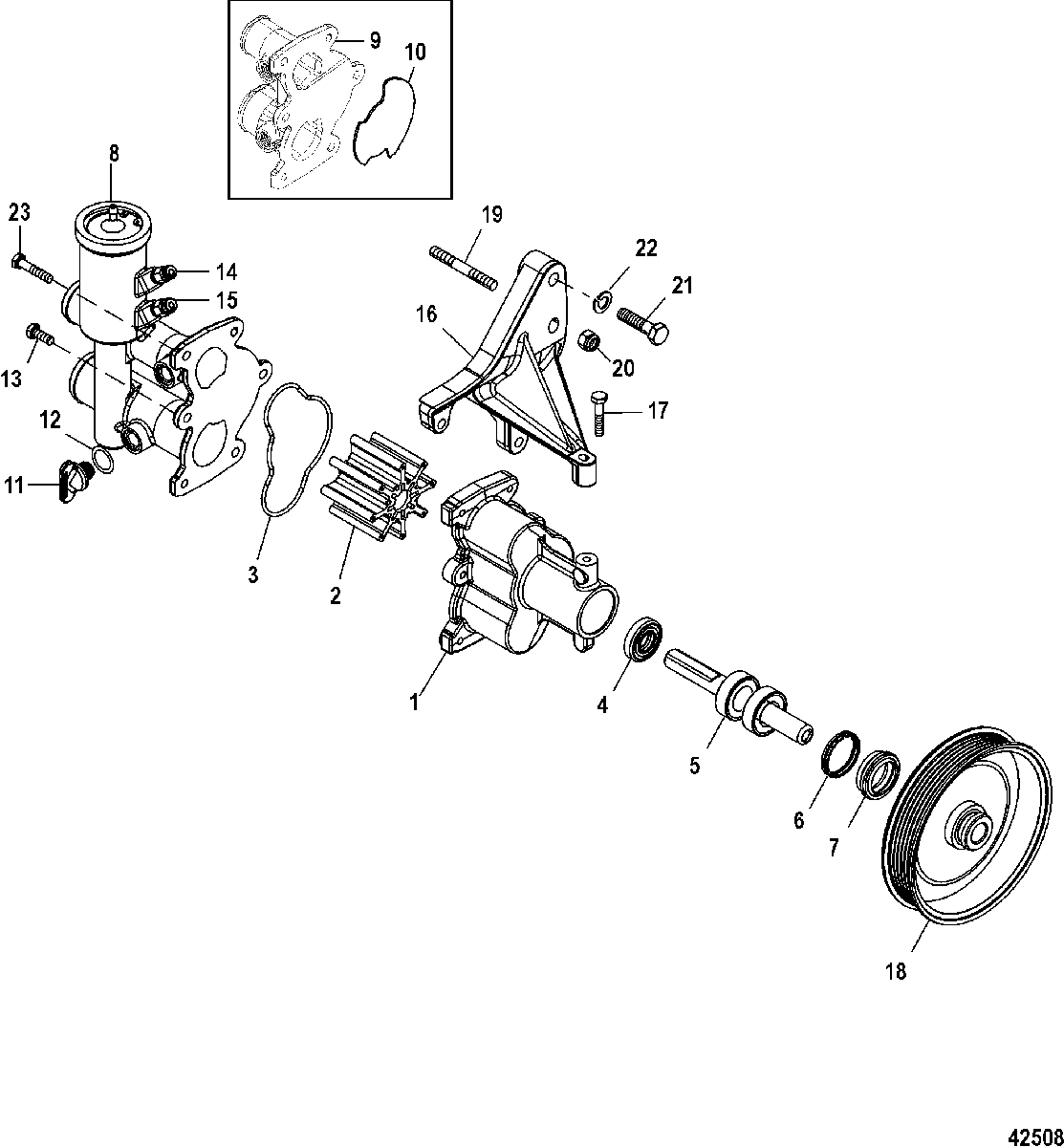

Sea Water Pump Assembly для Mercruiser - MX 6.2L MPI HORIZON MIE 0W690000 THRU 1A089999
-
№АртикулНазвание
-
-46-8M0137216 PUMP KIT, Sea Water
Without Air FittingsPUMP KIT, Sea Water
Without Air Fittings -
-46-8M0137217 PUMP KIT, Sea Water
With Air FittingsPUMP KIT, Sea Water
With Air Fittings -
18M0118062 HOUSING ASSEMBLY, ImpellerHOUSING ASSEMBLY, Impeller
-
247-8M0104229 IMPELLERIMPELLER
-
38M2021987 O-RING, Formed, Also included with Reference 8 and 9O-RING, Formed, Also included with Reference 8 and 9
-
426-8M2001645 SEAL, OilSEAL, Oil
-
58M0050018 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
6862039 TOLERANCE RINGTOLERANCE RING
-
726-862040 SEAL, LipSEAL, Lip
-
8863674A05 COVER KIT, Impeller Housing
With Air FittingsCOVER KIT, Impeller Housing
With Air Fittings -
9862776A01 COVER KIT, Impeller Housing
Without Air FittingsCOVER KIT, Impeller Housing
Without Air Fittings -
108M2014176 PLATE, Wear
Without Air FittingsPLATE, Wear
Without Air Fittings -
1122-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
1225-26802 SEALSEAL
-
1310-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1422-8M0082319 FITTING, Gray - Straight, Male Air
(.1562) Component of 46-862914T11FITTING, Gray - Straight, Male Air
(.1562) Component of 46-862914T11 -
1522-8M0082320 FITTING, Orange - Straight, Male Air
(.1875) Component of 46-862914T11FITTING, Orange - Straight, Male Air
(.1875) Component of 46-862914T11 -
16865143T01 BRACKET, Sea Water PumpBRACKET, Sea Water Pump
-
1710-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
18862351T PULLEYPULLEY
-
1916-863853 STUDSTUD
-
2011-82671112 NUT, (.375-16)NUT, (.375-16)
-
2110-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
2213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2310-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
