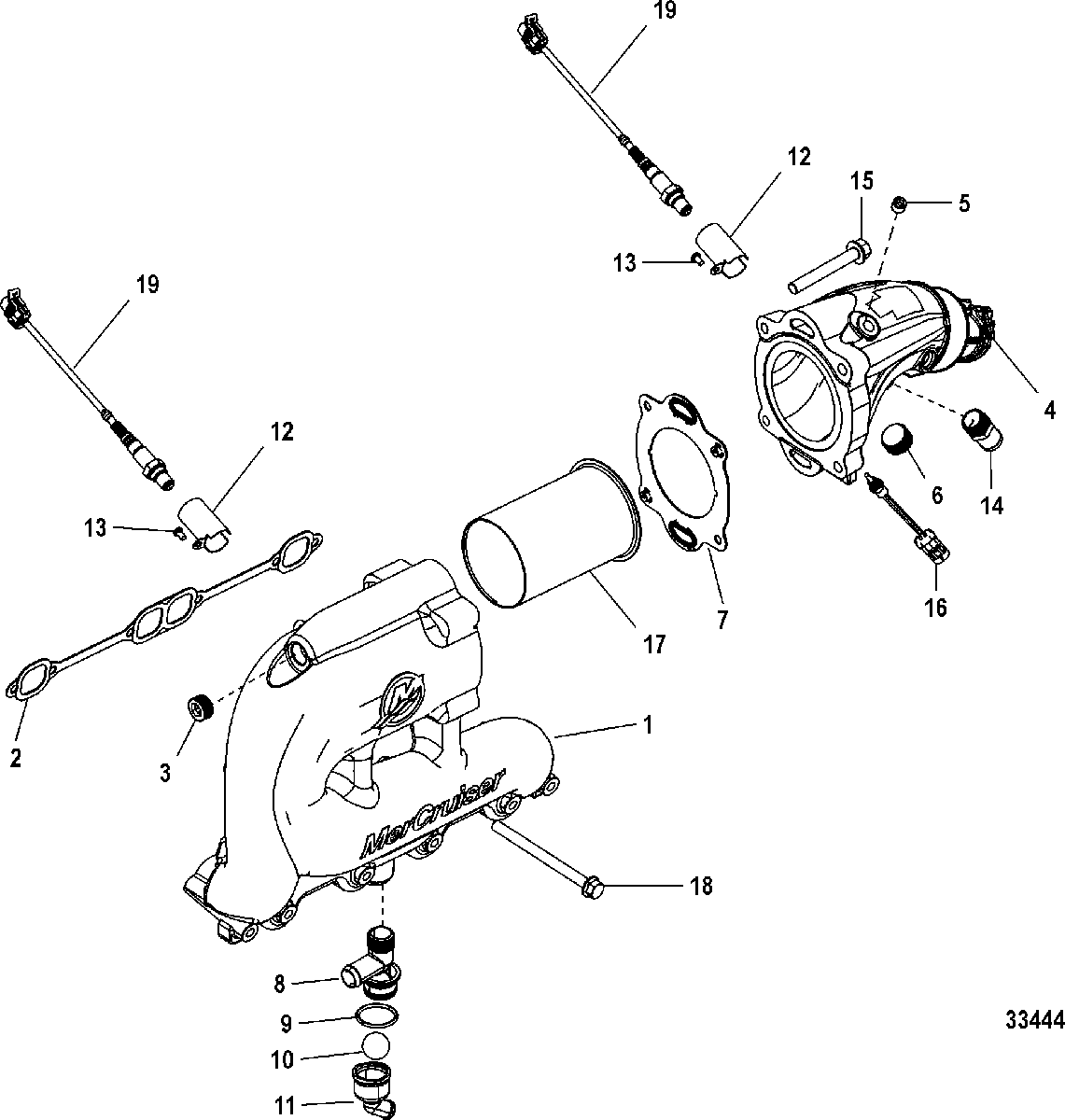

Exhaust Manifold and Elbow для Mercruiser - SCORPION 377 HO EC 1A091488 THRU 1A092170
-
№АртикулНазвание
-
18M0103773 MANIFOLD ASSEMBLY, Exhaust, StarboardMANIFOLD ASSEMBLY, Exhaust, Starboard
-
18M0103774 MANIFOLD ASSEMBLY, Exhaust, PortMANIFOLD ASSEMBLY, Exhaust, Port
-
227-8M2000819 GASKET, Head to ManifoldGASKET, Head to Manifold
-
322-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
48M0104207 ELBOW ASSEMBLY
No Riser, PortELBOW ASSEMBLY
No Riser, Port -
48M0104208 ELBOW ASSEMBLY
No Riser, StarboardELBOW ASSEMBLY
No Riser, Starboard -
522-73379 PLUG, (.250-18)PLUG, (.250-18)
-
622-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
727-8M2004414 GASKET, Elbow to ManifoldGASKET, Elbow to Manifold
-
822-863786A1 FITTING ASSEMBLY, Air Actuated DrainFITTING ASSEMBLY, Air Actuated Drain
-
925-864701 O-RING, (1.112 x .103)O-RING, (1.112 x .103)
-
1030-863129 BALL, CheckBALL, Check
-
11862994T FITTINGFITTING
-
128M2004597 BRACKET, CoverBRACKET, Cover
-
1310-8M2007128 SCREW, (1/4-20) Hex FlangeSCREW, (1/4-20) Hex Flange
-
1422-866725 FITTING, Straight (.750-14), ElbowFITTING, Straight (.750-14), Elbow
-
1510-668631 SCREW, (.375-16 x 2.500)SCREW, (.375-16 x 2.500)
-
16885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
17879288T25 CATALYSTCATALYST
-
1810-8M0144800 SCREW, (.375-16 x 4.75)SCREW, (.375-16 x 4.75)
-
198M2003959 SENSOR, OxygenSENSOR, Oxygen
