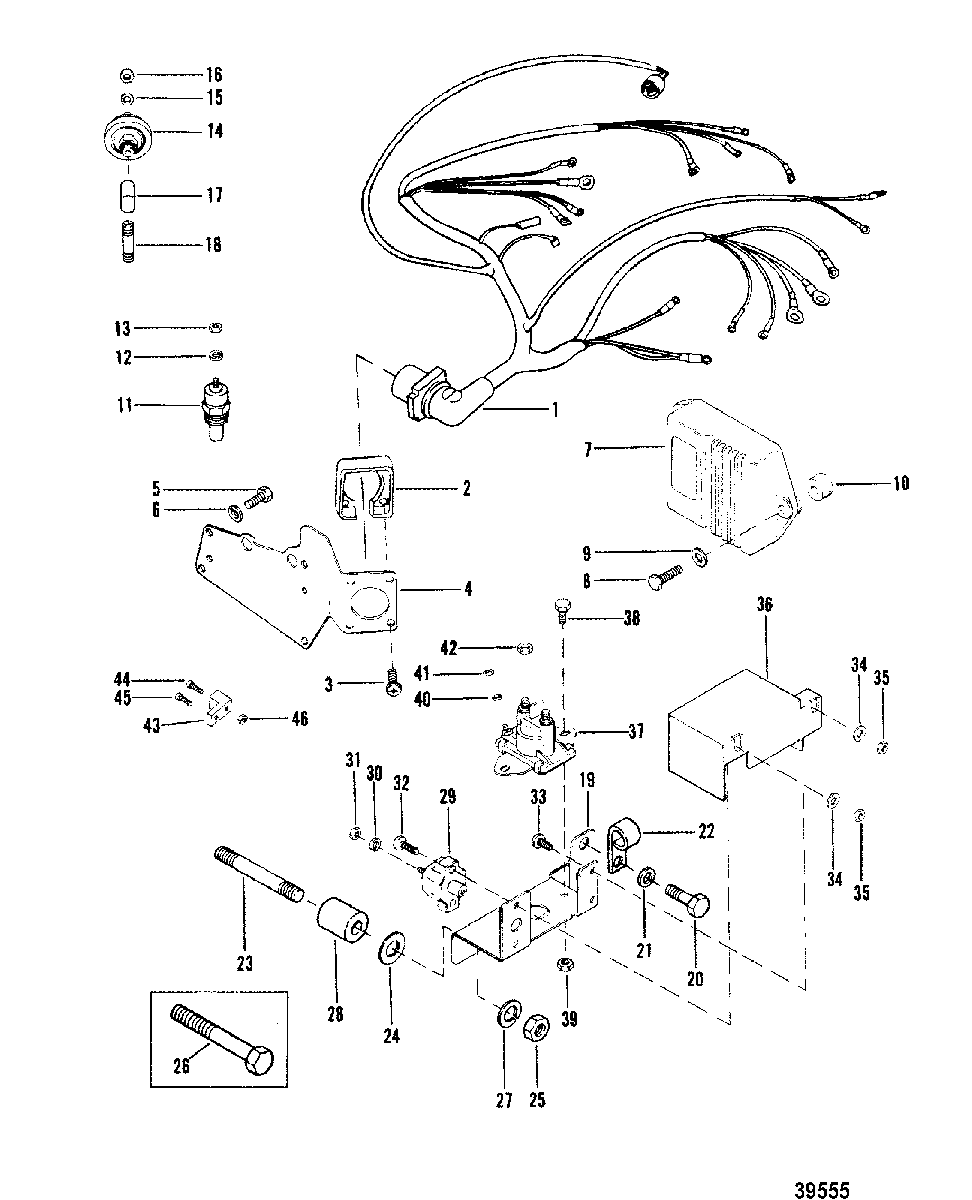

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 200 (2 BBL.) GM 305 V-81 1985-1986 6218462 THRU 0B525981
-
№АртикулНазвание
-
184-98423A14 HARNESS ASSEMBLY
(898/200)HARNESS ASSEMBLY
(898/200) -
184-98423A13 HARNESS ASSEMBLY
(228/230/260)HARNESS ASSEMBLY
(228/230/260) -
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-34696 SCREW, (#8-32 x .750), WIRING HARNESS PLATESCREW, (#8-32 x .750), WIRING HARNESS PLATE
-
498493A2 BRACKET, MOUNTINGBRACKET, MOUNTING
-
510-49668 SCREW, (.250-20 x .750), MOUNTING BRACKETSCREW, (.250-20 x .750), MOUNTING BRACKET
-
613-26992 LOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREWLOCKWASHER, (.250) Stainless Steel, MOUNTING BRACKET SCREW
-
715248T02 IGNITION AMPLIFIERIGNITION AMPLIFIER
-
810-76596 SCREW, (.250-20 x 1.250), IGNITION AMPLIFIERSCREW, (.250-20 x 1.250), IGNITION AMPLIFIER
-
913-26992 LOCKWASHER, (.250) Stainless Steel, IGNITION AMPLIFIER SCREWLOCKWASHER, (.250) Stainless Steel, IGNITION AMPLIFIER SCREW
-
1023-92152T SPACER, (.27 x .75 x .38), IGNITION AMPLIFIER ACREWSPACER, (.27 x .75 x .38), IGNITION AMPLIFIER ACREW
-
1197258A1 SENDER ASSEMBLYSENDER ASSEMBLY
-
1149734 SENDER ASSEMBLY, Water Temperature
(DUAL)SENDER ASSEMBLY, Water Temperature
(DUAL) -
1213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1311-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
148M0068784 SENDERSENDER
-
1437293T SENDER ASSEMBLY, Oil Pressure
(DUAL)SENDER ASSEMBLY, Oil Pressure
(DUAL) -
1513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1722-46932 ELBOW, OIL PRESSURE SENDERELBOW, OIL PRESSURE SENDER
-
1822-885153 NIPPLE, OIL PRESSURE SENDERNIPPLE, OIL PRESSURE SENDER
-
1941170T BRACKET, MOUNTINGBRACKET, MOUNTING
-
2010-98260 SCREW, (.375-16 x .620), MOUNTING BRACKETSCREW, (.375-16 x .620), MOUNTING BRACKET
-
2113-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREWLOCKWASHER, (.375), MOUNTING BRACKET SCREW
-
2254-78945 J CLAMP, Harness SupportJ CLAMP, Harness Support
-
2316-245851 STUD, MOUNTING BRACKETSTUD, MOUNTING BRACKET
-
2412-20086 WASHER, (.390 x .620 x .060), MOUNTING BRACKET STUDWASHER, (.390 x .620 x .060), MOUNTING BRACKET STUD
-
2511-46335 NUT, MOUNTING BRACKET STUDNUT, MOUNTING BRACKET STUD
-
2610-32132 SCREW, (.375-16 x 1.750), MOUNTING BRACKETSCREW, (.375-16 x 1.750), MOUNTING BRACKET
-
2713-35048 LOCKWASHER, (.375), MOUNTING BRACKET STUDLOCKWASHER, (.375), MOUNTING BRACKET STUD
-
2823-15895 SPACER, MOUNTING BRACKET STUDSPACER, MOUNTING BRACKET STUD
-
2988-93582 BREAKER, Circuit - 60 AmpereBREAKER, Circuit - 60 Ampere
-
2988-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
3013-26996 LOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINALLOCKWASHER, (#10) Stainless Steel, CIRCUIT BREAKER TERMINAL
-
3111-68219 NUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINALNUT, (#10-32) Stainless Steel, CIRCUIT BREAKER TERMINAL
-
3210-45862 SCREW, (#10-32 x .875), CIRCUIT BREAKERSCREW, (#10-32 x .875), CIRCUIT BREAKER
-
3310-45218 SCREW, (#10-32 x .380), INSULATORSCREW, (#10-32 x .380), INSULATOR
-
3412-56681 WASHER, (.203 x .500 x .032), CIRCUIT BREAKER SCREWWASHER, (.203 x .500 x .032), CIRCUIT BREAKER SCREW
-
3511-46438 NUT, (#10-32), INSULATOR SCREWNUT, (#10-32), INSULATOR SCREW
-
3685-96819T INSULATOR, CIRCUIT BREAKERINSULATOR, CIRCUIT BREAKER
-
3789-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
3810-96138 SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8")SCREW, (1/4-28 x 5/8), STARTER SOLENOID (5/8")
-
3911-20088 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
-
4013-26992 LOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINALLOCKWASHER, (.250) Stainless Steel, STARTER SOLENOID TERMINAL
-
4111-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
4211-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
4386-45915 TERMINAL BLOCKTERMINAL BLOCK
-
4410-62568 SCREW, (#10-16 x .375), TERMINAL BLOCK LEADSSCREW, (#10-16 x .375), TERMINAL BLOCK LEADS
-
4510-22028 SCREW, (#10-32 x .50), TERMINAL BLOCKSCREW, (#10-32 x .50), TERMINAL BLOCK
-
4611-46438 NUT, (#10-32), TERMINAL BLOCK SCREWNUT, (#10-32), TERMINAL BLOCK SCREW
