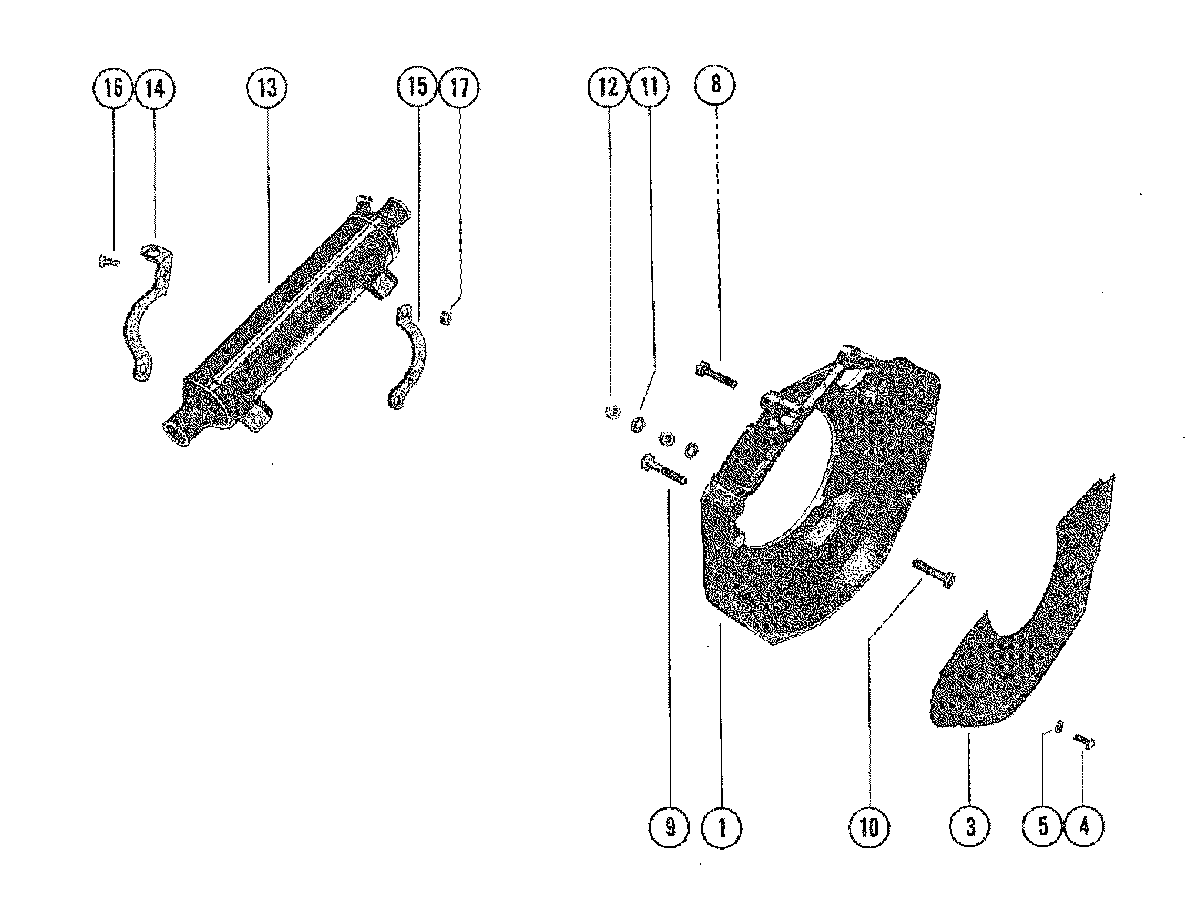

FLYWHEEL HOUSING AND OIL COOLER INBOARD для Mercruiser - 225 (4 BBL.) FORD 302 V-8 1973-1974 3385721 THRU 4166999
-
№АртикулНазвание
-
163827T HOUSING, FLYWHEELHOUSING, FLYWHEEL
-
3818718A4 COVER, FLYWHEEL HOUSINGCOVER, FLYWHEEL HOUSING
-
410-98253 SCREW, COVER TO FLYWHEEL HOUSING (5/8")SCREW, COVER TO FLYWHEEL HOUSING (5/8")
-
513-26992 LOCKWASHER, COVER SCREWLOCKWASHER, COVER SCREW
-
810-47651 SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")
-
910-59589 SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")
-
1010-98556 SCREW, GROUND CABLE TO FLYWHEEL (1 3/4")SCREW, GROUND CABLE TO FLYWHEEL (1 3/4")
-
1113-35048 LOCKWASHER, GROUND CABLE TO FLYWHEEL SCREWLOCKWASHER, GROUND CABLE TO FLYWHEEL SCREW
-
1211-32219 NUT, GROUND CABLE TO FLYWHEEL SCREWNUT, GROUND CABLE TO FLYWHEEL SCREW
-
1363832A1 COOLER, OIL (9")COOLER, OIL (9")
-
1363832T COOLER, OIL (12") V-DRIVE ONLYCOOLER, OIL (12") V-DRIVE ONLY
-
1456329 BRACKET, COOLER CLAMPING (LONG)BRACKET, COOLER CLAMPING (LONG)
-
1556328A1 BRACKET, COOLER CLAMPING (SHORT)BRACKET, COOLER CLAMPING (SHORT)
-
1610-69028 SCREW, COOLER BRACKET ATTACHING (3/4")SCREW, COOLER BRACKET ATTACHING (3/4")
-
1711-30506 NUT, COOLER BRACKET ATTACHING SCREWNUT, COOLER BRACKET ATTACHING SCREW
