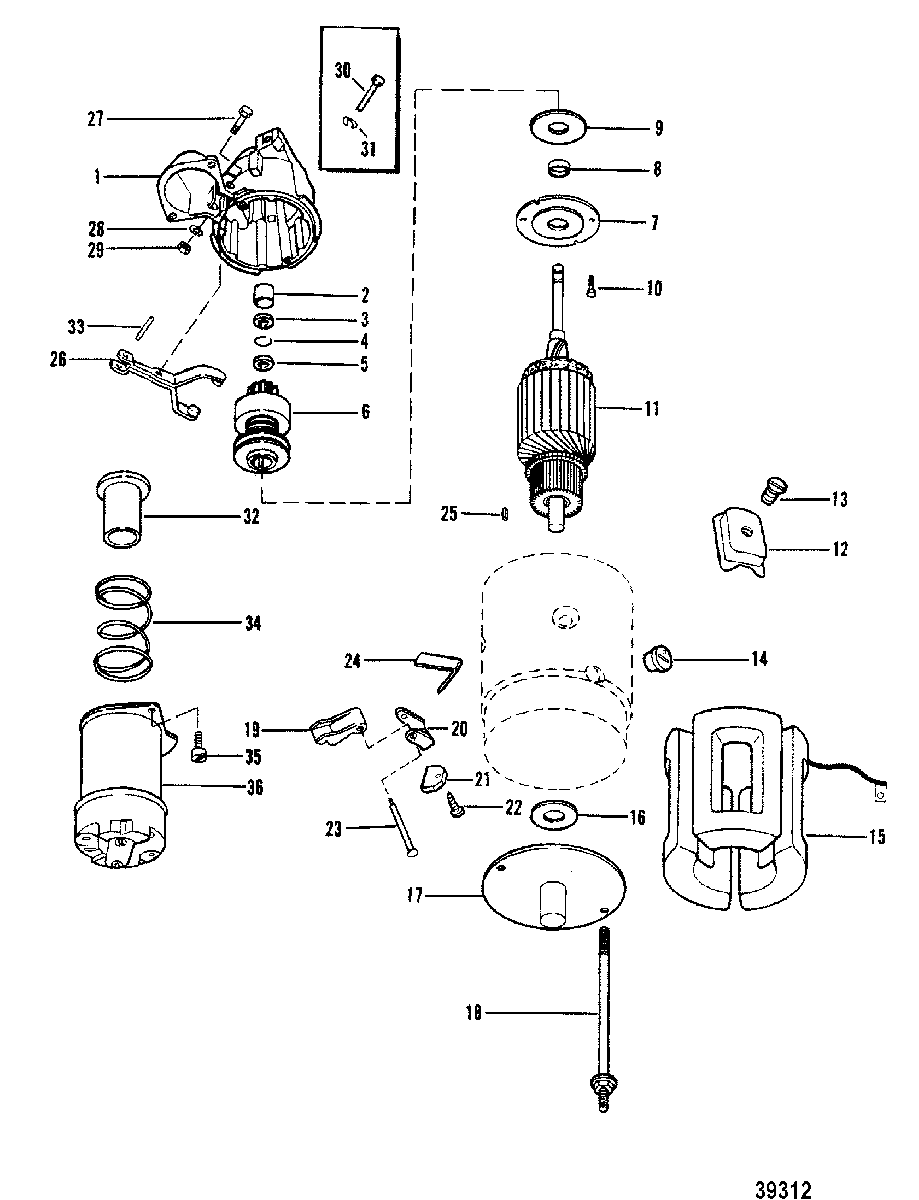

STARTER MOTOR(USE WITH 12-3/4" FLYWHEEL) для Mercruiser - 230 (4 BBL.) GM 305 V-8 1985-1986 6218462 THRU 0B525981
-
№АртикулНазвание
-
--50-8M0090697 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
171696 HOUSING, DRIVE ENDHOUSING, DRIVE END
-
223-33369 BUSHING, DRIVE END HOUSINGBUSHING, DRIVE END HOUSING
-
323-809457 COLLAR, THRUSTCOLLAR, THRUST
-
453-33290 RING, Retaining, PINION STOP COLLARRING, Retaining, PINION STOP COLLAR
-
533291 COLLAR, PINION STOPCOLLAR, PINION STOP
-
679205T DRIVE ASSEMBLY, CLUTCHDRIVE ASSEMBLY, CLUTCH
-
7N.S.S. Not Sold Separate, PLATE, BERAING (DELCO-REMY #1956939)Not Sold Separate, PLATE, BERAING (DELCO-REMY #1956939)
-
823-71694 BUSHING, BEARING PLATEBUSHING, BEARING PLATE
-
912-68614 WASHER, BEARING PLATEWASHER, BEARING PLATE
-
1010-79209 SCREW, BEARING PLATESCREW, BEARING PLATE
-
1171693 ARMATUREARMATURE
-
1175665 ARMATUREARMATURE
-
12N.S.S. Not Sold Separate, SHOE, POLE (DELCO-REMY #1931129)Not Sold Separate, SHOE, POLE (DELCO-REMY #1931129)
-
12N.S.S. Not Sold Separate, SHOE, POLE (DELCO-REMY #810601)Not Sold Separate, SHOE, POLE (DELCO-REMY #810601)
-
13N.S.S. Not Sold Separate, SCREW, POLE SHOE TO FIELD COIL (DELCO-REMY #1968396)Not Sold Separate, SCREW, POLE SHOE TO FIELD COIL (DELCO-REMY #1968396)
-
1425-79208 GROMMET, FIELD COIL - FIELD FRAMEGROMMET, FIELD COIL - FIELD FRAME
-
1579212 COIL ASSEMBLYCOIL ASSEMBLY
-
1575664 COIL ASSEMBLYCOIL ASSEMBLY
-
1612-33258 WASHER, Leather, COMMUTATOR END FRAMEWASHER, Leather, COMMUTATOR END FRAME
-
1779211 FRAME, COMMUTATOR END - LOWERFRAME, COMMUTATOR END - LOWER
-
18N.S.S. Not Sold Separate, THRU BOLT (DELCO-REMY #1939970)Not Sold Separate, THRU BOLT (DELCO-REMY #1939970)
-
1933284 HOLDER, INSULATED - FIELD FRAME BRUSHHOLDER, INSULATED - FIELD FRAME BRUSH
-
2033283 HOLDER, FIELD FRAME BRUSH GROUNDHOLDER, FIELD FRAME BRUSH GROUND
-
2133270 BRUSH, FILED FRAMEBRUSH, FILED FRAME
-
22N.S.S. Not Sold Separate, SCREW, BRUSH LEAD (DELCO-REMY #443527)Not Sold Separate, SCREW, BRUSH LEAD (DELCO-REMY #443527)
-
2333294 SUPPORT, GROUND AND INSULATED HOLDERSSUPPORT, GROUND AND INSULATED HOLDERS
-
2424-33285 SPRING, FIELD FRAME BRUSHSPRING, FIELD FRAME BRUSH
-
25N.S.S. Not Sold Separate, DOWEL PIN - FIELD FRAME (DELCO-REMY #1985696)Not Sold Separate, DOWEL PIN - FIELD FRAME (DELCO-REMY #1985696)
-
2633297 LEVER, SHIFT
EARLY STYLELEVER, SHIFT
EARLY STYLE -
27N.S.S. Not Sold Separate, STUD, SHIFT LEVER (DELCO-REMY #1814529)
EARLY STYLENot Sold Separate, STUD, SHIFT LEVER (DELCO-REMY #1814529)
EARLY STYLE -
2812-68615 WASHER, SHIFT LEVER STUD
EARLY STYLEWASHER, SHIFT LEVER STUD
EARLY STYLE -
2911-26484 NUT, (.312-18), SHIFT LEVER STUD
EARLY STYLENUT, (.312-18), SHIFT LEVER STUD
EARLY STYLE -
2671698 LEVER, SHIFT
NEW STYLELEVER, SHIFT
NEW STYLE -
30N.S.S. Not Sold Separate, PIN (DELCO-REMY #1945804)
NEW STYLENot Sold Separate, PIN (DELCO-REMY #1945804)
NEW STYLE -
3153-33354 RING, Retaining
NEW STYLERING, Retaining
NEW STYLE -
3233317 PLUNGER, SHIFT LEVERPLUNGER, SHIFT LEVER
-
3317-79207 PIN, PLUNGER TO SHIFT LEVERPIN, PLUNGER TO SHIFT LEVER
-
3424-46889 SPRING, PLUNGER RETURNSPRING, PLUNGER RETURN
-
35N.S.S. Not Sold Separate, SCREW, SOLENOID SWITCH (DELCO-REMY #9413260)Not Sold Separate, SCREW, SOLENOID SWITCH (DELCO-REMY #9413260)
-
3613037 SOLENOID SWITCHSOLENOID SWITCH
