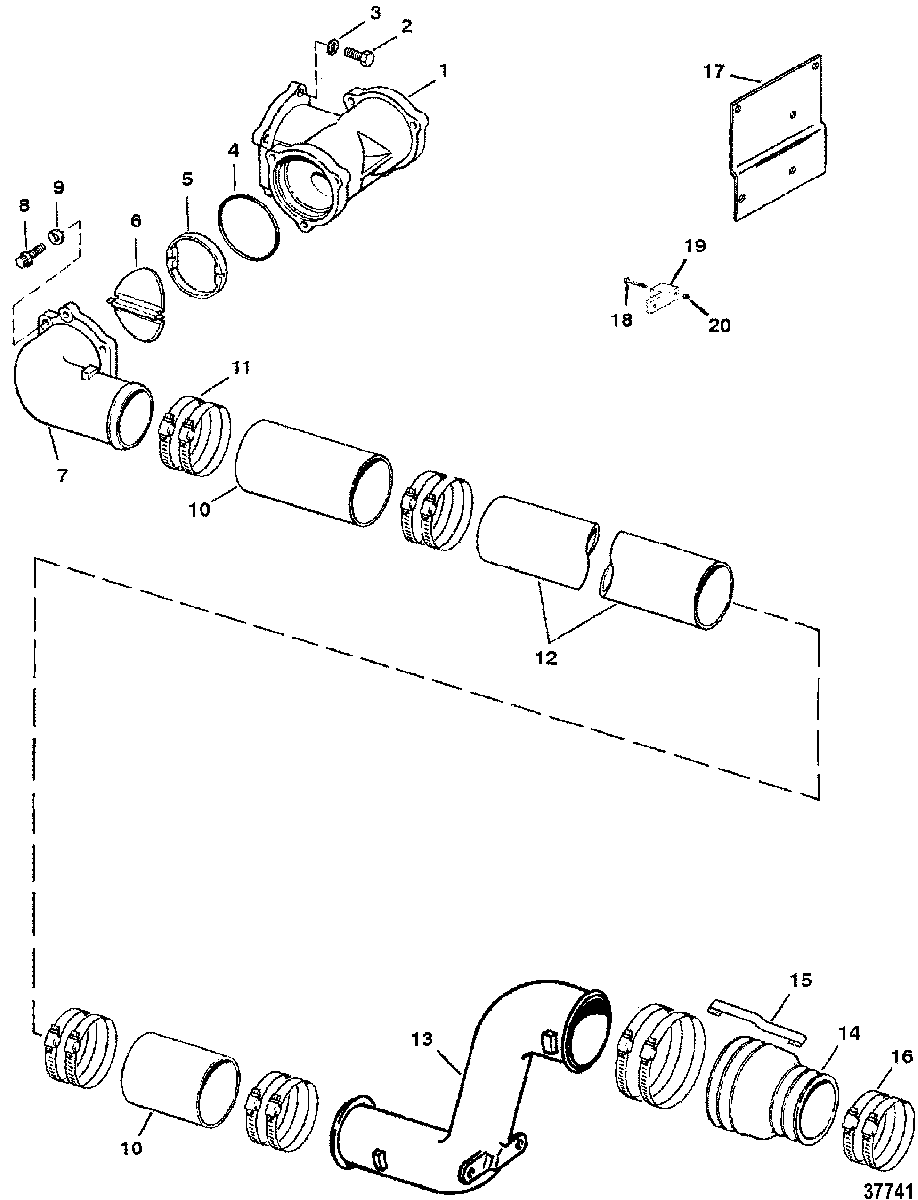

DRIVESHAFT EXTENSION COMPONENTS(JACKSHAFT MODELS) для Mercruiser - 260 (4 BBL.) GM 305 V-8 1987 0B525982 THRU 0B773739
-
№АртикулНазвание
-
198626A3 SEPARATORSEPARATOR
-
210-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
313-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
425-35029 O-RING, 78.97 X 3.53 MMO-RING, 78.97 X 3.53 MM
-
560931 RETAINERRETAINER
-
660930 SHUTTER, WaterSHUTTER, Water
-
794018A1 ELBOW ASSEMBLY, ExhaustELBOW ASSEMBLY, Exhaust
-
810-8M0113174 SCREW, (.375-16 x 1.25)SCREW, (.375-16 x 1.25)
-
913-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1032-486594 HOSEHOSE
-
1154-815504256 CLAMP, Worm GearCLAMP, Worm Gear
-
1294608A1 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
1398630A1 ELBOW ASSEMBLY, Exhaust
(USE WITH 3 IN. ELBOW)ELBOW ASSEMBLY, Exhaust
(USE WITH 3 IN. ELBOW) -
1344390T ELBOW
(USE WITH 4 IN. ELBOW)ELBOW
(USE WITH 4 IN. ELBOW) -
1470981A3 BELLOWS ASSEMBLY
(USE WITH 3 IN. ELBOW)BELLOWS ASSEMBLY
(USE WITH 3 IN. ELBOW) -
1478458A1 TUBE
(USE WITH 4 IN. ELBOW)TUBE
(USE WITH 4 IN. ELBOW) -
1595740 STRAP, GroundSTRAP, Ground
-
1654-815504372 CLAMP, Worm GearCLAMP, Worm Gear
-
1741063A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
1810-24231 SCREW, (#10-32 x .250)SCREW, (#10-32 x .250)
-
1911-46438 NUT, (#10-32)NUT, (#10-32)
-
2086-45915 TERMINAL BLOCKTERMINAL BLOCK
