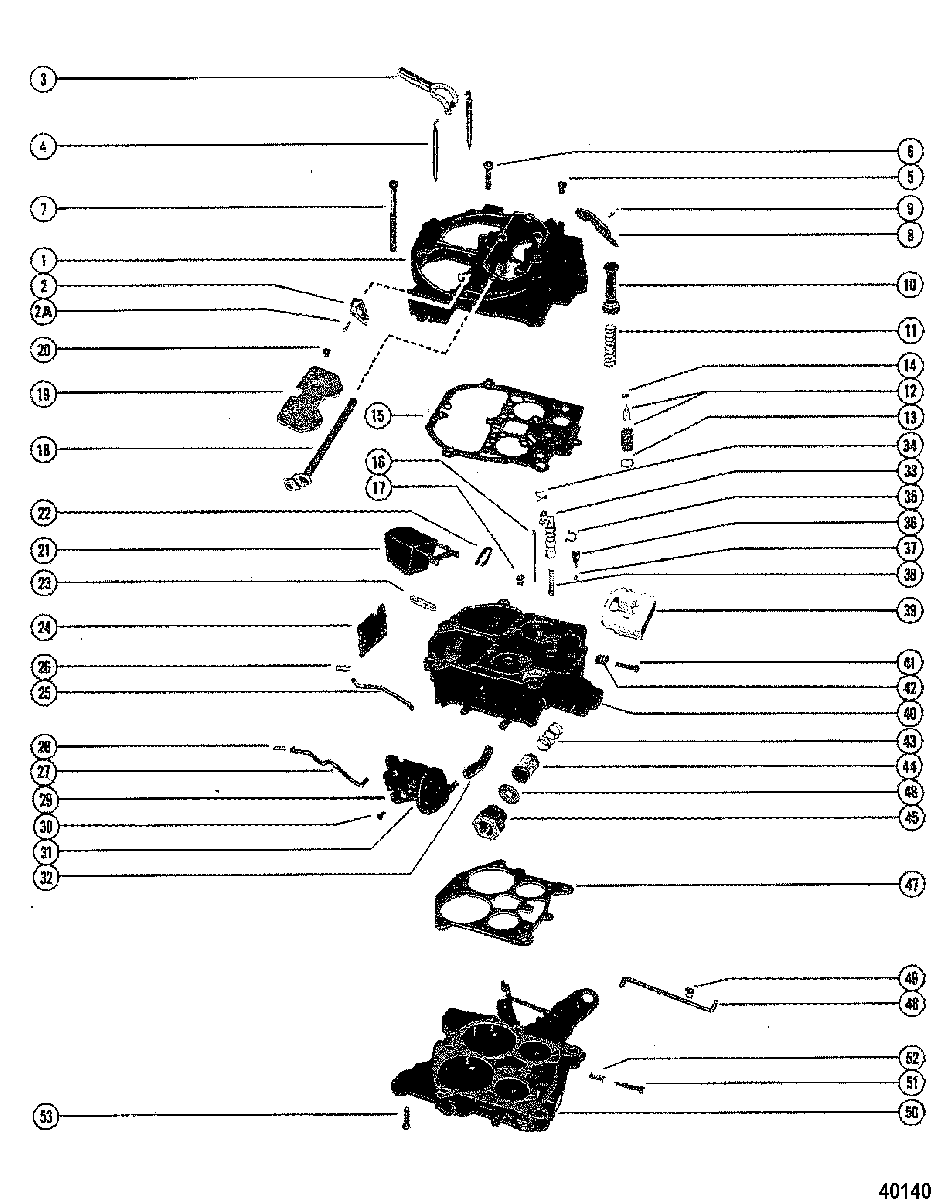

CARBURETOR ASSEMBLY, COMPLETE (With Sight Glass) для Mercruiser - 260 (4 BBL.) GM 350 V-8 1978-1982 4908850 THRU 6218461
-
№АртикулНазвание
-
-1347-804624R02 CARBURETOR ASSEMBLY, Complete
SN# 5060805 & BelowCARBURETOR ASSEMBLY, Complete
SN# 5060805 & Below -
-1347-804624R02 CARBURETOR, Complete
SN# 5060806 & UpCARBURETOR, Complete
SN# 5060806 & Up -
1N.S.S. Not Sold Separate, AIR HORN ASSEMBLYNot Sold Separate, AIR HORN ASSEMBLY
-
2N.S.S. Not Sold Separate, LEVER, Air Valve LockoutNot Sold Separate, LEVER, Air Valve Lockout
-
2AN.S.S. Not Sold Separate, ROLL PIN, Lockout LeverNot Sold Separate, ROLL PIN, Lockout Lever
-
3N.S.S. Not Sold Separate, HOLDER KIT, Secondary Metering Rod
(Rochester#7034522)Not Sold Separate, HOLDER KIT, Secondary Metering Rod
(Rochester#7034522) -
4N.S.S. Not Sold Separate, METERING ROD, Secondary
(Rochester#7048092)Not Sold Separate, METERING ROD, Secondary
(Rochester#7048092) -
5N.S.S. Not Sold Separate, SCREW (3/8"), Air Horn to Float Bow
(Rochester#7031105)Not Sold Separate, SCREW (3/8"), Air Horn to Float Bow
(Rochester#7031105) -
6N.S.S. Not Sold Separate, SCREW (1"), Air Horn to Float Bow
(Rochester#7014699)Not Sold Separate, SCREW (1"), Air Horn to Float Bow
(Rochester#7014699) -
7N.S.S. Not Sold Separate, SCREW (3"), Air Horn to Float Bow
(Rochester#7029912)Not Sold Separate, SCREW (3"), Air Horn to Float Bow
(Rochester#7029912) -
8N.S.S. Not Sold Separate, LEVER, Acuating Pump
(Rochester#7048169)Not Sold Separate, LEVER, Acuating Pump
(Rochester#7048169) -
9N.S.S. Not Sold Separate, ROLLPIN, Hinge-Pump LeverNot Sold Separate, ROLLPIN, Hinge-Pump Lever
-
10N.S.S. Not Sold Separate, PUMP ASSEMBLYNot Sold Separate, PUMP ASSEMBLY
-
11N.S.S. Not Sold Separate, SPRING, Pump ReturnNot Sold Separate, SPRING, Pump Return
-
12N.S.S. Not Sold Separate, NEEDLE AND SEAT ASSEMBLYNot Sold Separate, NEEDLE AND SEAT ASSEMBLY
-
13N.S.S. Not Sold Separate, GASKET, Needle & SeatNot Sold Separate, GASKET, Needle & Seat
-
14N.S.S. Not Sold Separate, PULL CLIP, Float NeedleNot Sold Separate, PULL CLIP, Float Needle
-
15N.S.S. Not Sold Separate, GASKET, Air HornNot Sold Separate, GASKET, Air Horn
-
16N.S.S. Not Sold Separate, METERING ROD, PrimaryNot Sold Separate, METERING ROD, Primary
-
17N.S.S. Not Sold Separate, JET, PrimaryNot Sold Separate, JET, Primary
-
18N.S.S. Not Sold Separate, Choke Shaft & Lever Assembly
(Rochester#7036059)Not Sold Separate, Choke Shaft & Lever Assembly
(Rochester#7036059) -
19N.S.S. Not Sold Separate, VALVE, Choke Shaft
(Rochester#7036021)Not Sold Separate, VALVE, Choke Shaft
(Rochester#7036021) -
20N.S.S. Not Sold Separate, SCREW, Choke Valve to Shaft
(Rochester#7029866)Not Sold Separate, SCREW, Choke Valve to Shaft
(Rochester#7029866) -
211397-3327 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
22N.S.S. Not Sold Separate, PIN, Hinge-Float
(Rochester#7029856)Not Sold Separate, PIN, Hinge-Float
(Rochester#7029856) -
23N.S.S. Not Sold Separate, LEVER, Intermediate Choke
(Rochester#7031231)Not Sold Separate, LEVER, Intermediate Choke
(Rochester#7031231) -
24N.S.S. Not Sold Separate, BAFFLE, Float Bowl
(Rochester#7031365)Not Sold Separate, BAFFLE, Float Bowl
(Rochester#7031365) -
25N.S.S. Not Sold Separate, ROD, Choke
(Rochester#7031394)Not Sold Separate, ROD, Choke
(Rochester#7031394) -
25N.S.S. Not Sold Separate, ROD, Choke
(Rochester#7031394)Not Sold Separate, ROD, Choke
(Rochester#7031394) -
26N.S.S. Not Sold Separate, CLIP, Choke RodNot Sold Separate, CLIP, Choke Rod
-
27N.S.S. Not Sold Separate, ROD, Vacuum Control
(Rochester#7038167)Not Sold Separate, ROD, Vacuum Control
(Rochester#7038167) -
28N.S.S. Not Sold Separate, CLIP, Vacuum Control RodNot Sold Separate, CLIP, Vacuum Control Rod
-
29N.S.S. Not Sold Separate, BRACKET ASSEMBLY, Vacuum Control
(Rochester#17060265)Not Sold Separate, BRACKET ASSEMBLY, Vacuum Control
(Rochester#17060265) -
30N.S.S. Not Sold Separate, SCREW, Vacuum Control Bracket to Float Bowl
(Rochester#7031925)Not Sold Separate, SCREW, Vacuum Control Bracket to Float Bowl
(Rochester#7031925) -
311397-3317 CONTROL ASSEMBLY, VacuumCONTROL ASSEMBLY, Vacuum
-
32N.S.S. Not Sold Separate, HOSE, Vacuum
(Rochester#7026339)Not Sold Separate, HOSE, Vacuum
(Rochester#7026339) -
33N.S.S. Not Sold Separate, POWER PISTON ASSEMBLY
(Rochester#7034637)Not Sold Separate, POWER PISTON ASSEMBLY
(Rochester#7034637) -
34N.S.S. Not Sold Separate, SPRING, Metering Rod-Primary
(Rochester#7029862)Not Sold Separate, SPRING, Metering Rod-Primary
(Rochester#7029862) -
35N.S.S. Not Sold Separate, RETAINER, Power Piston
(Rochester#7034339)Not Sold Separate, RETAINER, Power Piston
(Rochester#7034339) -
36N.S.S. Not Sold Separate, RETAINER, Pump Discharge Ballter
(Rochester#7029849)Not Sold Separate, RETAINER, Pump Discharge Ballter
(Rochester#7029849) -
37N.S.S. Not Sold Separate, BALL, Pump DischargeNot Sold Separate, BALL, Pump Discharge
-
38N.S.S. Not Sold Separate, SPRING, Power Piston
(Rochester#7029529)Not Sold Separate, SPRING, Power Piston
(Rochester#7029529) -
39N.S.S. Not Sold Separate, INSERT, Float Bowl
(Rochester#7034361)Not Sold Separate, INSERT, Float Bowl
(Rochester#7034361) -
40N.S.S. Not Sold Separate, FLOAT BOWL ASSEMBLY
(Rochester#7041584)Not Sold Separate, FLOAT BOWL ASSEMBLY
(Rochester#7041584) -
41N.S.S. Not Sold Separate, SCREW, Idle Stop
(Rochester#7002121)Not Sold Separate, SCREW, Idle Stop
(Rochester#7002121) -
42N.S.S. Not Sold Separate, SPRING, Idle Stop Screw
(Rochester#7003176)Not Sold Separate, SPRING, Idle Stop Screw
(Rochester#7003176) -
433302-9032 SPRING, Filter NutSPRING, Filter Nut
-
4435-53336Q STRAINER, Fuel InletSTRAINER, Fuel Inlet
-
451397-3330 NUT, Filter, Fuel InletNUT, Filter, Fuel Inlet
-
46N.S.S. Not Sold Separate, GASKET, Filter NutNot Sold Separate, GASKET, Filter Nut
-
47N.S.S. Not Sold Separate, GASKET, Throttle BodyNot Sold Separate, GASKET, Throttle Body
-
48N.S.S. Not Sold Separate, ROD, Pump
(Rochester#7026138)Not Sold Separate, ROD, Pump
(Rochester#7026138) -
49N.S.S. Not Sold Separate, CLIP, Pump RodNot Sold Separate, CLIP, Pump Rod
-
50N.S.S. Not Sold Separate, THROTTLE BODY ASSEMBLY
(Rochester#7044819)Not Sold Separate, THROTTLE BODY ASSEMBLY
(Rochester#7044819) -
51N.S.S. Not Sold Separate, IDLE NEEDLE, Throttle BodyNot Sold Separate, IDLE NEEDLE, Throttle Body
-
5224-33050 SPRING, Idle Needle
SN# 5060508 & BelowSPRING, Idle Needle
SN# 5060508 & Below -
5224-87734 SPRING, Idle Needle
SN# 5060806 & UpSPRING, Idle Needle
SN# 5060806 & Up -
53N.S.S. Not Sold Separate, SCREW, Throttle Body to Float Bowl
(Rochester#7035790)Not Sold Separate, SCREW, Throttle Body to Float Bowl
(Rochester#7035790) -
--1397-3315 SPRING AND CAM KIT, Air ValveSPRING AND CAM KIT, Air Valve
-
--823426A1 OVERHAUL KIT
SN# 5060805 & BelowOVERHAUL KIT
SN# 5060805 & Below -
--823426A1 OVERHAUL KIT
SN# 5060806 & UpOVERHAUL KIT
SN# 5060806 & Up -
--823426A1 GASKET SETGASKET SET
