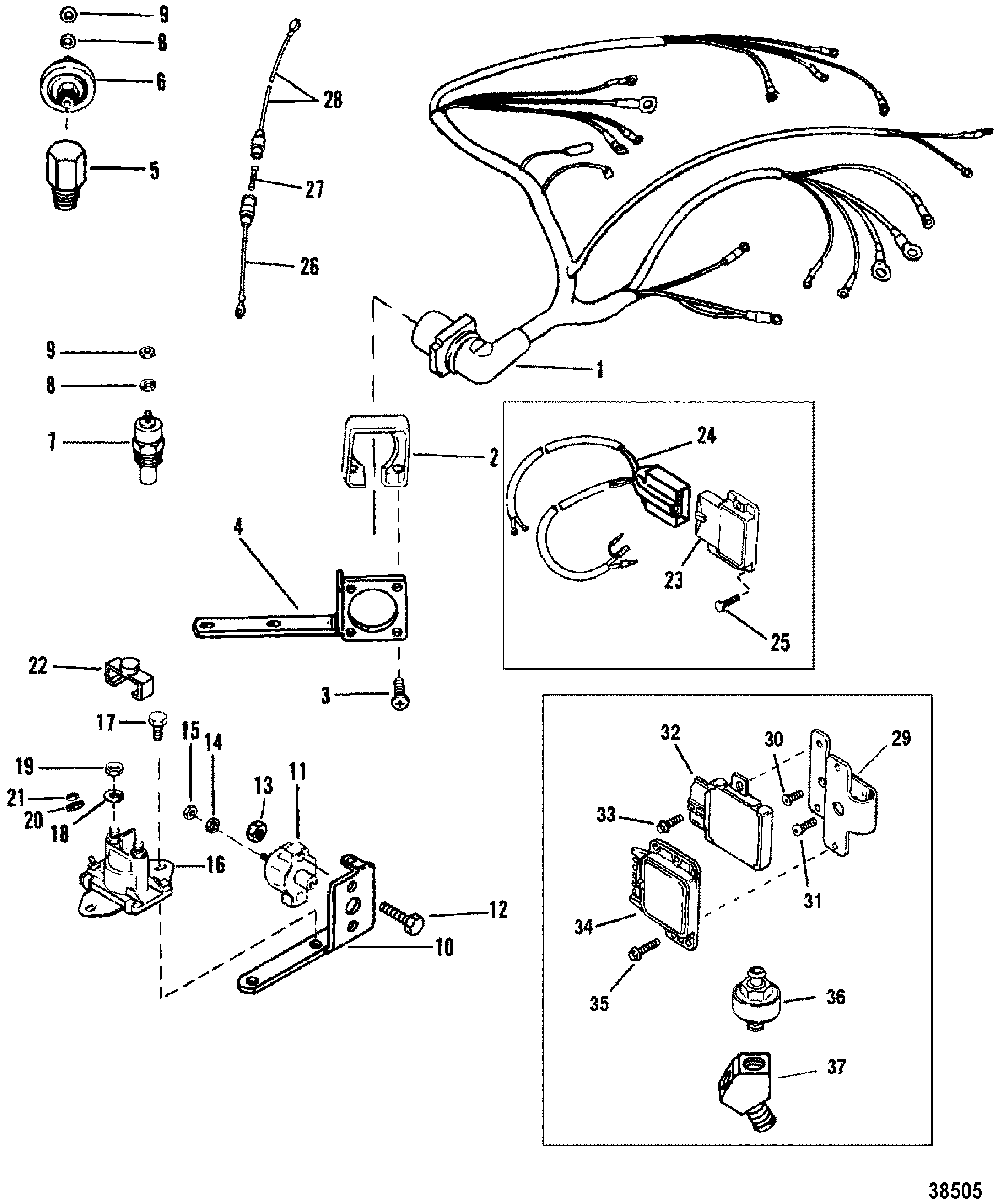

ELECTRICAL COMPONENTS(IGN. MODULE MOUNTED ON DISTRIBUTOR) для Mercruiser - 260 GM 350 V-8 1987 0B525982 THRU 0B773304
-
№АртикулНазвание
-
184-806966A2 HARNESS ASSEMBLY
(THUNDERBOLT V)HARNESS ASSEMBLY
(THUNDERBOLT V) -
184-806217A9 HARNESS ASSEMBLY
(ALPHA ENGINES) SN# F114689 & BelowHARNESS ASSEMBLY
(ALPHA ENGINES) SN# F114689 & Below -
184-806217A9 HARNESS ASSEMBLY
(BRAVO ENGINES) SN# F114689 & BelowHARNESS ASSEMBLY
(BRAVO ENGINES) SN# F114689 & Below -
184-806217A9 HARNESS ASSEMBLY
SN# F114690 & UpHARNESS ASSEMBLY
SN# F114690 & Up -
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4805383T BRACKET, Harness MountingBRACKET, Harness Mounting
-
522-8053281 FITTING, Elbow (90 Degree - .125)FITTING, Elbow (90 Degree - .125)
-
68M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
637293T SENDER ASSEMBLY, Oil Pressure (DUAL)SENDER ASSEMBLY, Oil Pressure (DUAL)
-
7806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
749734 SENDER ASSEMBLY, Water Temperature (DUAL)SENDER ASSEMBLY, Water Temperature (DUAL)
-
813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
911-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
10899719T01 BRACKET, ElectricalBRACKET, Electrical
-
1188-11178A01 BREAKER, Circuit - 50 Ampere
NUT CONNECTIONSBREAKER, Circuit - 50 Ampere
NUT CONNECTIONS -
1210-45862 SCREW, (#10-32 x .875)
NUT CONNECTIONSSCREW, (#10-32 x .875)
NUT CONNECTIONS -
1311-61356 NUT, (#10-32) Reduced Hex
NUT CONNECTIONSNUT, (#10-32) Reduced Hex
NUT CONNECTIONS -
1413-26996 LOCKWASHER, (#10) Stainless Steel
NUT CONNECTIONSLOCKWASHER, (#10) Stainless Steel
NUT CONNECTIONS -
1511-68219 NUT, (#10-32) Stainless Steel
NUT CONNECTIONSNUT, (#10-32) Stainless Steel
NUT CONNECTIONS -
1188-11178A01 BREAKER, Circuit - 50 Ampere
SCREW CONNECTIONSBREAKER, Circuit - 50 Ampere
SCREW CONNECTIONS -
1210-57583T SCREW, (#8-32 x .375)
SCREW CONNECTIONSSCREW, (#8-32 x .375)
SCREW CONNECTIONS -
1689-96158T SOLENOID, StarterSOLENOID, Starter
-
1710-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1911-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2013-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2111-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2285-97861 INSULATORINSULATOR
-
2315899T02 MODULE, Ignition
(200/230 - 5.0L/LX) THUNDERBOLT IVMODULE, Ignition
(200/230 - 5.0L/LX) THUNDERBOLT IV -
2315899T02 MODULE, Ignition
(260 - 5.7L ALPHA) SN# 0F273497 & BelowMODULE, Ignition
(260 - 5.7L ALPHA) SN# 0F273497 & Below -
23821125T02 IGNITION MODULE
(260 - 5.7L ALPHA) SN# 0F273498 & UpIGNITION MODULE
(260 - 5.7L ALPHA) SN# 0F273498 & Up -
2315899T02 MODULE, Ignition
(5.7L BRAVO) SN# 0D617327 & BelowMODULE, Ignition
(5.7L BRAVO) SN# 0D617327 & Below -
23821125T02 IGNITION MODULE
(5.7L BRAVO) SN# 0D617328 & UpIGNITION MODULE
(5.7L BRAVO) SN# 0D617328 & Up -
2315899T02 MODULE, Ignition
(350 MAGNUM) SN# 0D617327 & BelowMODULE, Ignition
(350 MAGNUM) SN# 0D617327 & Below -
23821125T02 IGNITION MODULE
(350 MAGNUM) SN# 0D617328 & UpIGNITION MODULE
(350 MAGNUM) SN# 0D617328 & Up -
2484-805363A1 HARNESS ASSEMBLY
(ALPHA ENGINE) THUNDERBOLT IVHARNESS ASSEMBLY
(ALPHA ENGINE) THUNDERBOLT IV -
2484-805363A2 HARNESS ASSEMBLY
(BRAVO ENGINES) THUNDERBOLT IVHARNESS ASSEMBLY
(BRAVO ENGINES) THUNDERBOLT IV -
2510-12110 SCREW, (#6-32 x .750)
THUNDERBOLT IVSCREW, (#6-32 x .750)
THUNDERBOLT IV -
2684-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BRAVO ENGINESCABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BRAVO ENGINES -
2788-79091 FUSE, 20 Ampere
BRAVO ENGINESFUSE, 20 Ampere
BRAVO ENGINES -
2884-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
BRAVO ENGINESCABLE ASSEMBLY, (5.00 Inches) Red
BRAVO ENGINES -
29807763T BRACKET
THUNDERBOLT VBRACKET
THUNDERBOLT V -
3010-806834 SCREW (FLATHEAD)
THUNDERBOLT VSCREW (FLATHEAD)
THUNDERBOLT V -
3110-861520 SCREW, (10-32 x .50)
THUNDERBOLT VSCREW, (10-32 x .50)
THUNDERBOLT V -
32806956A01 MODULE, Ignition
(5.7L BRAVO) SN# 0F353525 & UpMODULE, Ignition
(5.7L BRAVO) SN# 0F353525 & Up -
32807264A01 MODULE, Ignition
(350 MAGNUM ALPHA) SN# 0F353691 & UpMODULE, Ignition
(350 MAGNUM ALPHA) SN# 0F353691 & Up -
3310-806826 SCREW, (#8-32 x .250)
THUNDERBOLT VSCREW, (#8-32 x .250)
THUNDERBOLT V -
34806611T MODULE, Knock Control
THUNDERBOLT VMODULE, Knock Control
THUNDERBOLT V -
3510-806827 SCREW, (#8-32 x .380)
THUNDERBOLT VSCREW, (#8-32 x .380)
THUNDERBOLT V -
36806612T SENSOR, Knock
THUNDERBOLT VSENSOR, Knock
THUNDERBOLT V -
3722-806705 Y-FITTING
THUNDERBOLT VY-FITTING
THUNDERBOLT V
