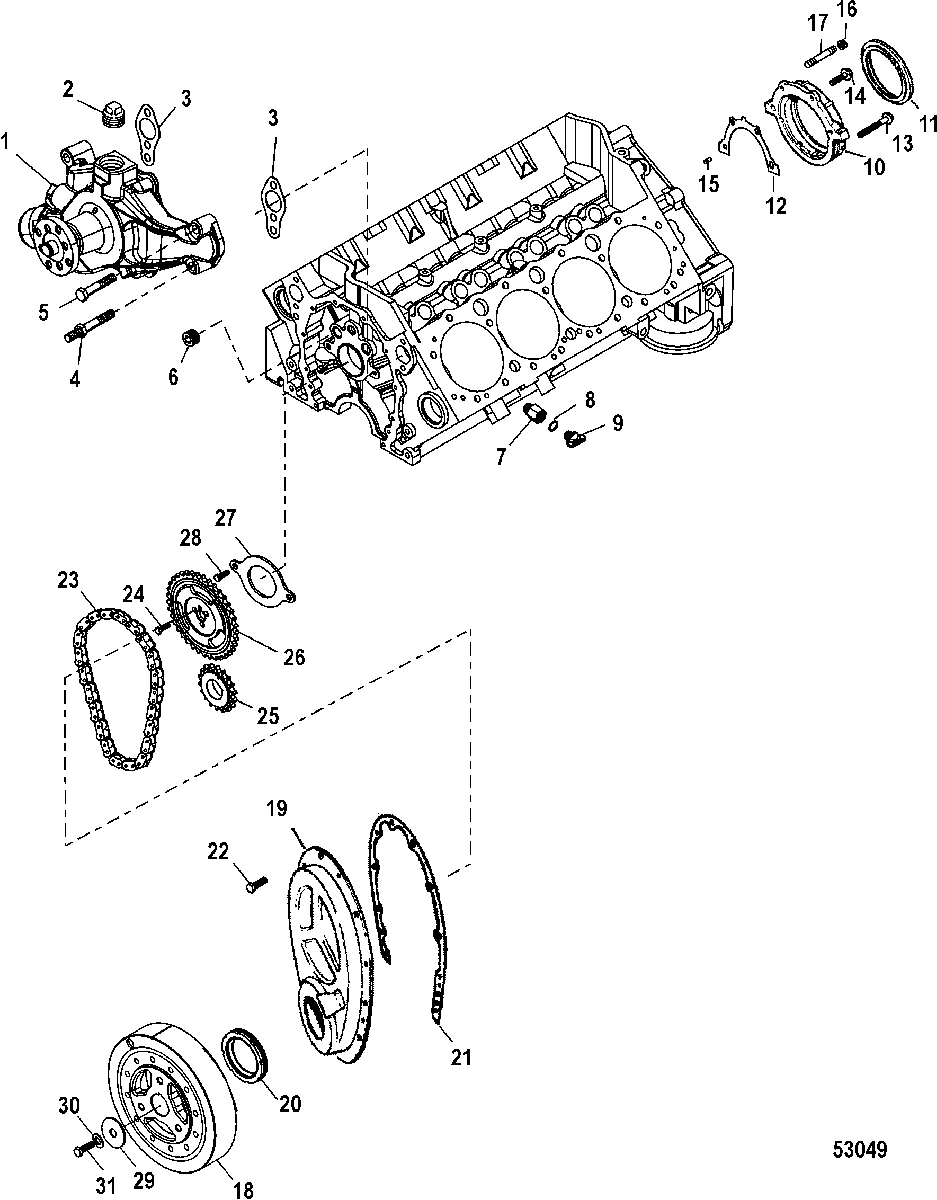

Front Cover and Circulating Pump для Mercruiser - 350 (4BBL) Crate Inboard 1G800000 & Up
-
№АртикулНазвание
-
146-8M0113734 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
222-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
327-34897 GASKETGASKET
-
416-8M0076418 STUDSTUD
-
510-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
619-816565 PLUG, Cup (.468)PLUG, Cup (.468)
-
722-860088 BUSHINGBUSHING
-
822-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
925-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
1014239 RETAINERRETAINER
-
1126-8M0077606 SEAL, OilSEAL, Oil
-
1227-881715 GASKETGASKET
-
1310-8M0064241 BOLTBOLT
-
1410-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
1517-14263 PIN, DowelPIN, Dowel
-
1611-8M0098315 NUTNUT
-
1716-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
-
18852946001 BALANCER, HarmonicBALANCER, Harmonic
-
198M0127828 COVERCOVER
-
2026-97335 SEALSEAL
-
2127-14250 GASKETGASKET
-
2210-8M0040582 SCREWSCREW
-
2317161T CHAINCHAIN
-
2410-8M0043993 SCREW, (.312-18 x .750)SCREW, (.312-18 x .750)
-
2543-17160 SPROCKETSPROCKET
-
2643-8116591 SPROCKETSPROCKET
-
27845941 RETAINERRETAINER
-
2810-845943 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
2912-71458 WASHERWASHER
-
3013-39131 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
3110-8M2021674 SCREW, (.437-20 x 2.50)SCREW, (.437-20 x 2.50)
