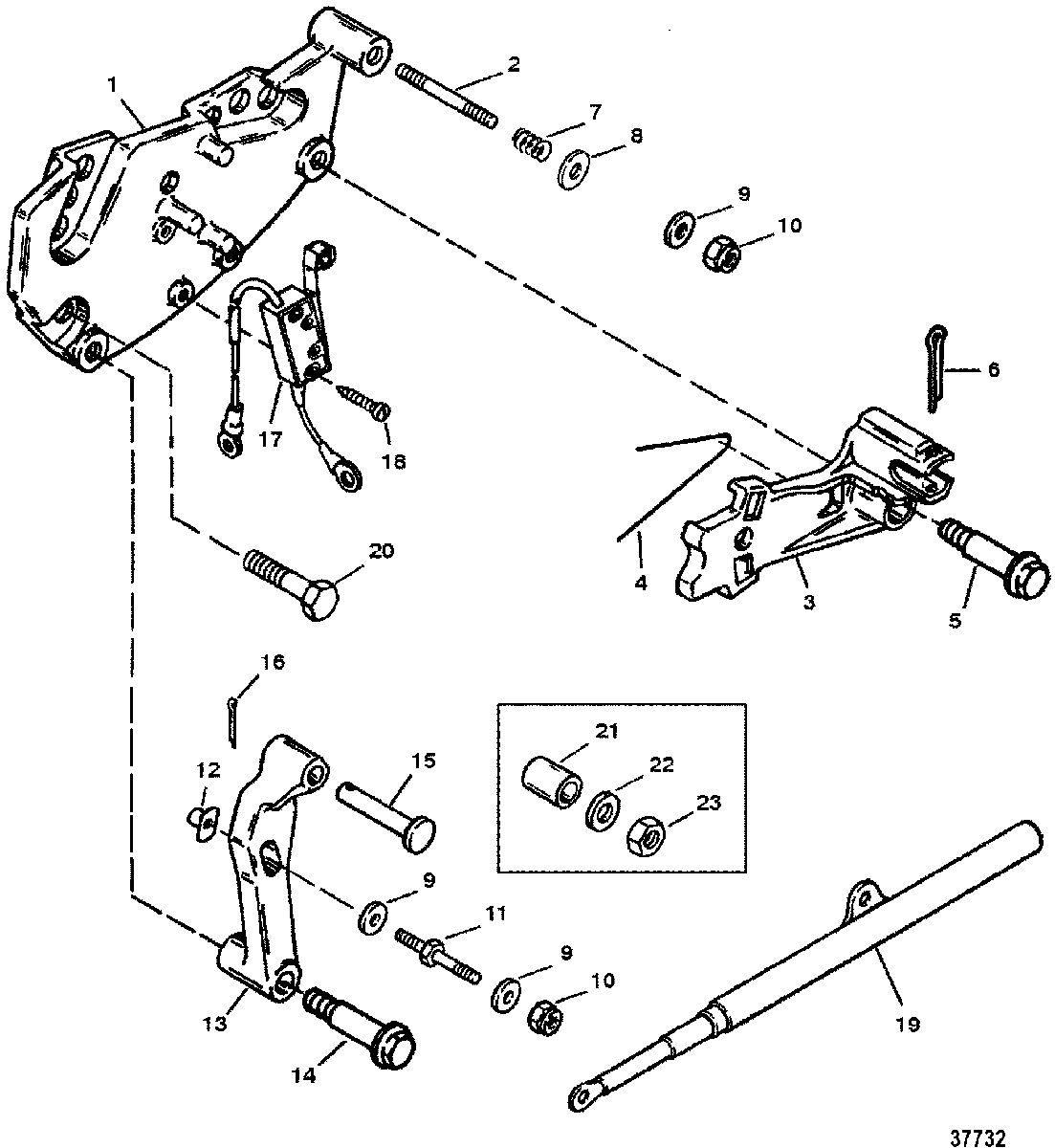

SHIFT BRACKET(ALPHA ENGINES) для Mercruiser - 350 MAG. ALPHA (4 BBL.) GM 350 V-8 1996 0F601000 THRU 0K001526
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2865149A02 STUD, (.250 x 2.870)STUD, (.250 x 2.870)
-
313051A4 LEVER ASSEMBLY, ActuatingLEVER ASSEMBLY, Actuating
-
424-862850 SPRINGSPRING
-
510-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
618-328571 COTTER PINCOTTER PIN
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1011-8267119 NUT, (.250-28)NUT, (.250-28)
-
1116-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
1211-63341 TEE NUTTEE NUT
-
1313898T06 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
1410-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
1517-814001 PIN, ClevisPIN, Clevis
-
1618-210711 COTTER PINCOTTER PIN
-
1787-19752A6 SWITCH ASSEMBLY, Cut OutSWITCH ASSEMBLY, Cut Out
-
1810-30902 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
19813995A1 GUIDE ASSEMBLY, SpringGUIDE ASSEMBLY, Spring
-
2010-657461 SCREW AND LOCKWASHER, (.250-20 x .625)
USE WITH CAST IRON ELBOWSSCREW AND LOCKWASHER, (.250-20 x .625)
USE WITH CAST IRON ELBOWS -
2123-806981 SPACER
USE WITH STAINLESS STEEL ELBOWSSPACER
USE WITH STAINLESS STEEL ELBOWS -
2212-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
USE WITH STAINLESS STEEL ELBOWSWASHER, (.2656 x .625 x .0625) Stainless Steel
USE WITH STAINLESS STEEL ELBOWS -
2311-64015 NUT, (.250-20)
USE WITH STAINLESS STEEL ELBOWSNUT, (.250-20)
USE WITH STAINLESS STEEL ELBOWS
