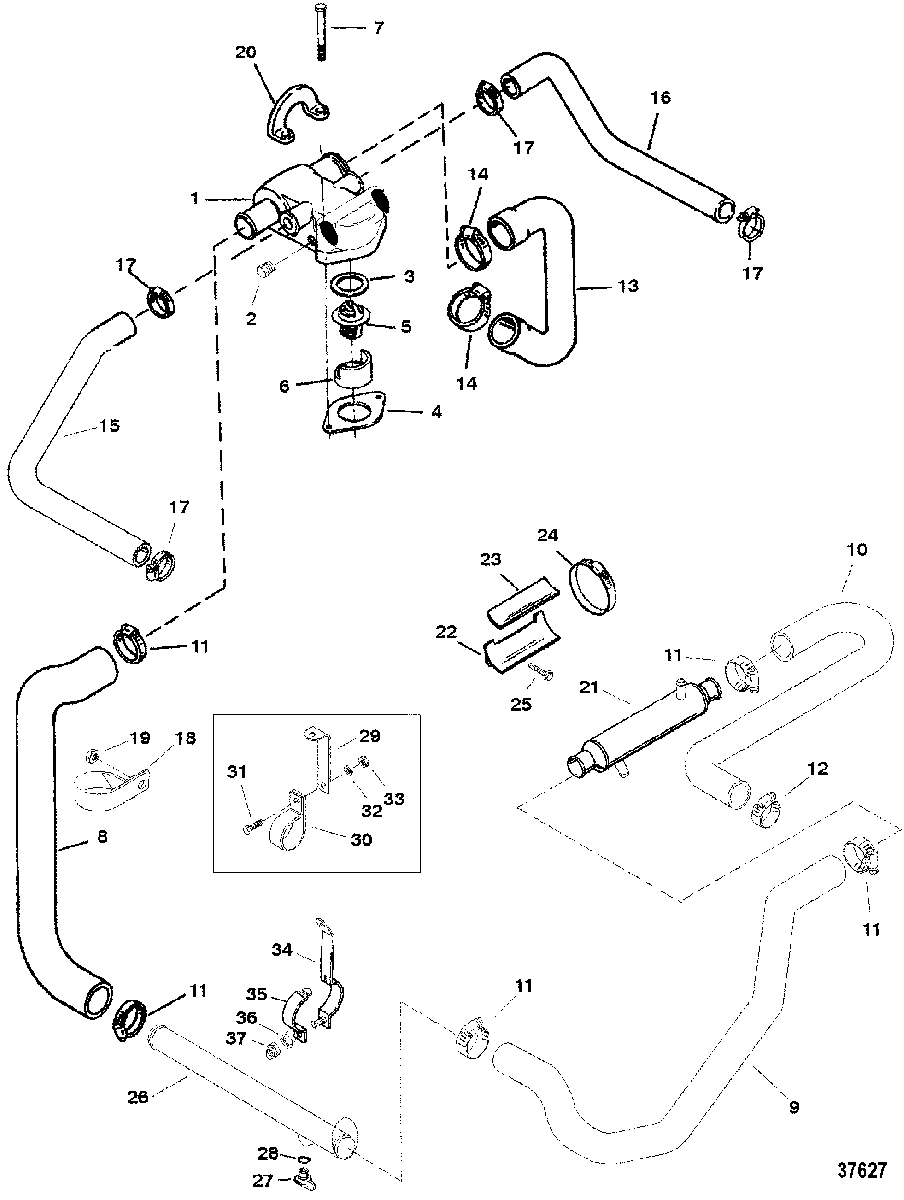

STANDARD COOLING SYSTEM(ALPHA ENGINES) для Mercruiser - 350 MAG. ALPHA (4 BBL.) GM 350 V-8 1997 0K001527 THRU 0K999999
-
№АртикулНазвание
-
1860256A3 HOUSING ASSEMBLY, Thermostat
5.7L/LX ALPHAHOUSING ASSEMBLY, Thermostat
5.7L/LX ALPHA -
1806235A1 HOUSING ASSEMBLY, Thermostat
350 MAGNUM ALPHAHOUSING ASSEMBLY, Thermostat
350 MAGNUM ALPHA -
222-32803 PLUG, Pipe (.375-18) BrassPLUG, Pipe (.375-18) Brass
-
327-806871 GASKETGASKET
-
427-530451 GASKETGASKET
-
58M0109441 THERMOSTAT, 71A°C (160A°F)THERMOSTAT, 71A°C (160A°F)
-
623-806922 SLEEVESLEEVE
-
710-8M0113179 SCREW, (.375-16 x 3.00)
5.7L/LX ALPHASCREW, (.375-16 x 3.00)
5.7L/LX ALPHA -
710-8M0113180 SCREW, (.375-16 x 1.00)
350 MAGNUM ALPHASCREW, (.375-16 x 1.00)
350 MAGNUM ALPHA -
832-808033 HOSE, MoldedHOSE, Molded
-
932-8600891 HOSE, MoldedHOSE, Molded
-
1032-807661 HOSEHOSE
-
1154-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
-
1254-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
1332-861590A05 HOSE, MoldedHOSE, Molded
-
1454-815504232 CLAMP, Worm Gear (2.50 Diameter)CLAMP, Worm Gear (2.50 Diameter)
-
1532-860144 HOSE, Thermostat Housing To Port Exhaust ManifoldHOSE, Thermostat Housing To Port Exhaust Manifold
-
1632-807697 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
1754-815504220 CLAMP, Worm GearCLAMP, Worm Gear
-
1854-47715 CLIPCLIP
-
1911-29250 NUT, (.312-24)NUT, (.312-24)
-
2012552 LIFTING EYE
5.7L/LX ALPHALIFTING EYE
5.7L/LX ALPHA -
218M0125855 COOLER, Power Steering OilCOOLER, Power Steering Oil
-
22805546A2 BRACKET, Oil CoolerBRACKET, Oil Cooler
-
23772233 PADPAD
-
2454-815504224 CLAMP, Worm GearCLAMP, Worm Gear
-
2510-816585 SCREW, (.375-18 x .875)SCREW, (.375-18 x .875)
-
26860315A1 TUBE, Hose ExtenderTUBE, Hose Extender
-
2722-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
2825-32509 QUAD RINGQUAD RING
-
2948134 BRACKET
DESIGN IBRACKET
DESIGN I -
3054-97862 CLAMP
DESIGN ICLAMP
DESIGN I -
3110-54630 SCREW, (.312-24 x .625)
DESIGN ISCREW, (.312-24 x .625)
DESIGN I -
3213-39107 LOCKWASHER, (.312-24)
DESIGN ILOCKWASHER, (.312-24)
DESIGN I -
3311-22053 NUT, (.312-24)
DESIGN INUT, (.312-24)
DESIGN I -
34860418T BRACKET
DESIGN IIBRACKET
DESIGN II -
35860417T CLAMP
DESIGN IICLAMP
DESIGN II -
3612-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
DESIGN IIWASHER, (.2656 x .625 x .0625) Stainless Steel
DESIGN II -
3711-8267088 NUT, (.250-20)
DESIGN IINUT, (.250-20)
DESIGN II -
-27-806871A96 GASKET SET, OverhaulGASKET SET, Overhaul
