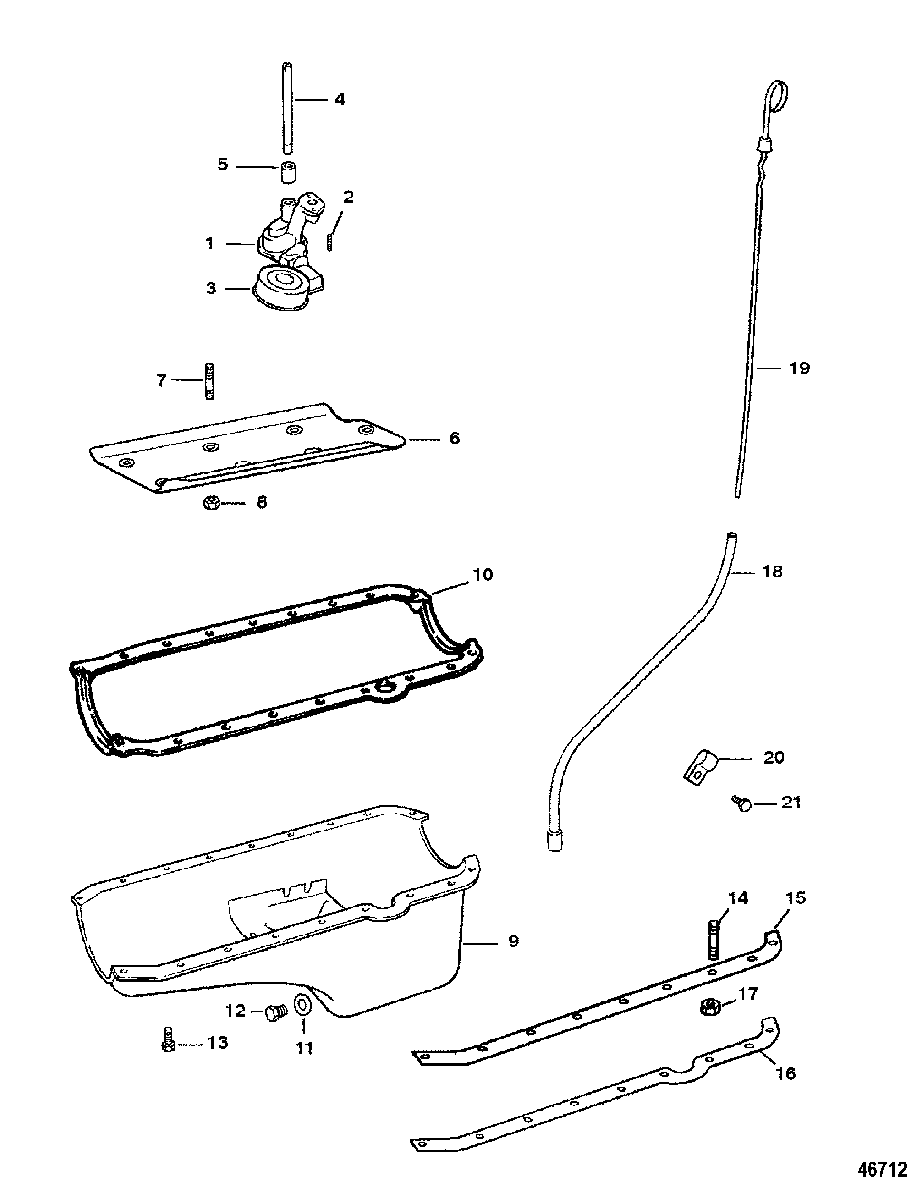

OIL PAN AND OIL PUMP для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508
-
№АртикулНазвание
-
1809907002 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
210-17346 SCREWSCREW
-
3809909 SCREEN, Oil Pump Pick UpSCREEN, Oil Pump Pick Up
-
436184 SHAFTSHAFT
-
523-36183 RETAINERRETAINER
-
6986021 BAFFLE (CYLINDER BLOCK)BAFFLE (CYLINDER BLOCK)
-
716-850090 STUD, (.437-14/.375-16 x 3.360)STUD, (.437-14/.375-16 x 3.360)
-
811-845602 NUT, (.375-16)NUT, (.375-16)
-
9809910 PAN, OilPAN, Oil
-
1027-138651 GASKET, Oil PanGASKET, Oil Pan
-
1127-8M0077608 GASKET, DrainGASKET, Drain
-
1210-809911001 SCREW, Oil Drain (M12 x 1.75)SCREW, Oil Drain (M12 x 1.75)
-
1310-14070 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
1416-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1514257 REINFORCEMENT
(PORT)REINFORCEMENT
(PORT) -
1614256 REINFORCEMENT
(STARBOARD)REINFORCEMENT
(STARBOARD) -
1711-11971 NUT, (.312-18)NUT, (.312-18)
-
1815296A2 TUBETUBE
-
19861942T7 DIPSTICKDIPSTICK
-
2054-805625 CLIP, Dipstick TubeCLIP, Dipstick Tube
-
2110-8M0040582 SCREW, (.250-20 x .563)SCREW, (.250-20 x .563)
-
-27-75611A96 GASKET SETGASKET SET
