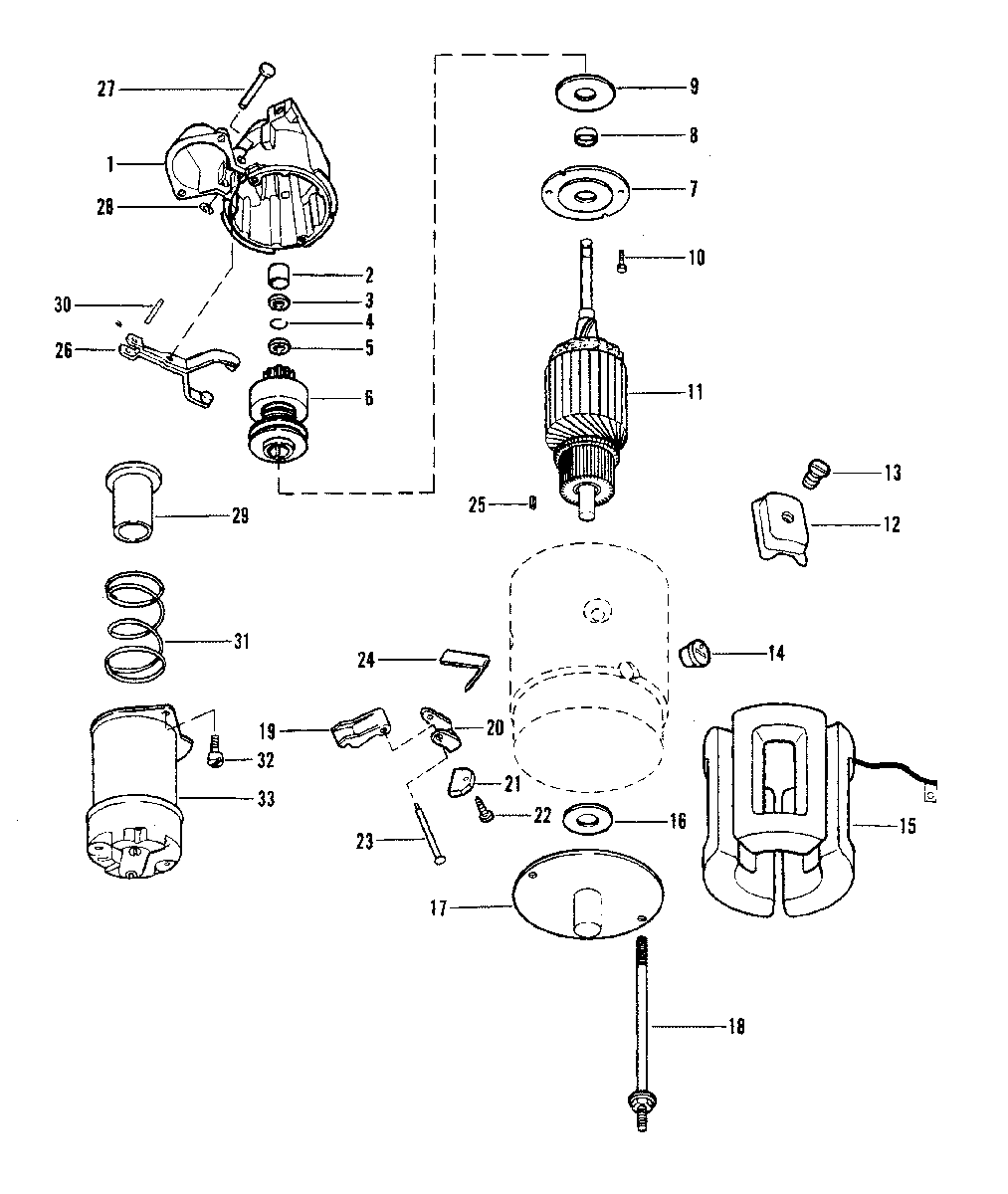

STARTER MOTOR для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1986-1987 0A635178 THRU 0B525981
-
№АртикулНазвание
-
-50-863007A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
175666 HOUSING, DRIVE ENDHOUSING, DRIVE END
-
113754 HOUSING, DRIVE ENDHOUSING, DRIVE END
-
223-33369 BUSHING, DRIVE END HOUSINGBUSHING, DRIVE END HOUSING
-
323-809457 COLLAR, THRUSTCOLLAR, THRUST
-
453-33290 RING, RETAINING - PINION STOP COLLARRING, RETAINING - PINION STOP COLLAR
-
533291 COLLAR, PINION STOPCOLLAR, PINION STOP
-
679205T DRIVE ASSEMBLY, CLUTCHDRIVE ASSEMBLY, CLUTCH
-
779396 PLATE, BEARINGPLATE, BEARING
-
823-71694 BUSHING, BEARING PLATEBUSHING, BEARING PLATE
-
912-68614 WASHER, BEARING PLATEWASHER, BEARING PLATE
-
10N.S.S. SCREW, BEARING PLATE (DELCO REMY #1972786)SCREW, BEARING PLATE (DELCO REMY #1972786)
-
1171693 ARMATUREARMATURE
-
12N.S.S. SHOE, POLE - FIELD COIL (DELCO REMY #1931129)SHOE, POLE - FIELD COIL (DELCO REMY #1931129)
-
10N.S.S. SCREW, BEARING PLATE (DELCO REMY #1984000)SCREW, BEARING PLATE (DELCO REMY #1984000)
-
1175665 ARMATUREARMATURE
-
12N.S.S. SHOE, POLE - FIELD COIL (DELCO REMY #810601)SHOE, POLE - FIELD COIL (DELCO REMY #810601)
-
13N.S.S. SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396)SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396)
-
1425-79208 GROMMET, FIELD COIL - FIELD FRAMEGROMMET, FIELD COIL - FIELD FRAME
-
1579212 FIELD COIL ASSEMBLYFIELD COIL ASSEMBLY
-
1575664 FIELD COIL ASSEMBLYFIELD COIL ASSEMBLY
-
1612-33258 WASHER, LEATHER - COMMUTATOR END FRAMEWASHER, LEATHER - COMMUTATOR END FRAME
-
1779211 FRAME, COMMUTATOR END - LOWERFRAME, COMMUTATOR END - LOWER
-
18N.S.S. BOLT, THRU (DELCO REMY #1941111)BOLT, THRU (DELCO REMY #1941111)
-
18N.S.S. BOLT, THRU (DELCO REMY #1939970)BOLT, THRU (DELCO REMY #1939970)
-
1933284 HOLDER, INSULATEDHOLDER, INSULATED
-
2033283 HOLDER, FIELD FRAME BRUSH GROUNDHOLDER, FIELD FRAME BRUSH GROUND
-
2133270 BRUSH, FIELD FRAMEBRUSH, FIELD FRAME
-
22N.S.S. SCREW, BRUSH LEAD (DELCO REMY #1967747)SCREW, BRUSH LEAD (DELCO REMY #1967747)
-
22N.S.S. SCREW, BRUSH LEAD (DELCO REMY #443527)SCREW, BRUSH LEAD (DELCO REMY #443527)
-
2333294 SUPPORT PACKAGE, GROUND AND INSULATED HOLDERSSUPPORT PACKAGE, GROUND AND INSULATED HOLDERS
-
2424-33285 SPRING, FIELD FRAME BRUSHSPRING, FIELD FRAME BRUSH
-
25N.S.S. PIN, DOWEL - FIELD FRAME (DELCO REMY #1985696)PIN, DOWEL - FIELD FRAME (DELCO REMY #1985696)
-
2671698 LEVER, SHIFTLEVER, SHIFT
-
27N.S.S. STUD, SHIFT LEVER (DELCO REMY #1945804)STUD, SHIFT LEVER (DELCO REMY #1945804)
-
28N.S.S. RETAINING RING (DELCO REMY #11505767)RETAINING RING (DELCO REMY #11505767)
-
2933317 PLUNGER, SHIFT LEVERPLUNGER, SHIFT LEVER
-
30N.S.S. PIN, PLUNGER TO SHIFT LEVER (DELCO REMY #1987049)PIN, PLUNGER TO SHIFT LEVER (DELCO REMY #1987049)
-
31N.S.S. SPRING, PLUNGER RETURN (DELCO REMY #1978281)SPRING, PLUNGER RETURN (DELCO REMY #1978281)
-
32N.S.S. SCREW, SOLENOID SWITCH (DELCO REMY #9413260)SCREW, SOLENOID SWITCH (DELCO REMY #9413260)
-
3313037 SOLENOID SWITCH ASSEMBLYSOLENOID SWITCH ASSEMBLY
