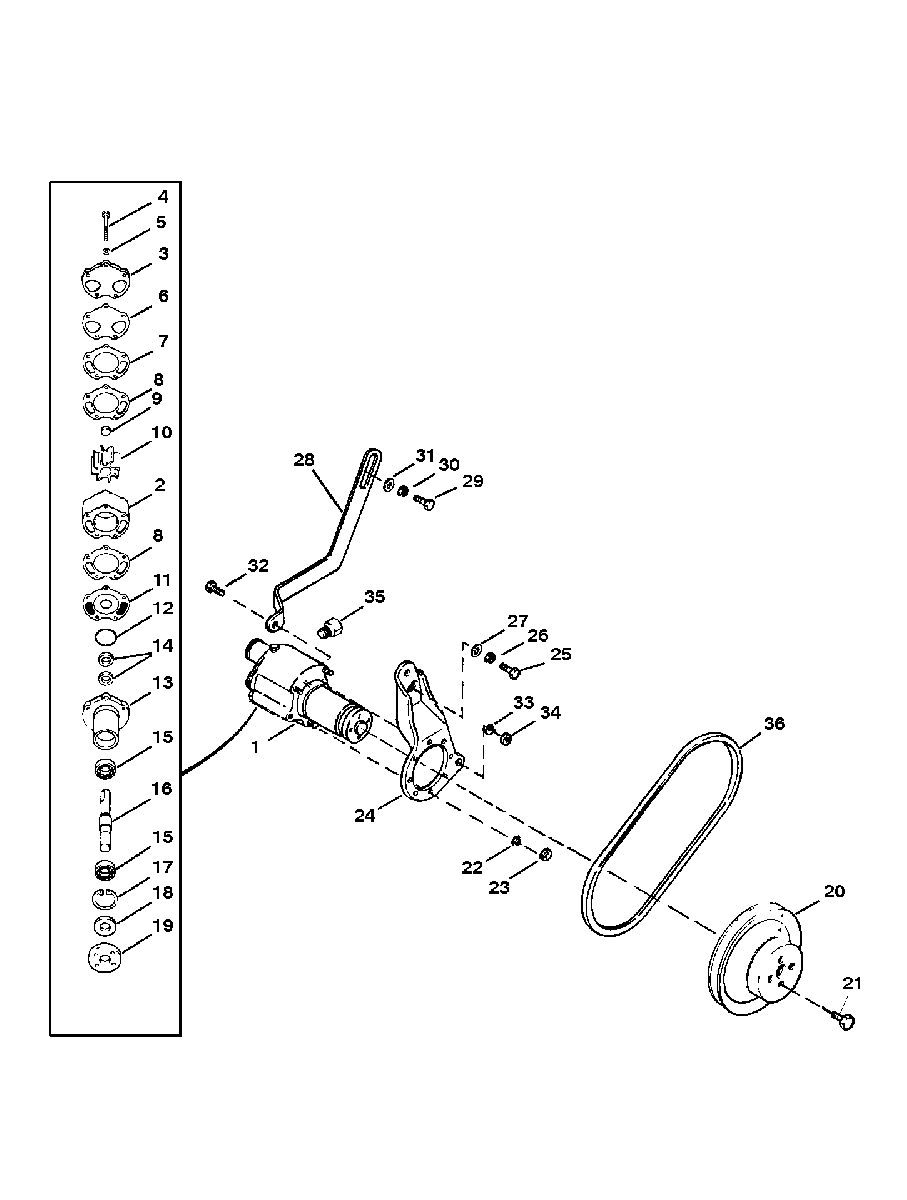

SEA WATER PUMP ASSEMBLY для Mercruiser - 350 MAG. BRAVO MPI(GEN+) GM 350 V-8 1996 0F602000 THRU 0K001500
-
№АртикулНазвание
-
146-807151A12 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
246-72774A40 BODYBODY
-
387631A4 COVERCOVER
-
410-73275 SCREW (2-7/8 IN.)SCREW (2-7/8 IN.)
-
410-99347 SCREW (3-3/4 IN.)SCREW (3-3/4 IN.)
-
512-20084 WASHERWASHER
-
627-8052151 GASKETGASKET
-
794916 OUTER WEAR PLATEOUTER WEAR PLATE
-
827-94914 GASKETGASKET
-
919-59504 PLUGPLUG
-
1047-59362T1 IMPELLERIMPELLER
-
1194576 INNER WEAR PLATEINNER WEAR PLATE
-
1225-94288 QUAD RINGQUAD RING
-
1346-94913A2 PUMP HOUSING ASSEMBLYPUMP HOUSING ASSEMBLY
-
1426-90562 OIL SEALOIL SEAL
-
1530-72961 BALL BEARINGBALL BEARING
-
1659501A1 SHAFTSHAFT
-
1753-23720 SNAP RINGSNAP RING
-
1826-72785 OIL SEALOIL SEAL
-
1947530 HUBHUB
-
2052822T PULLEYPULLEY
-
2110-47277 SCREW (3/4 IN.)SCREW (3/4 IN.)
-
2213-39107 LOCKWASHERLOCKWASHER
-
2311-21908 NUTNUT
-
2489535T1 BRACKETBRACKET
-
2510-34353 SCREW (1 IN.)SCREW (1 IN.)
-
2613-35048 LOCKWASHERLOCKWASHER
-
2712-34714 WASHERWASHER
-
28896091 BRACEBRACE
-
2910-26487 SCREW (1 IN.)SCREW (1 IN.)
-
3013-35048 LOCKWASHERLOCKWASHER
-
3112-34714 WASHERWASHER
-
3210-35786 SCREW (1 IN.)SCREW (1 IN.)
-
3313-35048 LOCKWASHERLOCKWASHER
-
3411-46335 NUTNUT
-
3522-328022 PLUG (FOR WATER PUMP BODY)PLUG (FOR WATER PUMP BODY)
-
3657-13457Q BELTBELT
