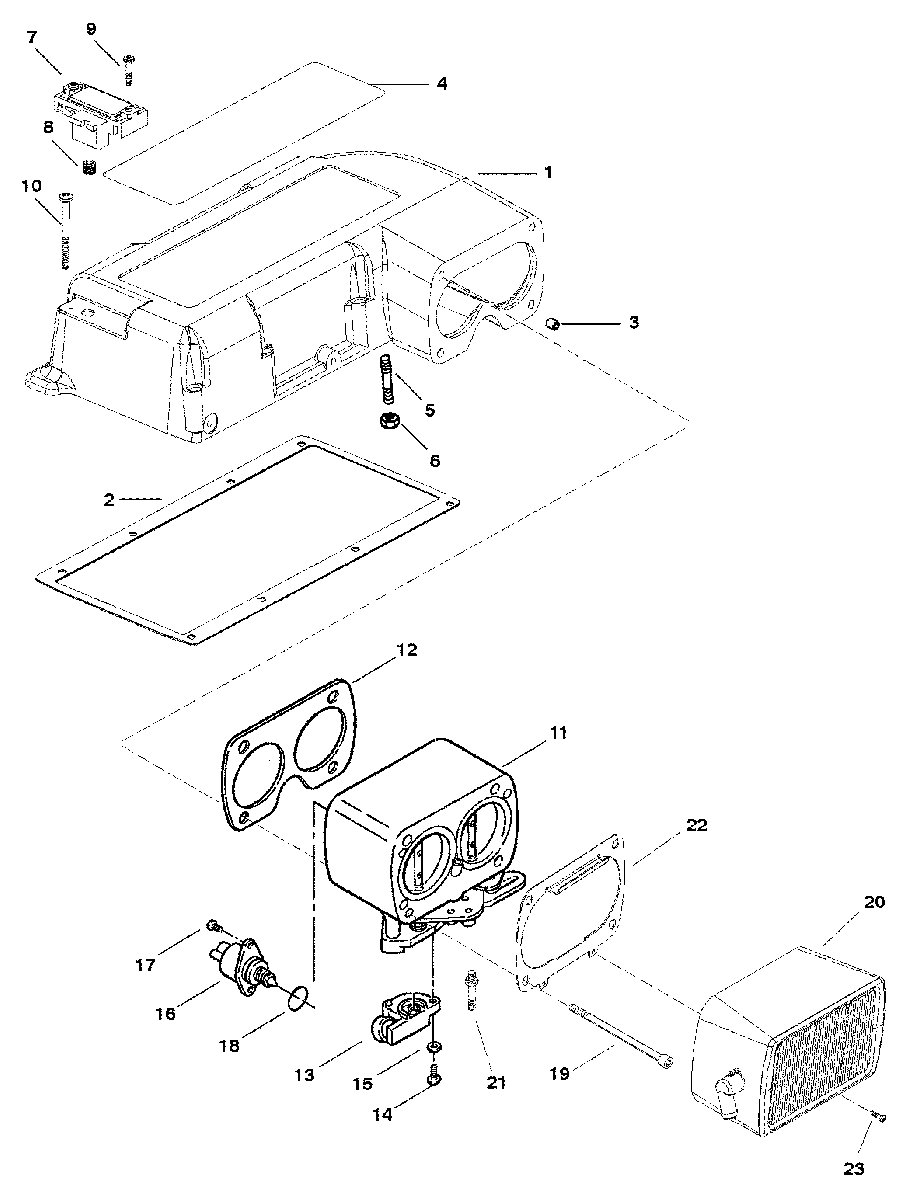

INTAKE PLENUM AND FLAME ARRESTOR для Mercruiser - 350 MAG. BRAVO MPI(GEN+) GM 350 V-8 1997 0K001501 AND UP
-
№АртикулНазвание
-
1806811A1 PLENUM ASSEMBLY-INTAKEPLENUM ASSEMBLY-INTAKE
-
227-807670 GASKETGASKET
-
323-52698 SLEEVESLEEVE
-
437-807474 DECALDECAL
-
516-728091 STUD (1/4 X 1-5/8 IN.)STUD (1/4 X 1-5/8 IN.)
-
611-807082 NUT (1/4-28)NUT (1/4-28)
-
7864856A1 SENSOR-MAPSENSOR-MAP
-
826-805412 SEAL-MAP SENSORSEAL-MAP SENSOR
-
910-807120 SCREW (#10-24 X 1 IN.)SCREW (#10-24 X 1 IN.)
-
1010-806953 SCREW (1/4-20 X 2-3/4 IN.)SCREW (1/4-20 X 2-3/4 IN.)
-
11860204A5 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
1227-805396 GASKETGASKET
-
13805226A1 SENSOR-TPSSENSOR-TPS
-
1410-805400 SCREW (#8-32 X 1/2 IN.)SCREW (#8-32 X 1/2 IN.)
-
1512-28001 WASHERWASHER
-
16805224A1 IAC MOTORIAC MOTOR
-
1710-805400 SCREW (#8-32 X 1/2 IN.)SCREW (#8-32 X 1/2 IN.)
-
1825-808547 O-RINGO-RING
-
1910-808040 SCREW (5/16-18 X 4 IN.)SCREW (5/16-18 X 4 IN.)
-
20807656A2 FLAME ARRESTORFLAME ARRESTOR
-
2116-805526 STUD (1/4-28 X 1-1/8 IN.)STUD (1/4-28 X 1-1/8 IN.)
-
22807654T BRACKET-FLAME ARRESTORBRACKET-FLAME ARRESTOR
-
2310-808039 SCREW (#6-32)SCREW (#6-32)
-
-27-806988A96 GASKET SET-ENGINE OVERHAULGASKET SET-ENGINE OVERHAUL
