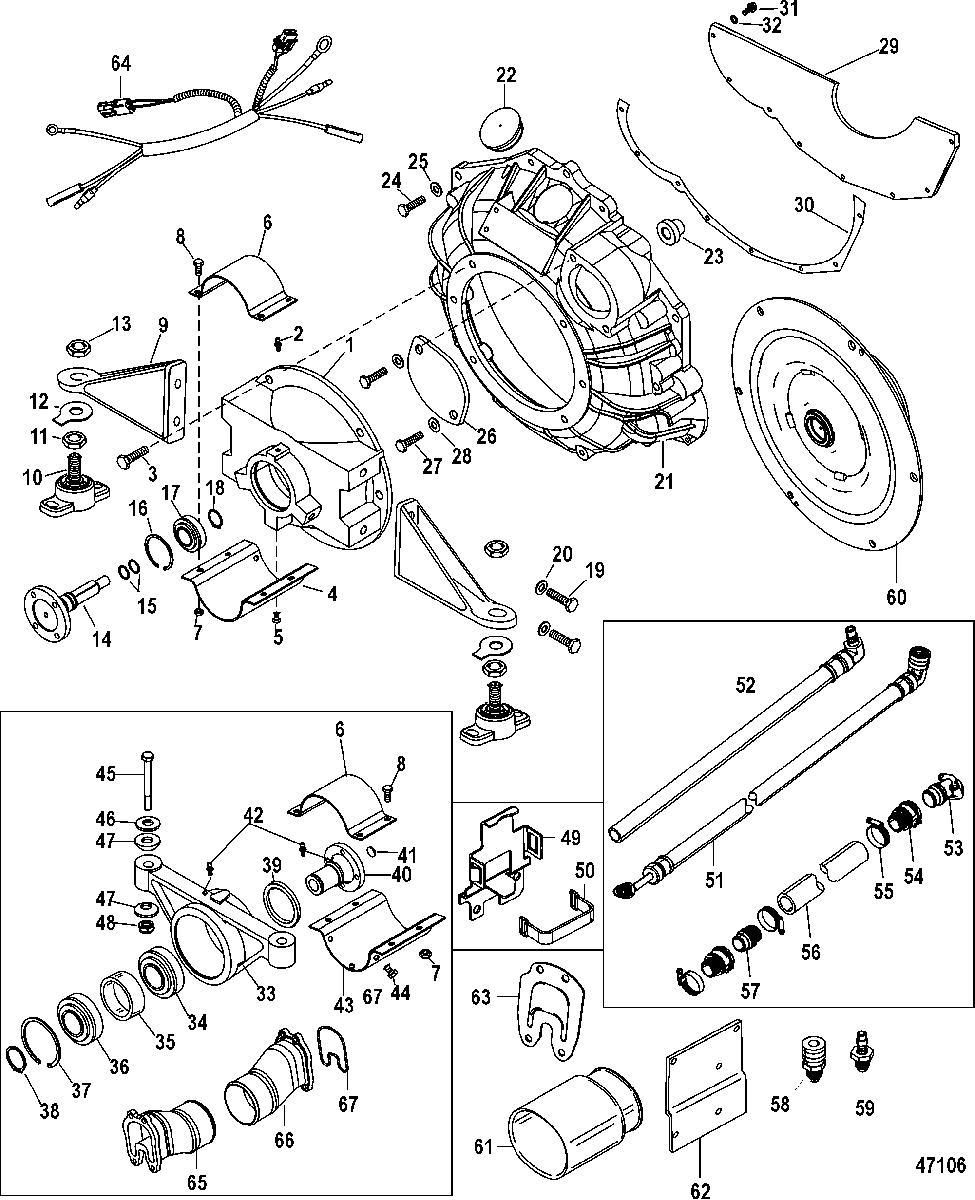

Jackshaft Main Kit для Mercruiser - 350 MAG MPI ALPHA/BRAVO EC 1A611928 THRU 1A623184
-
№АртикулНазвание
-
-98634A20 EXTENSION KIT, Jackshaft KitEXTENSION KIT, Jackshaft Kit
-
193911A4 HOUSING ASSEMBLY, Shaft Extension SupportHOUSING ASSEMBLY, Shaft Extension Support
-
222-74036 FITTING, Grease
(Use with greased bearing)FITTING, Grease
(Use with greased bearing) -
210-8M2015913 PLUG, (.250-28 x .320)
(Use with non-greased bearing)PLUG, (.250-28 x .320)
(Use with non-greased bearing) -
310-47651 SCREW, (.437-14 x 1.50)SCREW, (.437-14 x 1.50)
-
493918A1 SHIELD, LowerSHIELD, Lower
-
510-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
693919A1 SHIELD, UpperSHIELD, Upper
-
711-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
810-96995 SCREW, (.375-16 x .880)SCREW, (.375-16 x .880)
-
993923A1 MOUNT ASSEMBLY, Flywheel HousingMOUNT ASSEMBLY, Flywheel Housing
-
10814263A1 BASE ASSEMBLY, Mount AssemblyBASE ASSEMBLY, Mount Assembly
-
1111-816331 NUT, (.750-16), JamNUT, (.750-16), Jam
-
1214-12657 TAB WASHERTAB WASHER
-
1311-859126 NUT, (.750-16)NUT, (.750-16)
-
1493906A2 SHAFT, OutputSHAFT, Output
-
1525-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
1653-94104 RING, RetainingRING, Retaining
-
1730-879194A03 GIMBAL BEARING KITGIMBAL BEARING KIT
-
1853-8M0141818 RING, RetainingRING, Retaining
-
1910-47651 SCREW, (.437-14 x 1.50)SCREW, (.437-14 x 1.50)
-
2013-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
21814309A1 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
2219-12304 PLUG, Timing WindowPLUG, Timing Window
-
2323-49126 BUSHING, Pilot
V8BUSHING, Pilot
V8 -
2330-863864 BEARING, Pilot
496BEARING, Pilot
496 -
2410-68101 SCREW, (.375-16 x 1.375)SCREW, (.375-16 x 1.375)
-
2410-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2410-47688 SCREW, (.375-16 x 2.750)SCREW, (.375-16 x 2.750)
-
2513-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
26939201 PLATE, CoverPLATE, Cover
-
2710-92913 SCREW, (.437-14 x .750)SCREW, (.437-14 x .750)
-
2813-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
29818718A3 COVER KIT, Flywheel InspectionCOVER KIT, Flywheel Inspection
-
3027-86015 GASKET, Flywheel Inspection CoverGASKET, Flywheel Inspection Cover
-
3110-98253 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
3213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
33817416A4 HOUSING ASSEMBLY, BearingHOUSING ASSEMBLY, Bearing
-
3430-93944A2 BEARING SET, Ball
Includes Part Number 36BEARING SET, Ball
Includes Part Number 36 -
3523-817417T SPACERSPACER
-
3630-93944A2 BEARING SET, Ball
Includes Part Number 34BEARING SET, Ball
Includes Part Number 34 -
3753-93914 RING, RetainingRING, Retaining
-
3853-93915 RING, RetainingRING, Retaining
-
3926-93924 SEAL, OilSEAL, Oil
-
40NSS NOT SOLD SEPARATE, Input ShaftNOT SOLD SEPARATE, Input Shaft
-
4119-93921 EXPANSION PLUGEXPANSION PLUG
-
4222-74036 FITTING, GreaseFITTING, Grease
-
4393918A1 SHIELD, LowerSHIELD, Lower
-
4410-76926 SCREW, (.375-16 x .875)SCREW, (.375-16 x .875)
-
4510-57053 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
4612-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
4712-42307 WASHER, SphericalWASHER, Spherical
-
4811-898832 NUT, (.500-20)NUT, (.500-20)
-
49860065A1 BRACKET KITBRACKET KIT
-
50808023T STRAPSTRAP
-
5132-8M0063022 HOSE, Female Quick Connect (Fittings on Both Ends)HOSE, Female Quick Connect (Fittings on Both Ends)
-
5232-865390134 HOSE, Male Quick Connect (Fittings on One End)HOSE, Male Quick Connect (Fittings on One End)
-
53865470 HOUSING, InletHOUSING, Inlet
-
5422-865324 QUICK CONNECTQUICK CONNECT
-
5554-815504222 CLAMP, Worm Gear (1.98 DIameter)CLAMP, Worm Gear (1.98 DIameter)
-
5632-8M0062666 HOSE, (96.00 Inches Bulk)
(Cut to 13 Inches)HOSE, (96.00 Inches Bulk)
(Cut to 13 Inches) -
5722-865362 QUICK CONNECTQUICK CONNECT
-
5822-865415 FITTING, PS ReturnFITTING, PS Return
-
5922-865414001 FITTING, PS PressureFITTING, PS Pressure
-
608M0098797 COUPLER ASSEMBLY, Engine - Short Steel HubCOUPLER ASSEMBLY, Engine - Short Steel Hub
-
6178458A1 TUBETUBE
-
6241063A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
63861776A2 PLATE KITPLATE KIT
-
6484-41575A10 HARNESS ASSEMBLY
AlphaHARNESS ASSEMBLY
Alpha -
6484-41575A11 HARNESS ASSEMBLY
BravoHARNESS ASSEMBLY
Bravo -
65862268T1 TUBETUBE
-
66862268T2 TUBETUBE
-
6741802 SEAL, RubberSEAL, Rubber
