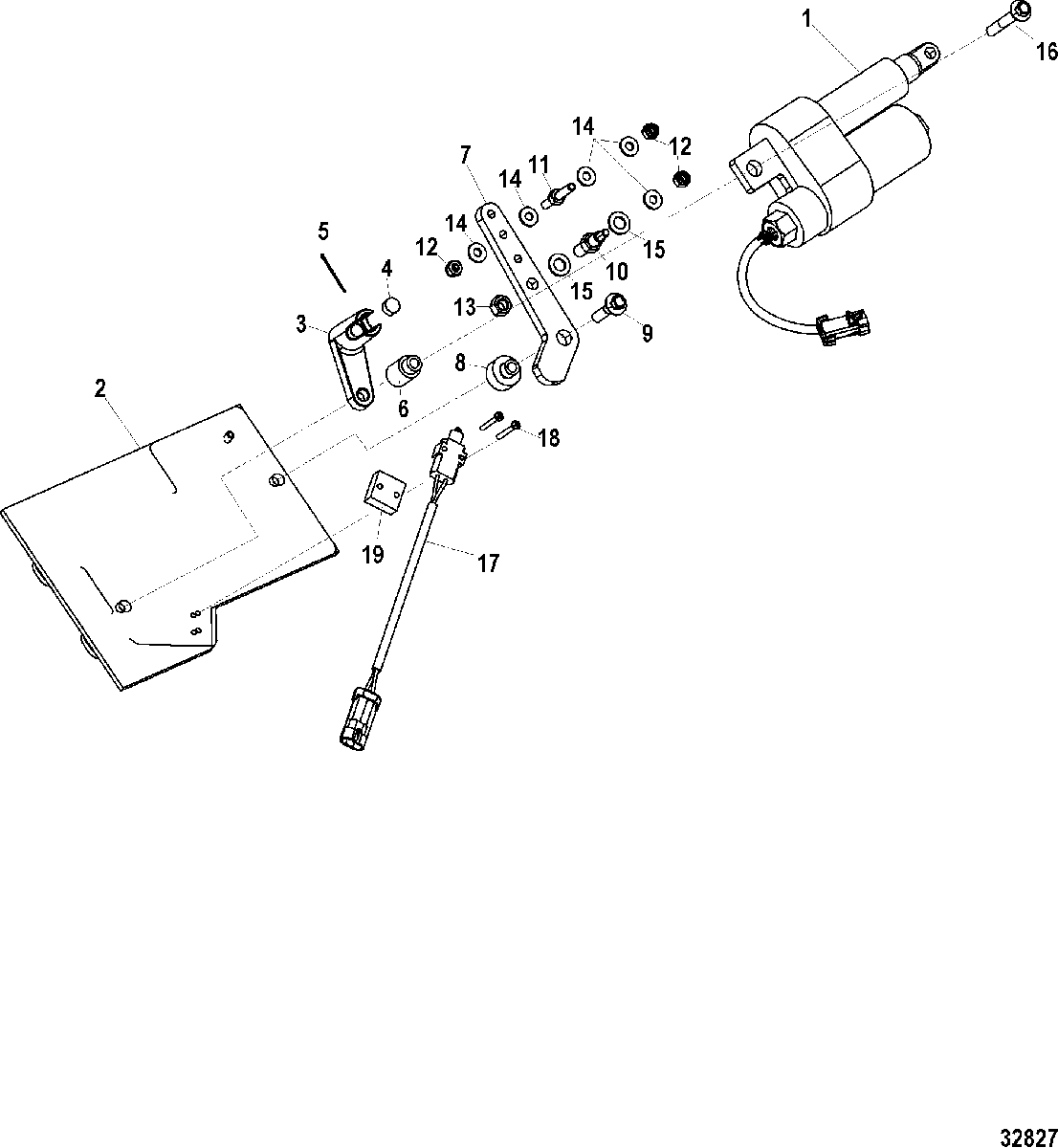

Shift Bracket, Digital Throttle and Shift для Mercruiser - 350 MAG MPI ALPHA/BRAVO EC 1A623185 & Up
-
№АртикулНазвание
-
1879194T46 SHIFT ACTUATOR
DTSSHIFT ACTUATOR
DTS -
28M2009815 BRACKET, Shift PlateBRACKET, Shift Plate
-
38M2009720 RETAINER, Shift CableRETAINER, Shift Cable
-
423-98828 SPACERSPACER
-
518-328571 COTTER PINCOTTER PIN
-
623-863133 SPACER, ActuatorSPACER, Actuator
-
78M2018371 LEVER, Shift ArmLEVER, Shift Arm
-
823-863132 SPACER, Shift ArmSPACER, Shift Arm
-
910-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
1016-864361 STUDSTUD
-
1116-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
1211-8267119 NUT, (.250-28)NUT, (.250-28)
-
1311-46335 NUT, (.375-24)NUT, (.375-24)
-
1412-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1512-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1610-40011155 SCREW, (M8 x 55) Stainless SteelSCREW, (M8 x 55) Stainless Steel
-
1787-8M0052939 SWITCHSWITCH
-
1810-865076 SCREW, (6-32 x 1.25)SCREW, (6-32 x 1.25)
-
1923-864386 SPACER, SwitchSPACER, Switch
