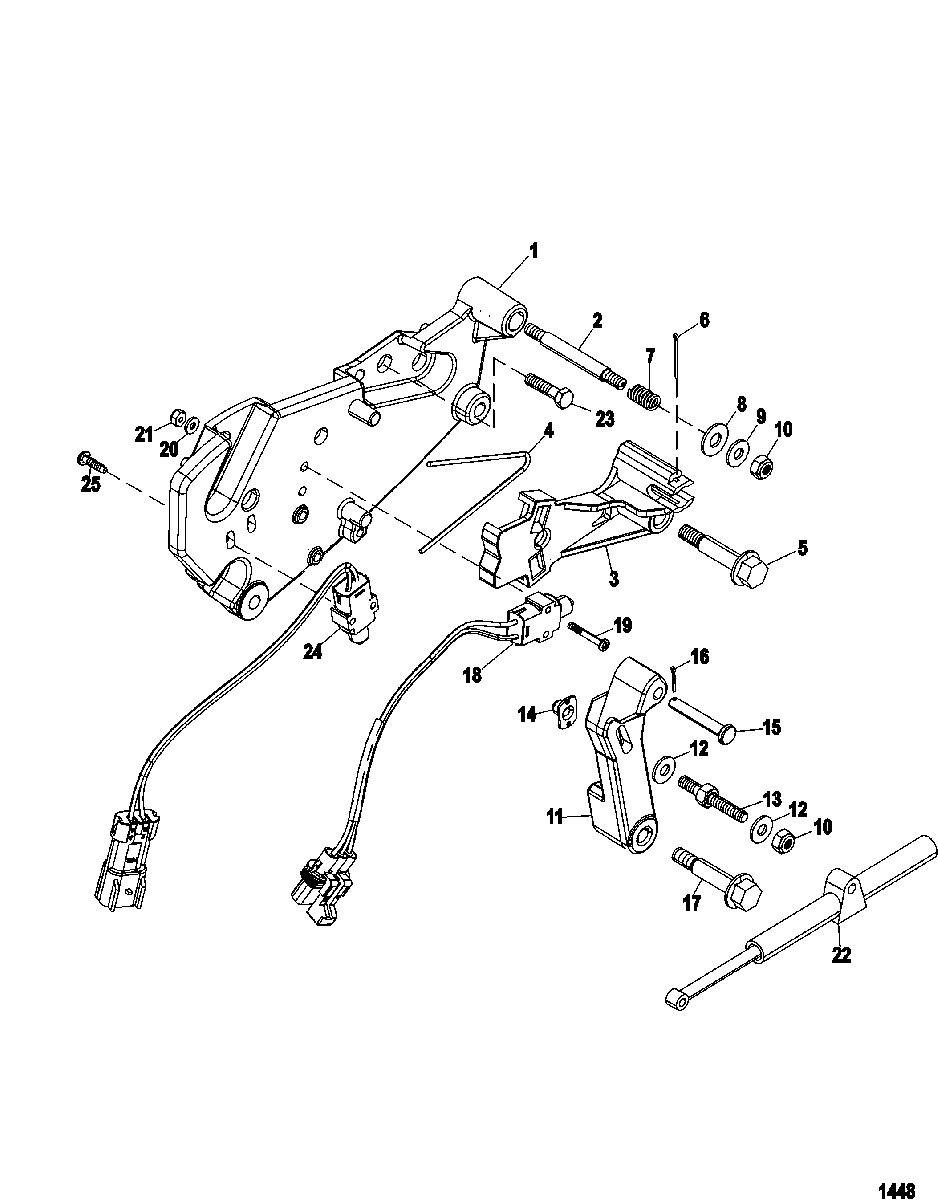

Shift Bracket(Alpha Engines) для Mercruiser - 350 MAG MPI ALPHA/BRAVO 0M300000 THRU 0M599999
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLY, ShiftBRACKET ASSEMBLY, Shift
-
2865149A02 STUD, (.250 x 2.870)STUD, (.250 x 2.870)
-
3865433A02 LEVER ASSEMBLY, ActuatingLEVER ASSEMBLY, Actuating
-
424-862850 SPRINGSPRING
-
510-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
618-328571 COTTER PIN, CotterCOTTER PIN, Cotter
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1011-8267119 NUT, (.250-28)NUT, (.250-28)
-
1113898T06 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
1212-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1316-865393A02 STUD, (.250-28 x 1.90)STUD, (.250-28 x 1.90)
-
1411-63341 TEE NUTTEE NUT
-
1517-814001 PIN, ClevisPIN, Clevis
-
1618-210711 COTTER PIN, CotterCOTTER PIN, Cotter
-
1710-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
1887-8M0052935 SWITCH ASSEMBLY, Shift InterruptSWITCH ASSEMBLY, Shift Interrupt
-
1910-860077 SCREW, (#6-32 x 1.00)SCREW, (#6-32 x 1.00)
-
2012-11303 WASHERWASHER
-
2111-F1669 NUT, (#6-32)NUT, (#6-32)
-
22813995A1 GUIDE ASSEMBLY, SpringGUIDE ASSEMBLY, Spring
-
2310-657461 SCREW AND LOCKWASHER, (.250-20 x .625)SCREW AND LOCKWASHER, (.250-20 x .625)
-
2487-8M0052936 SWITCH ASSEMBLY, Gear IndicationSWITCH ASSEMBLY, Gear Indication
-
2510-88904 SCREW, (#8-18 x .620)SCREW, (#8-18 x .620)
