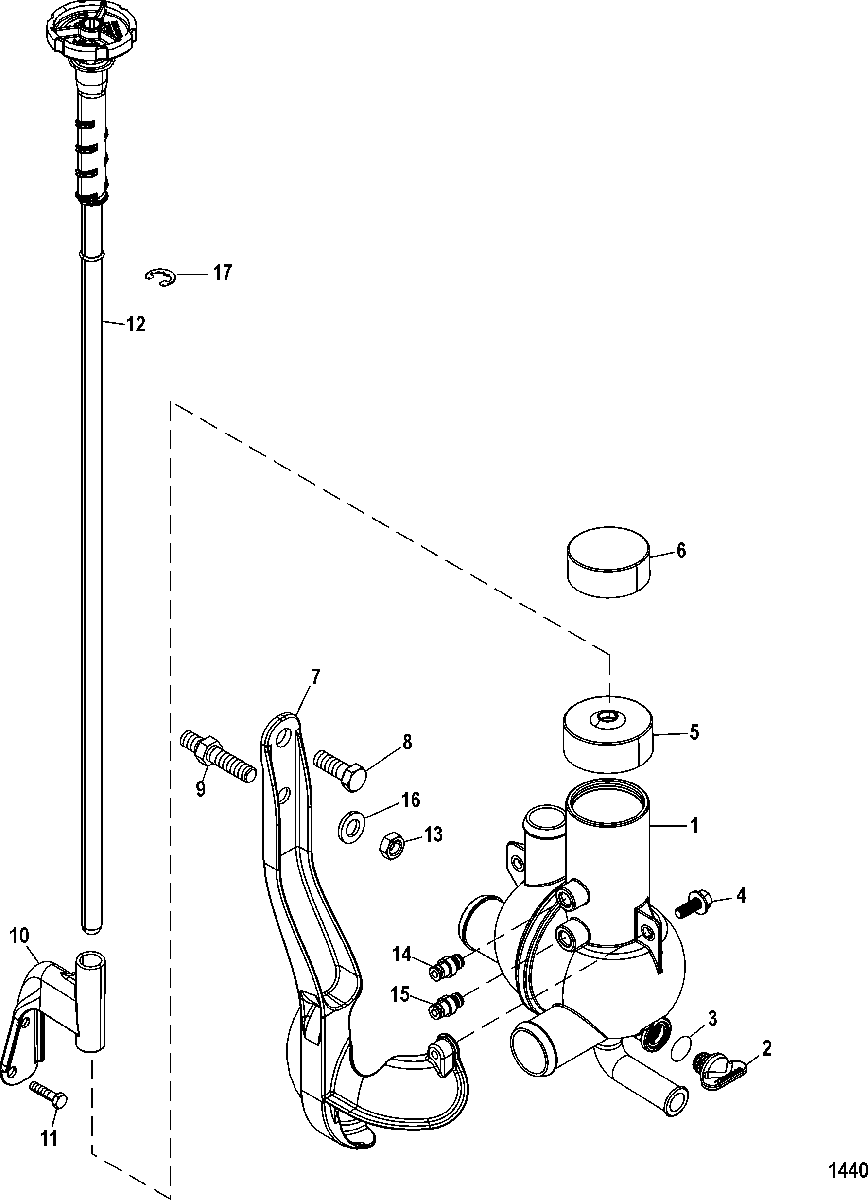

Water Distribution Housing для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO EC 1A611928 THRU 1A623184
-
№АртикулНазвание
-
1863444T1 HOUSING, Water Distribution
Single Point Drain (Standard Cooling)HOUSING, Water Distribution
Single Point Drain (Standard Cooling) -
1863444T2 HOUSING, Water Distribution
Air Actuated Drain (Standard Cooling)HOUSING, Water Distribution
Air Actuated Drain (Standard Cooling) -
1863631T1 HOUSING, Water Distribution
3 Point and 7 Point Drain (Standard Cooling)HOUSING, Water Distribution
3 Point and 7 Point Drain (Standard Cooling) -
1863802T2 HOUSING, Water Distribution
Air Actuated Drain (Closed Cooling)HOUSING, Water Distribution
Air Actuated Drain (Closed Cooling) -
222-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
325-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
-
410-8175051 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
5863839 COVER
Rod ActuatedCOVER
Rod Actuated -
6863865 COVER
Manual DrainCOVER
Manual Drain -
7863449T BRACKET, Water Distribution HousingBRACKET, Water Distribution Housing
-
810-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
916-8M2004610 STUD, (.375-16 x 2.130)STUD, (.375-16 x 2.130)
-
10863451T BRACKET, Water Drain ActuatorBRACKET, Water Drain Actuator
-
1110-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
12863381A1 DRAIN ROD ASSEMBLYDRAIN ROD ASSEMBLY
-
1311-32219 NUT, (.375-16)NUT, (.375-16)
-
1422-863499 FITTING, Air Valve
Component of Air Actuated Housing OnlyFITTING, Air Valve
Component of Air Actuated Housing Only -
1522-863467 FITTING, Air Valve
Component of Air Actuated Housing OnlyFITTING, Air Valve
Component of Air Actuated Housing Only -
1613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1753-863741 E-RINGE-RING
