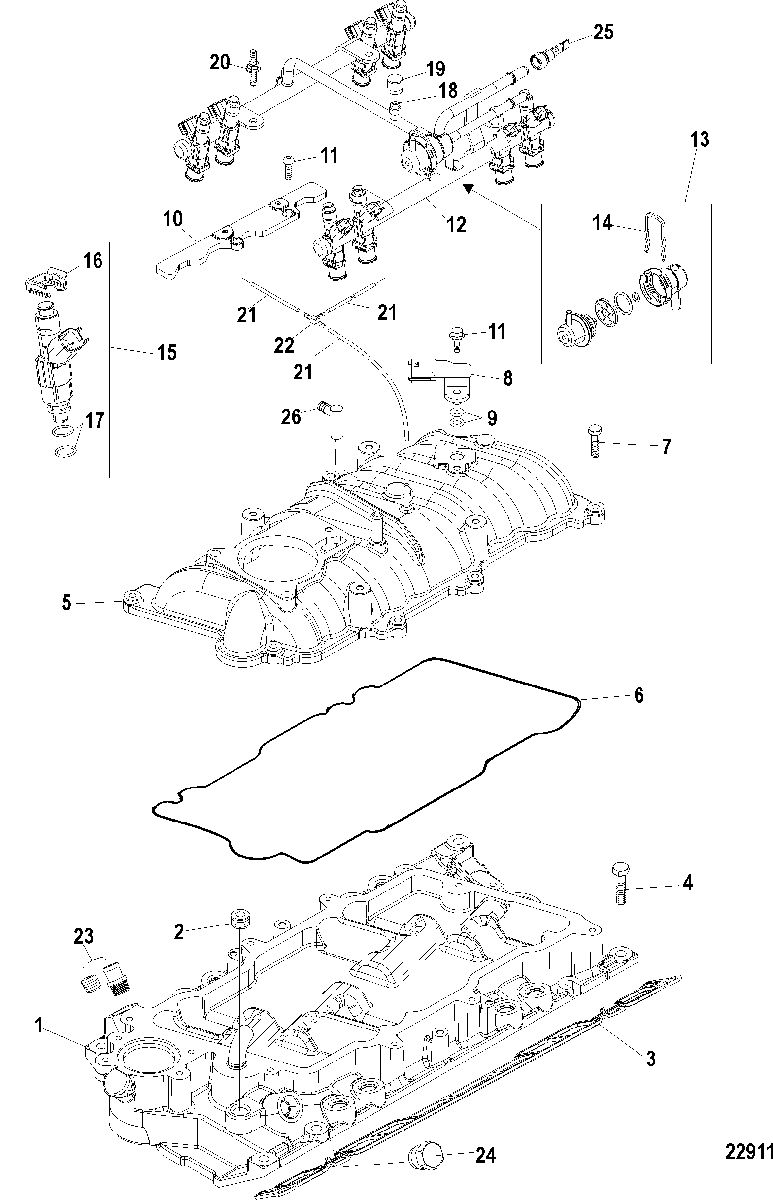

Intake Manifold and Fuel Rail для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO 0W650000 THRU 1A299999
-
№АртикулНазвание
-
18M0104793 MANIFOLD, Intake, Lower
SN# 1A064824 & BelowMANIFOLD, Intake, Lower
SN# 1A064824 & Below -
18M0097032 MANIFOLD, Intake, Lower
SN# 1A064825 & UpMANIFOLD, Intake, Lower
SN# 1A064825 & Up -
222-12524 PLUG, (.375-18 x .475) BrassPLUG, (.375-18 x .475) Brass
-
327-807473A1 GASKET SET, Intake ManifoldGASKET SET, Intake Manifold
-
410-808010 SCREW, (.312-18 x 1.375)SCREW, (.312-18 x 1.375)
-
58M0097033 MANIFOLD, Intake, UpperMANIFOLD, Intake, Upper
-
627-8M0097034 GASKET, Intake ManifoldGASKET, Intake Manifold
-
710-885166 SCREWSCREW
-
88M0087834 SENSOR, Manifold Air Pressure and TemperatureSENSOR, Manifold Air Pressure and Temperature
-
925-881733 SEALSEAL
-
10NSS NOT SOLD SEPARATE, Bracket
Component of 885164NOT SOLD SEPARATE, Bracket
Component of 885164 -
1110-885180 SCREWSCREW
-
128M0070997 FUEL RAIL ASSEMBLYFUEL RAIL ASSEMBLY
-
13885174 REGULATOR, Fuel PressureREGULATOR, Fuel Pressure
-
14885175 CLIP, RetainingCLIP, Retaining
-
15885176 INJECTOR
SN# 1A064824 & BelowINJECTOR
SN# 1A064824 & Below -
15879312003 INJECTOR
SN# 1A064825 & UpINJECTOR
SN# 1A064825 & Up -
168M2001570 RETAINER, InjectorRETAINER, Injector
-
1725-892609 O-RING KIT
SN# 1A064824 & UpO-RING KIT
SN# 1A064824 & Up -
1725-8M0046869 O-RING KIT
SN# 1A064825 & UpO-RING KIT
SN# 1A064825 & Up -
18885178 VALVE, Fuel Pressure ServiceVALVE, Fuel Pressure Service
-
19885179 CAP, Fuel Pressure Sevice ValveCAP, Fuel Pressure Sevice Valve
-
2010-885180 SCREWSCREW
-
2132-8M0063567 HOSE, (58.00 Inches Bulk), Cut to Appropriate LengthHOSE, (58.00 Inches Bulk), Cut to Appropriate Length
-
2222-806689 FITTING, TeeFITTING, Tee
-
2322-384071 PLUG, Pipe (.500)PLUG, Pipe (.500)
-
2322-806242 CONNECTOR, Barb
Closed CoolingCONNECTOR, Barb
Closed Cooling -
2422-866157 PLUG, EGR PortPLUG, EGR Port
-
2522-8623601 PLUG, Fuel Rail Block OffPLUG, Fuel Rail Block Off
-
2622-863432T FITTING, 90 Degree VentFITTING, 90 Degree Vent
-
-27-861246A05 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
