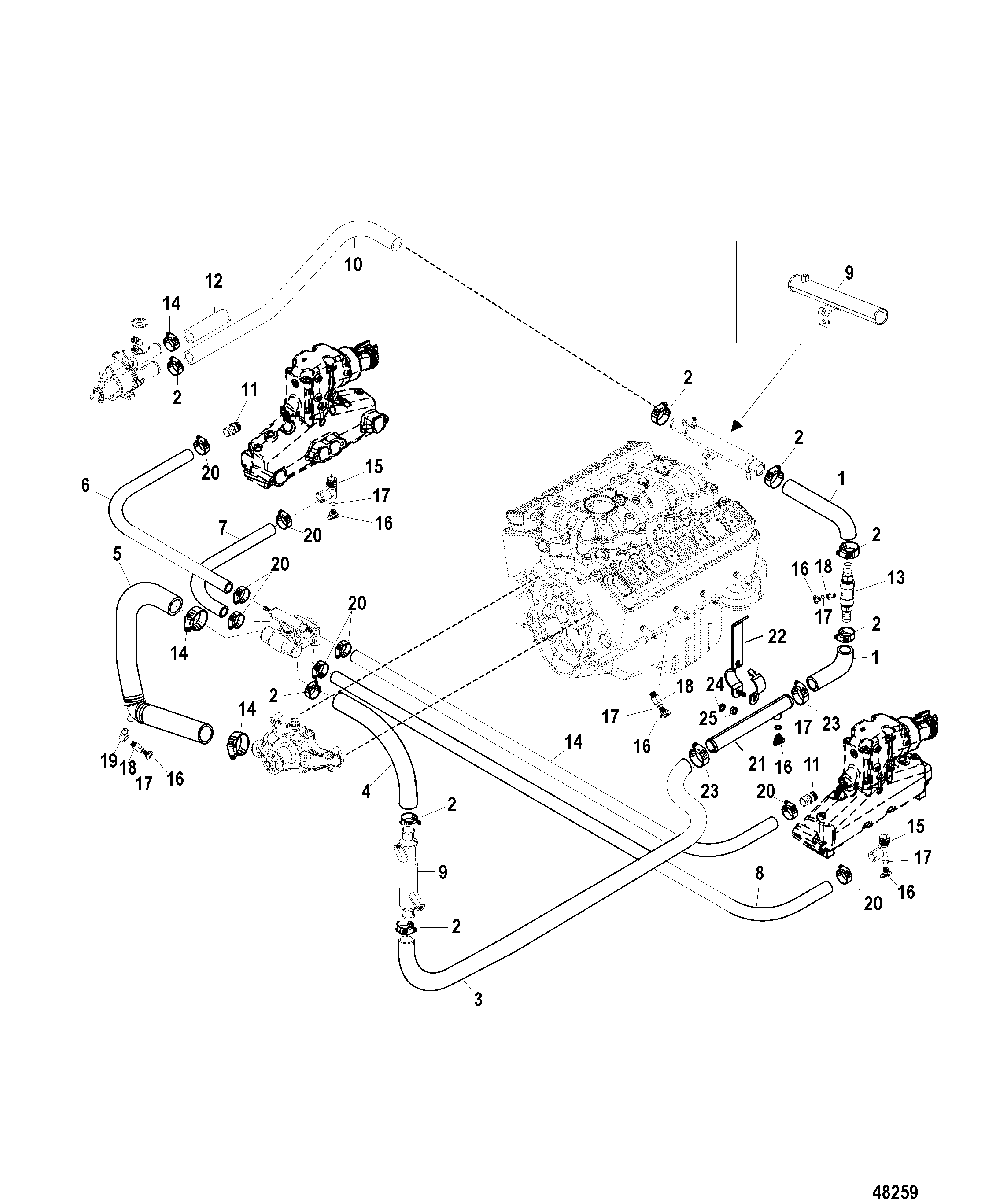

Standard Cooling System, 383 Mag Bravo 4V для Mercruiser - 357 Alpha 4V 1G400000 & Up
-
№АртикулНазвание
-
132-8600891 HOSE, Molded, Power Steering to Fuel Cooler (Cut into 2 Pieces)HOSE, Molded, Power Steering to Fuel Cooler (Cut into 2 Pieces)
-
254-815504224 CLAMP, (32 - 50 mm)CLAMP, (32 - 50 mm)
-
332-864578 HOSE, Drain Fitting to Check ValveHOSE, Drain Fitting to Check Valve
-
432-864579 HOSE, Check Valve to Thermostat HousingHOSE, Check Valve to Thermostat Housing
-
532-864703A1 HOSE, Circulating Pump to Drain ElbowHOSE, Circulating Pump to Drain Elbow
-
632-8M0062614 HOSE, (48.00 Inches Bulk), Cut into 2 Pieces 1-Port/1-StarboardHOSE, (48.00 Inches Bulk), Cut into 2 Pieces 1-Port/1-Starboard
-
732-863459 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
832-863458 HOSE, Thermostat Housing to Port ManifoldHOSE, Thermostat Housing to Port Manifold
-
9807371T1 COOLER, OilCOOLER, Oil
-
1032-863611 HOSE, Seawater Pump to Steering CoolerHOSE, Seawater Pump to Steering Cooler
-
1122-866725 FITTING, Straight (.750-14), BarbFITTING, Straight (.750-14), Barb
-
1232-8M0062666 HOSE, (96.00 Inches Bulk)HOSE, (96.00 Inches Bulk)
-
1321-862271A1 CHECK VALVECHECK VALVE
-
1454-815504232 CLAMP, Worm GearCLAMP, Worm Gear
-
1522-862210A01 ELBOW KIT, DrainELBOW KIT, Drain
-
1622-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
1725-26802 SEALSEAL
-
1822-860088 BUSHINGBUSHING
-
1922-46982 FITTING, (90 Degree)FITTING, (90 Degree)
-
2054-815504216 CLAMP, (25 - 40 mm)CLAMP, (25 - 40 mm)
-
21860315A1 TUBETUBE
-
22860418T BRACKETBRACKET
-
23860417T CLAMPCLAMP
-
2412-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
2511-8267088 NUT, (.250-20)NUT, (.250-20)
