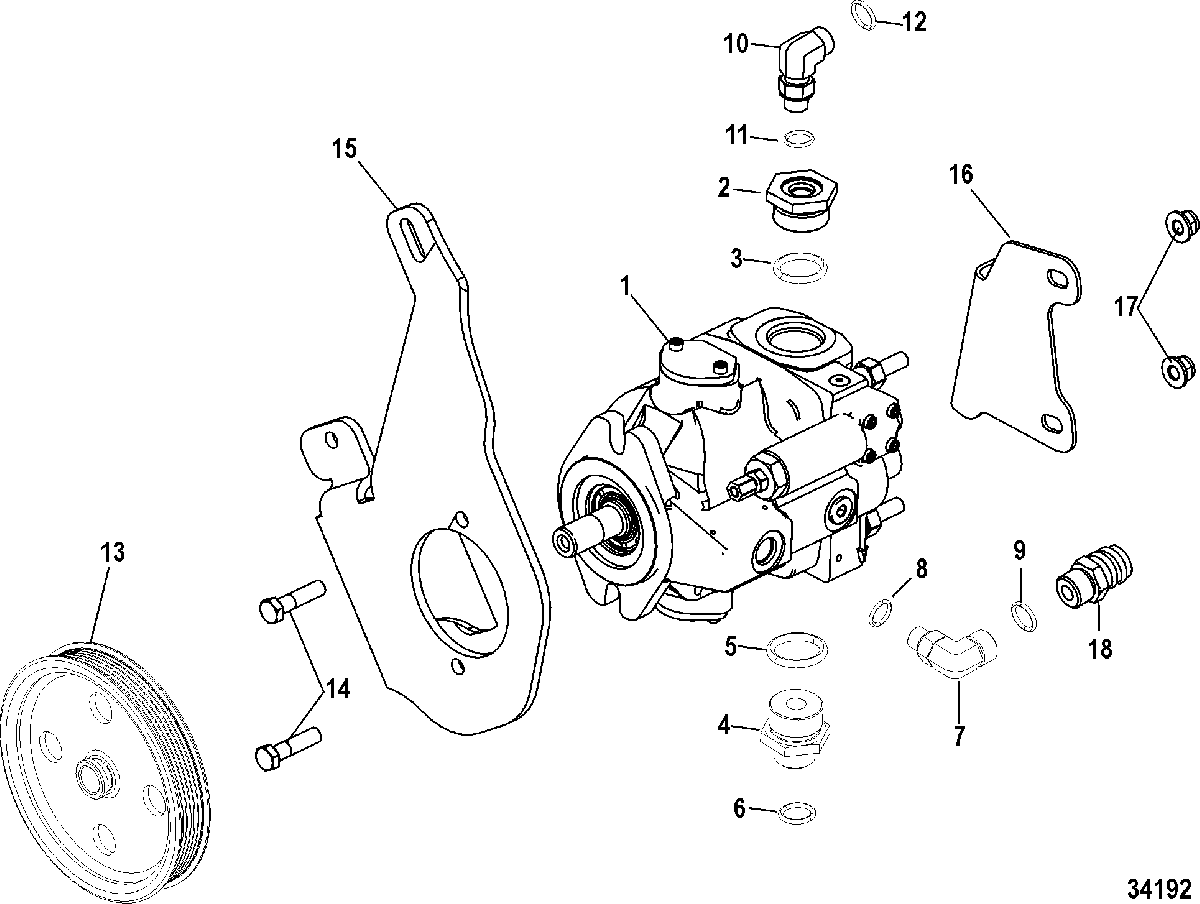

AXIUS Steering, Hydraulic Pump, 1A342859 and Down, Gen I для Mercruiser - 377 MAG MPI BRAVO EC 1A343300 THRU 1A611927
-
№АртикулНазвание
-
1879194T15 PUMP
(See Note 1)PUMP
(See Note 1) -
-22-879172A15 FITTING ASSEMBLY
(See Note 1)FITTING ASSEMBLY
(See Note 1) -
222-8M2006227 FITTING, (1.5 in.)FITTING, (1.5 in.)
-
325-8M2008617 O-RINGO-RING
-
423-8M2006786 ADAPTOR, (1.5 in.)ADAPTOR, (1.5 in.)
-
525-8M2008617 O-RINGO-RING
-
625-8M2008541 O-RINGO-RING
-
722-8M2008375 FITTING, Adapter (-6ORF TO -8ORB), 90 DegreeFITTING, Adapter (-6ORF TO -8ORB), 90 Degree
-
825-8M0047401 O-RING, (.468 X .078)O-RING, (.468 X .078)
-
9NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
1022-8M0033227 FITTING, 90 Degree (Stainless Steel)FITTING, 90 Degree (Stainless Steel)
-
11NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
12NSS NOT SOLD SEPARATE, O-RINGNOT SOLD SEPARATE, O-RING
-
138M2006301 PULLEYPULLEY
-
1410-34354 SCREW, (.375-16 x 1.50)SCREW, (.375-16 x 1.50)
-
15879194T03 BRACKETBRACKET
-
16879288T17 BRACEBRACE
-
1711-860069 NUT, (.375-16)NUT, (.375-16)
-
1822-8M2017518 COUPLING, Quick ConnectCOUPLING, Quick Connect
