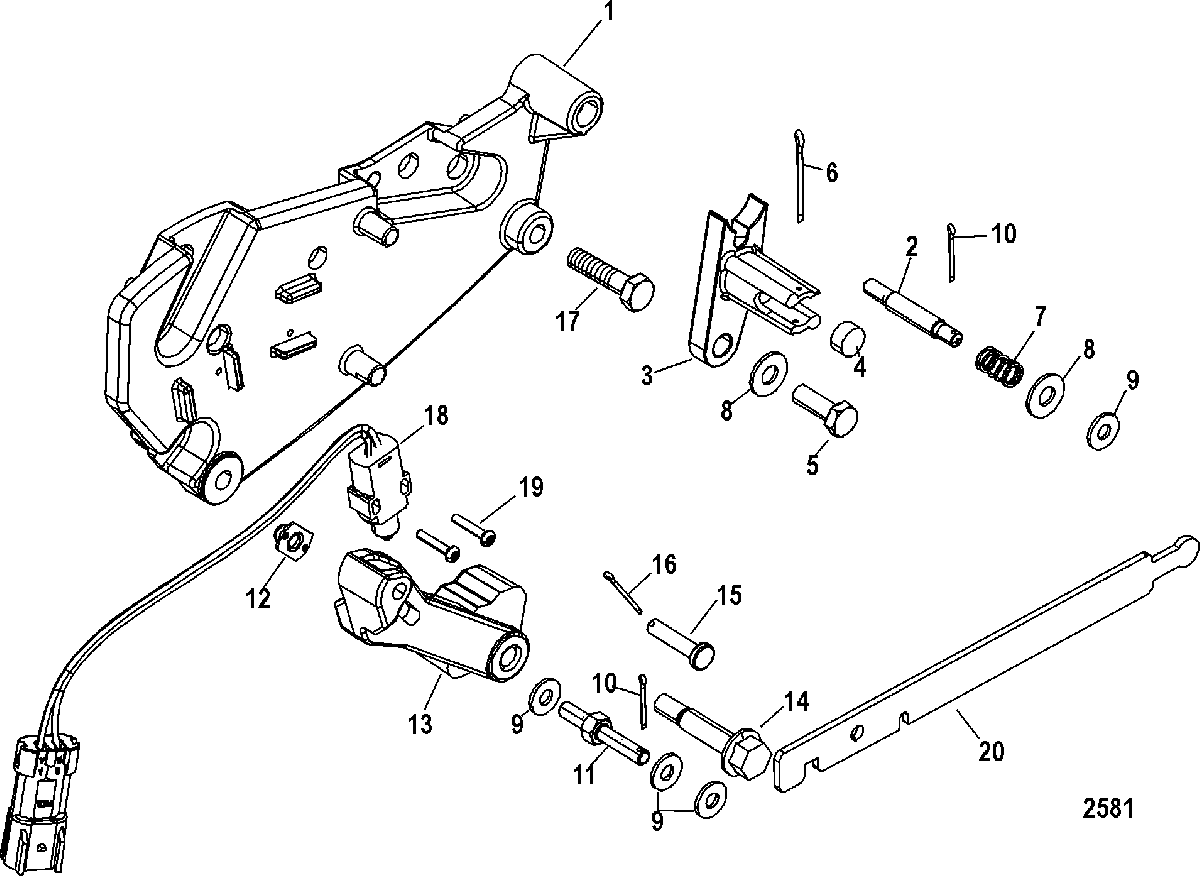

Shift Bracket, Bravo для Mercruiser - 377 MAG MPI BRAVO EC 1A623185 & Up
‹-+›
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLY, ShiftBRACKET ASSEMBLY, Shift
-
216-865154A02 STUD KIT, (.250-20/.250-28 x 2.120), With Cotter PinSTUD KIT, (.250-20/.250-28 x 2.120), With Cotter Pin
-
3865434A02 RETAINER KIT, Shift Cable, With Cotter PinRETAINER KIT, Shift Cable, With Cotter Pin
-
423-98828 SPACERSPACER
-
510-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
618-328571 COTTER PINCOTTER PIN
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1018-210711 COTTER PINCOTTER PIN
-
1116-865393A02 STUD KIT, (.250-28 x 1.90), With Cotter PinSTUD KIT, (.250-28 x 1.90), With Cotter Pin
-
1211-63341 TEE NUTTEE NUT
-
13863911A12 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
1410-865148 SHOULDER SCREW, (.312-18 x 1.843) Stainless SteelSHOULDER SCREW, (.312-18 x 1.843) Stainless Steel
-
1517-68402 PIN, (.250 x 1.13), ClevisPIN, (.250 x 1.13), Clevis
-
1618-210711 COTTER PINCOTTER PIN
-
1710-657461 SCREW AND LOCKWASHER, (.250-20 x .625)SCREW AND LOCKWASHER, (.250-20 x .625)
-
1710-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
(SEACORE)SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
(SEACORE) -
1887-808009T11 SWITCH ASSEMBLY, Gear IndicatorSWITCH ASSEMBLY, Gear Indicator
-
1910-865147T01 SCREW, (#6-32 x .750) Stainless SteelSCREW, (#6-32 x .750) Stainless Steel
-
2091-12427T TOOL, Shift AdjustTOOL, Shift Adjust
