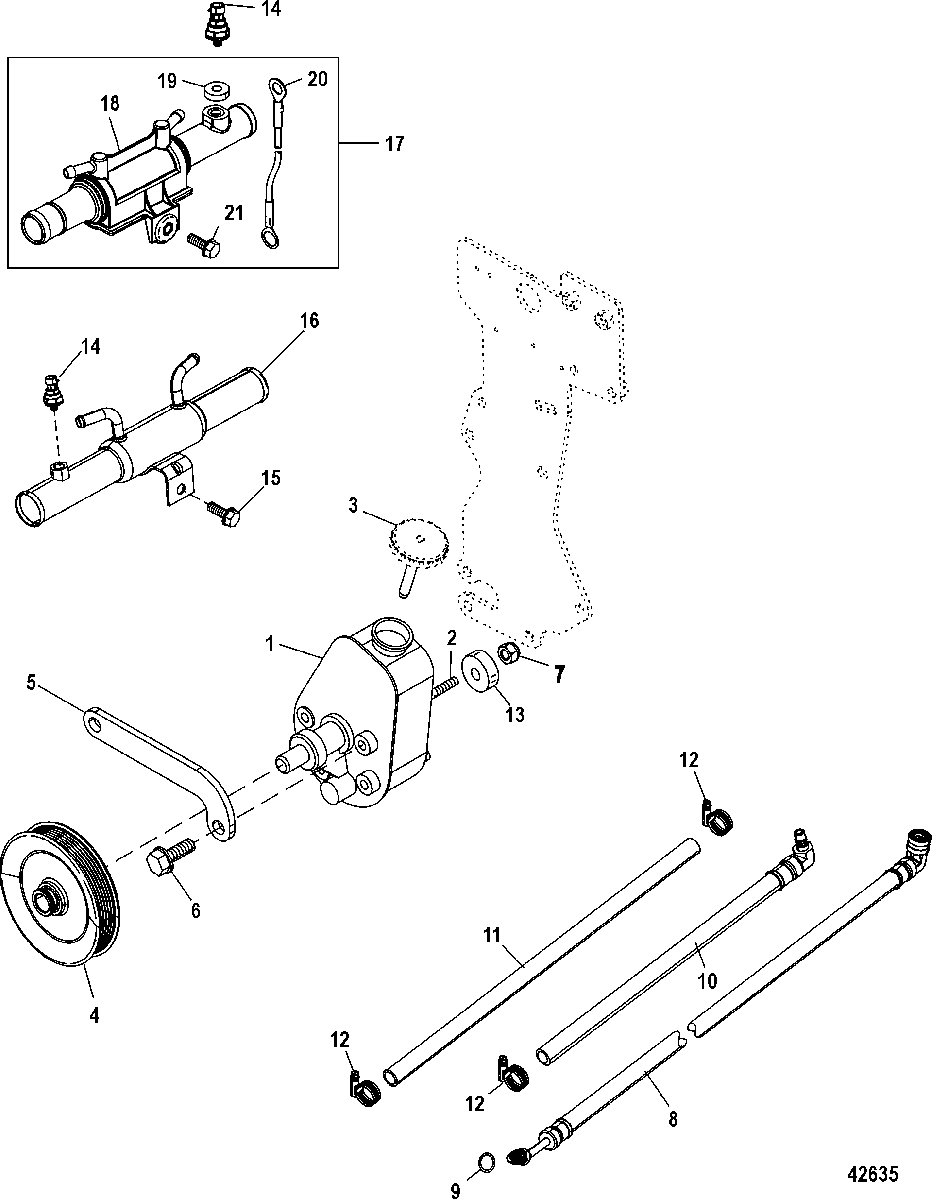

Alpha/Bravo Steering Components для Mercruiser - 377 MAG MPI BRAVO 1A300000 THRU 1A611927
-
№АртикулНазвание
-
116792A39 PUMP ASSEMBLY, Power SteeringPUMP ASSEMBLY, Power Steering
-
216-41877 STUD, (M10)STUD, (M10)
-
336-95805 CAPCAP
-
4861578 PULLEYPULLEY
-
5862082T BRACE, Power SteeringBRACE, Power Steering
-
610-40001188 SCREW, (M10 x 20)SCREW, (M10 x 20)
-
711-90517 NUT, (M10)NUT, (M10)
-
711-8M2000545 NUT, (M10) Stainless Steel
(SEACORE)NUT, (M10) Stainless Steel
(SEACORE) -
832-8M0063020 HOSE, Female Quick Connect, Fittings on Both EndsHOSE, Female Quick Connect, Fittings on Both Ends
-
832-8M0063019 HOSE, Pressure, Fittings on Both Ends
(SEACORE)HOSE, Pressure, Fittings on Both Ends
(SEACORE) -
832-8M0063022 HOSE, Female Quick Connect, Fittings on Both Ends
Jackshaft ModelsHOSE, Female Quick Connect, Fittings on Both Ends
Jackshaft Models -
925-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
-
1032-865390015 HOSE, Male Quick Connect, Fitting on One EndHOSE, Male Quick Connect, Fitting on One End
-
1032-865390134 HOSE, Male Quick Connect, Fitting on One End
Jackshaft ModelsHOSE, Male Quick Connect, Fitting on One End
Jackshaft Models -
1132-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler (37 Inch)HOSE, (53.00 Inches Bulk), Pump to Oil Cooler (37 Inch)
-
1254-815504105 CLAMP, Worm Gear (12 - 20 mm), HoseCLAMP, Worm Gear (12 - 20 mm), Hose
-
1323-905201 SPACER, (.750 x .250)SPACER, (.750 x .250)
-
148M6000623 SENSORSENSOR
-
1510-816585 SCREW, (.375-18 x .875)SCREW, (.375-18 x .875)
-
168M0125856 COOLER, Power Steering
MetalCOOLER, Power Steering
Metal -
178M0125856 COOLER ASSEMBLY, Power Steering
CompositeCOOLER ASSEMBLY, Power Steering
Composite -
188M0125856 COOLER, Power Steering
CompositeCOOLER, Power Steering
Composite -
1923-8M2017227 SPACERSPACER
-
2084-8M2100159 HARNESS, GroundHARNESS, Ground
-
2110-8M2016106 SCREW, (.312 x 1.25)SCREW, (.312 x 1.25)
-
NS19-8M0074363 COVER, Hose Clamp End
(.25 Inside Diameter)COVER, Hose Clamp End
(.25 Inside Diameter) -
NS19-8M0074364 COVER, Hose Clamp End
(.375 Inside Diameter)COVER, Hose Clamp End
(.375 Inside Diameter) -
NS77054 TIE STRAP, (14.50 Inches)TIE STRAP, (14.50 Inches)
