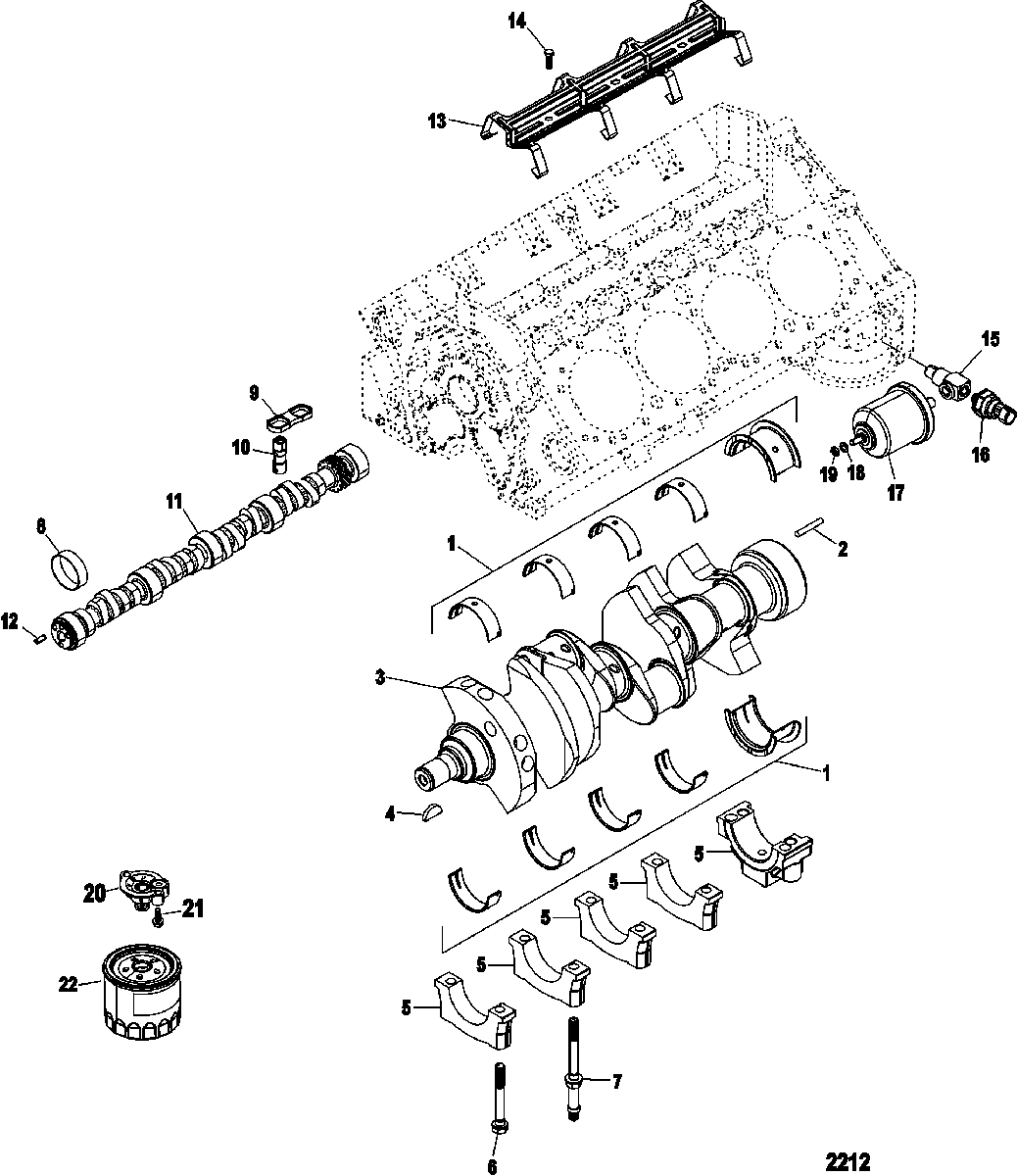

Cylinder Block, Camshaft and Crankshaft для Mercruiser - 383 Mag Inboard 4V 1G400000 & Up
-
№АртикулНазвание
-
131-849396 BEARING SET, Standard - 5 PairBEARING SET, Standard - 5 Pair
-
131-849395 BEARING SET, (.001 Oversize) 5 PairBEARING SET, (.001 Oversize) 5 Pair
-
131-849394 BEARING SET, (.001 Undersize) 5 PairBEARING SET, (.001 Undersize) 5 Pair
-
217-43504 PIN, DowelPIN, Dowel
-
3429-863323T1 CRANKSHAFTCRANKSHAFT
-
428-862594 KEY, CrankshaftKEY, Crankshaft
-
5NSS NOT SOLD SEPARATE, Cap-Crankshaft BearingNOT SOLD SEPARATE, Cap-Crankshaft Bearing
-
610-8625671 SCREW, Crankshaft Bearing CapSCREW, Crankshaft Bearing Cap
-
716-850090 STUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing CapSTUD, (.437-14/.375-16 x 3.360), Crankshaft Bearing Cap
-
823-85674 BEARING SETBEARING SET
-
917341T GUIDE, LifterGUIDE, Lifter
-
1017340T1 LIFTER, RollerLIFTER, Roller
-
11400-8M0060619 CAMSHAFT
STD Rotation (LH)CAMSHAFT
STD Rotation (LH) -
11400-8M0064648 CAMSHAFT
REV Rotation (RH)CAMSHAFT
REV Rotation (RH) -
1217-843378 PIN, DowelPIN, Dowel
-
13811662 RETAINER, Lifter GuideRETAINER, Lifter Guide
-
1410-34500 SCREW, (.312-18 x .625)SCREW, (.312-18 x .625)
-
1522-864669 FITTINGFITTING
-
1687-8M0070108 SWITCH, Oil PressureSWITCH, Oil Pressure
-
178M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
1813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1911-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2071920 VALVE ASSEMBLY, FilterVALVE ASSEMBLY, Filter
-
2110-54786 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2235-866340Q03 FILTER, Oil - Quicksilver BrandFILTER, Oil - Quicksilver Brand
-
2235-866340K01 FILTER, Oil - Mercury BrandFILTER, Oil - Mercury Brand
-
-92-809825 RTV SILICONE, (3 Ounce Tube) Metallic BlueRTV SILICONE, (3 Ounce Tube) Metallic Blue
-
-92-34227Q02 SEALING COMPOUNDSEALING COMPOUND
