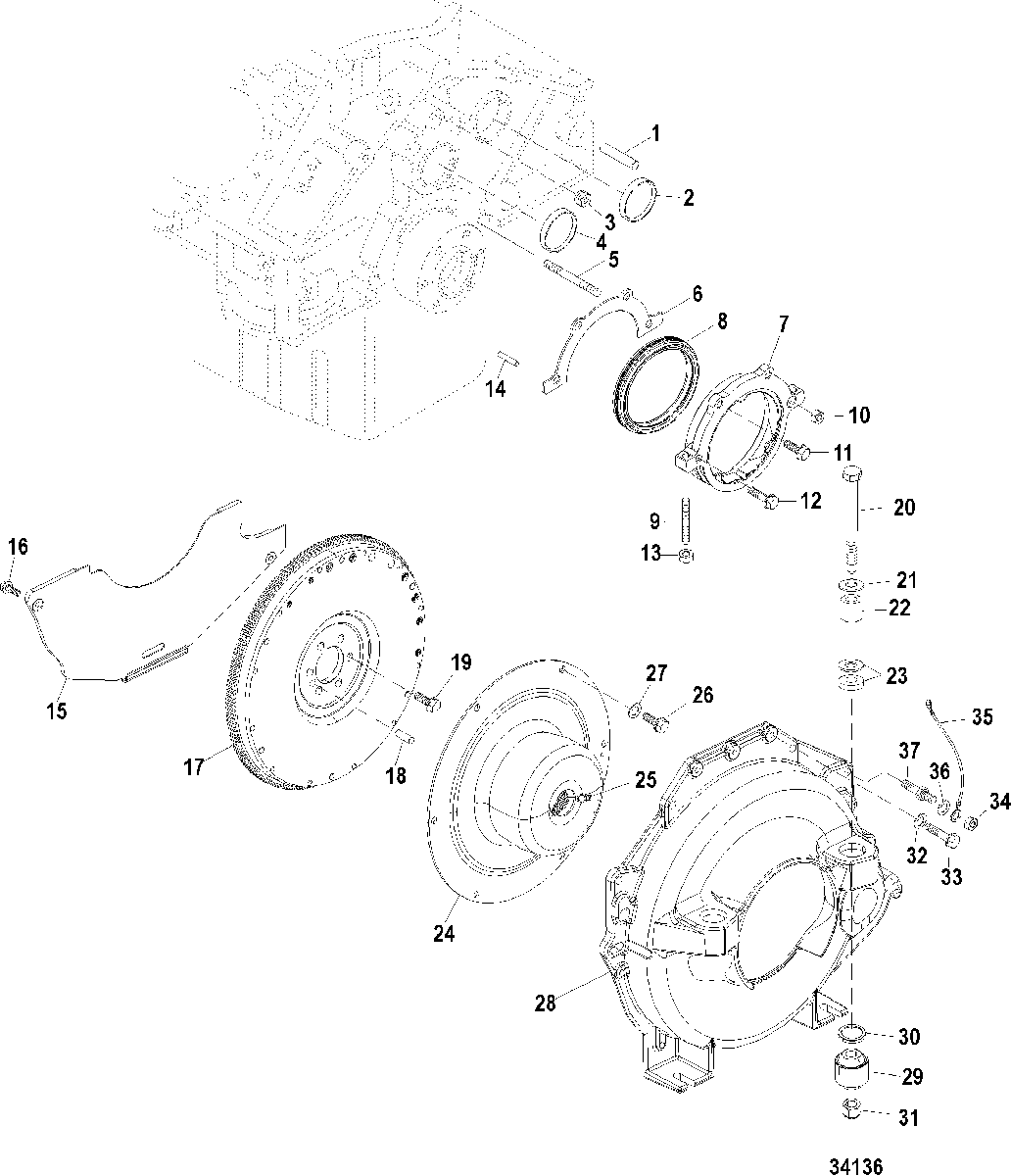

Flywheel Housing для Mercruiser - 383 MAG STROKER BRAVO 1G400000 & Up
-
№АртикулНазвание
-
117-8M0092110 PIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing LocationPIN, Dowel (.6206/.6211 x 1.20), Flywheel Housing Location
-
219-34270 EXPANSION PLUG, (1.625), Engine Core HoleEXPANSION PLUG, (1.625), Engine Core Hole
-
322-32561 PLUG, Pipe - Allen Head (.250-18), Oil GalleyPLUG, Pipe - Allen Head (.250-18), Oil Galley
-
422-72640 PLUG, Expansion, Camshaft Bearing HolePLUG, Expansion, Camshaft Bearing Hole
-
516-14827 STUD, (.250-20 x 2.180)STUD, (.250-20 x 2.180)
-
627-881715 GASKET, Crankshaft Oil Seal HousingGASKET, Crankshaft Oil Seal Housing
-
7852940 HOUSING ASSEMBLY, With Studs, Crankshaft Oil SealHOUSING ASSEMBLY, With Studs, Crankshaft Oil Seal
-
826-852941 SEAL, Crankshaft OilSEAL, Crankshaft Oil
-
916-11989 STUD, (.312-18 x 1.6718)STUD, (.312-18 x 1.6718)
-
1011-8M0098315 NUTNUT
-
1110-14242 BOLT, (.250-20 x .875)BOLT, (.250-20 x .875)
-
1210-8M0064241 BOLTBOLT
-
1311-11971 NUT, (.312-18)NUT, (.312-18)
-
1417-14263 PIN, Dowel, Oil Seal Housing LocatingPIN, Dowel, Oil Seal Housing Locating
-
15807260A2 COVER KIT, FlywheelCOVER KIT, Flywheel
-
NS11-807296 NUT, (.250-20)NUT, (.250-20)
-
1610-76596 SCREW, (.250-20 x 1.250)SCREW, (.250-20 x 1.250)
-
17222-8M0047213 FLYWHEELFLYWHEEL
-
1817-43504 PIN, Dowel, FlywheelPIN, Dowel, Flywheel
-
1910-845757 SCREW, (.437-20 x 1.00)SCREW, (.437-20 x 1.00)
-
2010-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
-
2112-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
2223-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
2312-892619A01 SHIM KITSHIM KIT
-
248M0098795 COUPLER ASSEMBLY, Engine - Short Aluminum HubCOUPLER ASSEMBLY, Engine - Short Aluminum Hub
-
24861523A11 COUPLER ASSEMBLY, Engine
Steel HubCOUPLER ASSEMBLY, Engine
Steel Hub -
2522-49099 FITTINGFITTING
-
2610-863480 SCREW, (.375-16 x 1.125)SCREW, (.375-16 x 1.125)
-
2712-20572 WASHER, (.390 x .750 x .093)WASHER, (.390 x .750 x .093)
-
28865657A04 HOUSING ASSEMBLY, FlywheelHOUSING ASSEMBLY, Flywheel
-
29865330A02 MOUNT KIT, RubberMOUNT KIT, Rubber
-
3023-99322 SPACERSPACER
-
3111-863332 NUT, (.500-20) AluminumNUT, (.500-20) Aluminum
-
3212-20572 WASHER, (.390 x .750 x .093)WASHER, (.390 x .750 x .093)
-
3310-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
3310-32132 SCREW, (.375-16 x 1.750)SCREW, (.375-16 x 1.750)
-
3411-32219 NUT, (.375-16)NUT, (.375-16)
-
3584-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) BlackCABLE ASSEMBLY, Ground (13.00 Inches) Black
-
3613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3716-861316 STUD, (.375-16 x 2.750) SpecialSTUD, (.375-16 x 2.750) Special
-
-27-861246A05 GASKET SETGASKET SET
-
-865108R01 LONGBLOCK ASSEMBLYLONGBLOCK ASSEMBLY
